Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F888 |
| Paso (mm/mil) | 7,00 / 276 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 26.3 |
| Altura sobresaliente (mm) | 18.7 |
| Diámetro del estilo de punta (mm) | 4 |
| Diámetro del casquillo (mm) | 5 |
| Diámetro del collar (mm) | 6.35 |
| Diámetro del anillo de presión (mm) | 6.35 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 90 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Uncoated |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 150 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 1 |
| Recorrido máximo (mm) | 1 |
| Rosca | M6X0,75 |
| Tamaño de herramienta (mm) | 5,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 1 |
| Resistencia de contacto típica (mΩ) | 25 |
| Tipo de interruptor | NO (Normal Open) |
| Recorrido del interruptor (mm) | 0.5 |
| Corriente continua (A) 2 | 5 |
Gráficos
Beschreibung des Produkts

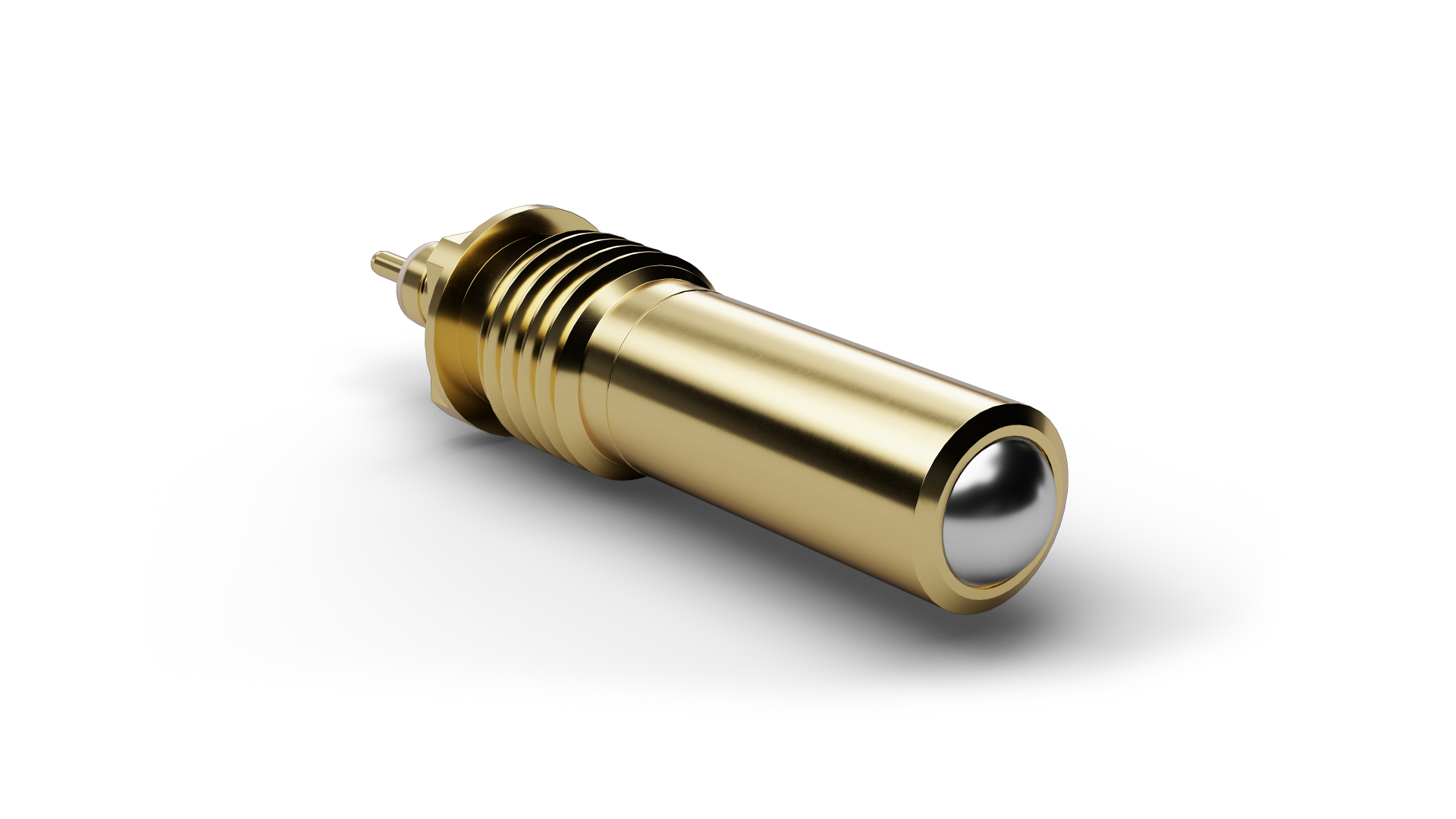

The Ball-Head Switch Probe F88890S1101U200S05 (item number 1009596) combines spring-loaded contacting with a defined switching or sensing function. F88890S1101U200S05 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. F88890S1101U200S05 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For F88890S1101U200S05, spring force is 200 cN at a nominal travel of 1 mm. F88890S1101U200S05 is rated for 1 A continuous current with a typical contact resistance of 25 mΩ. The design combines a pitch of 7 mm / 276 mil with tip style 90 (Rolling ball) and a tip diameter of 4 mm.
