Datos técnicos
| General | |
|---|---|
| Tipo/Familia | HC200 |
| Temperatura | -45°C...+200°C |
| Definición adicional | D |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 46.9 |
| Altura sobresaliente (mm) | 24 |
| Diámetro del estilo de punta (mm) | 20 |
| Diámetro del casquillo (mm) | 22 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Plastic |
| Recubrimiento del casquillo | Uncoated |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 3500 |
| Fuerza del resorte (cN) | 7000 |
| Recorrido nominal (mm) | 5.6 |
| Recorrido máximo (mm) | 7 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 300 |
| Resistencia de contacto típica (mΩ) | 0.2 |

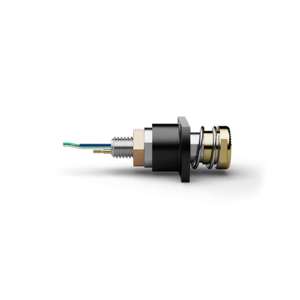

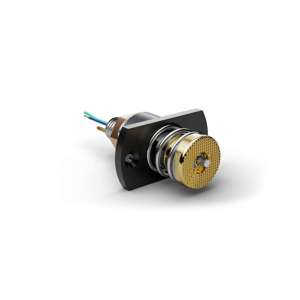

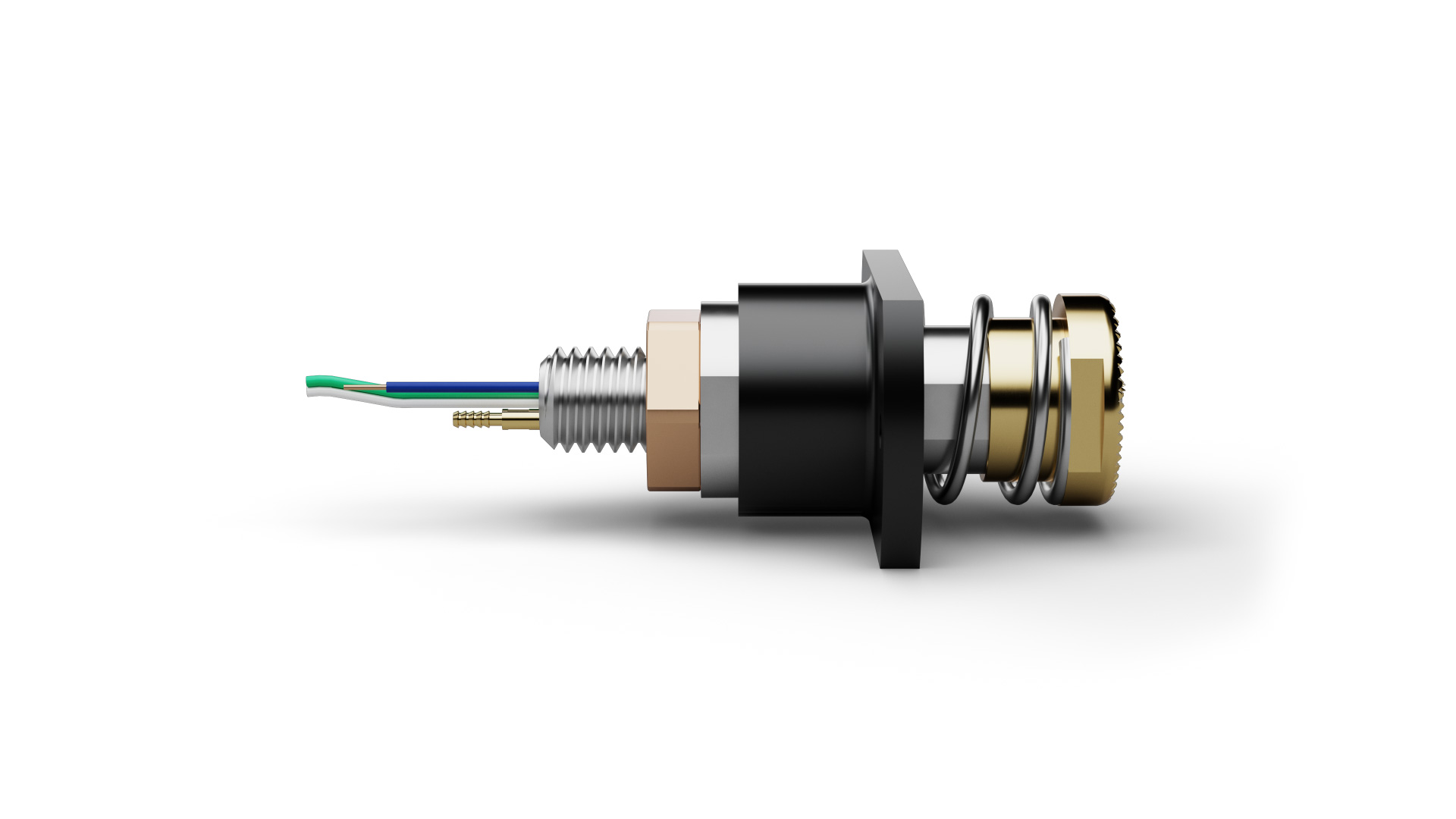

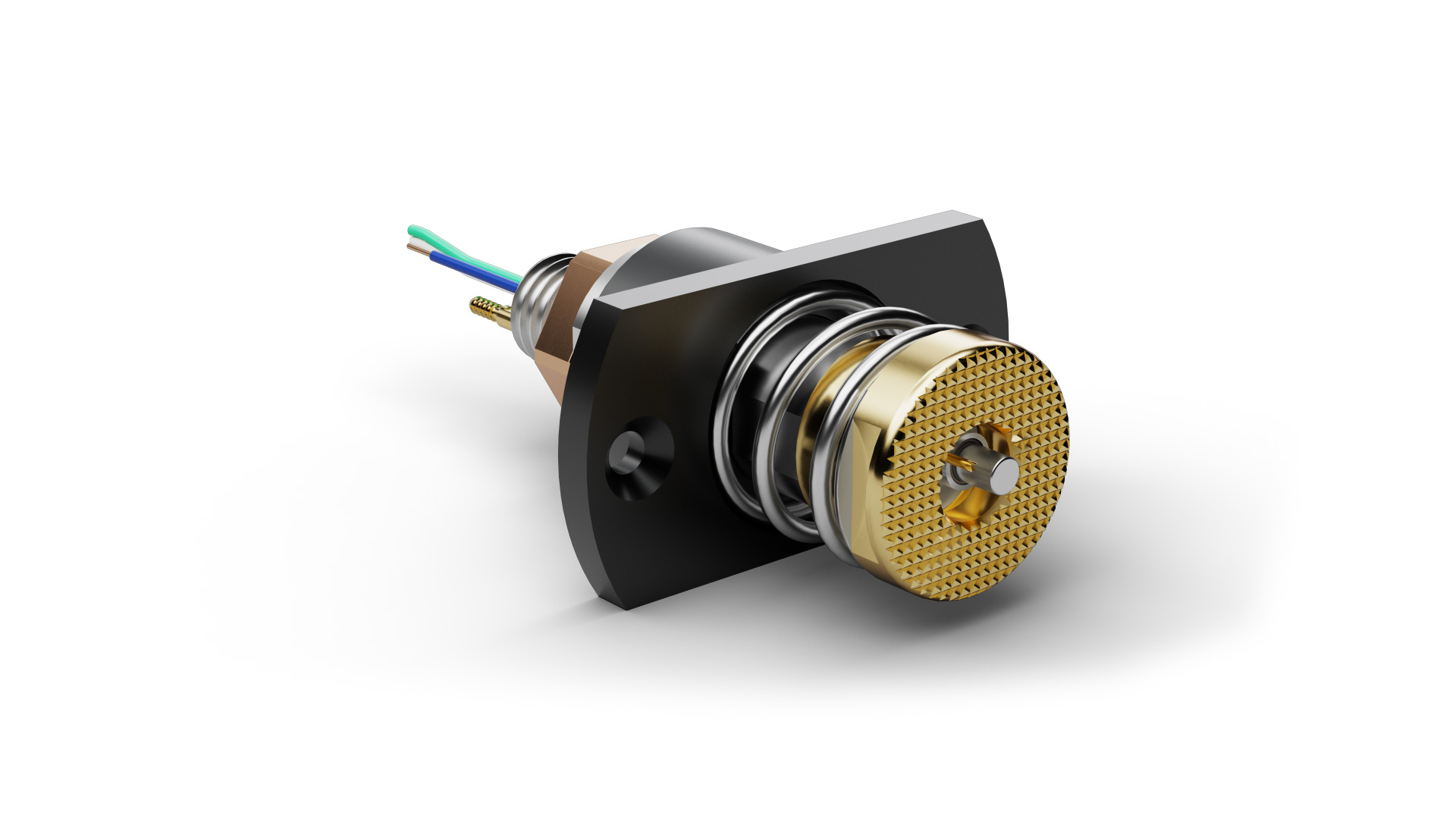

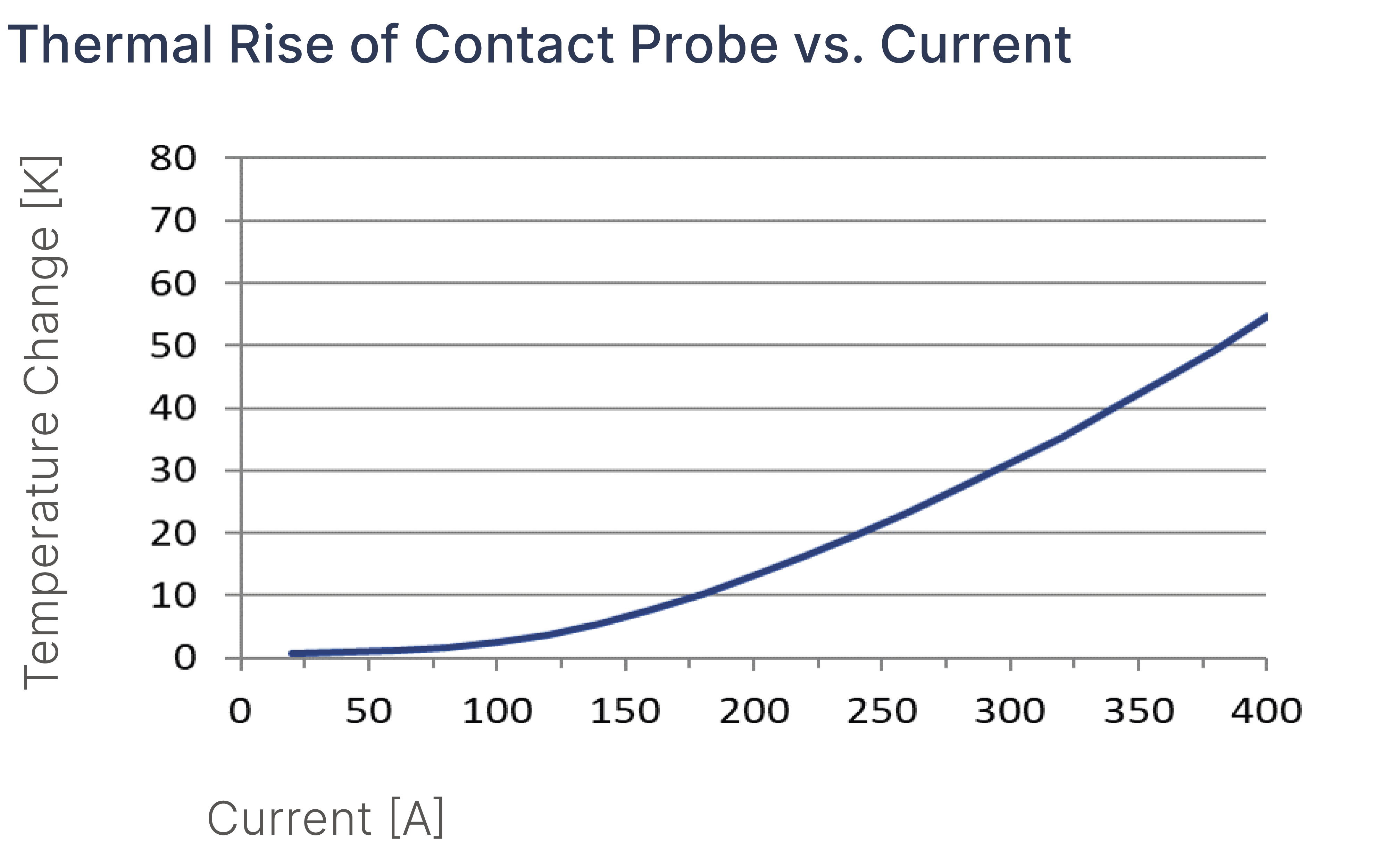

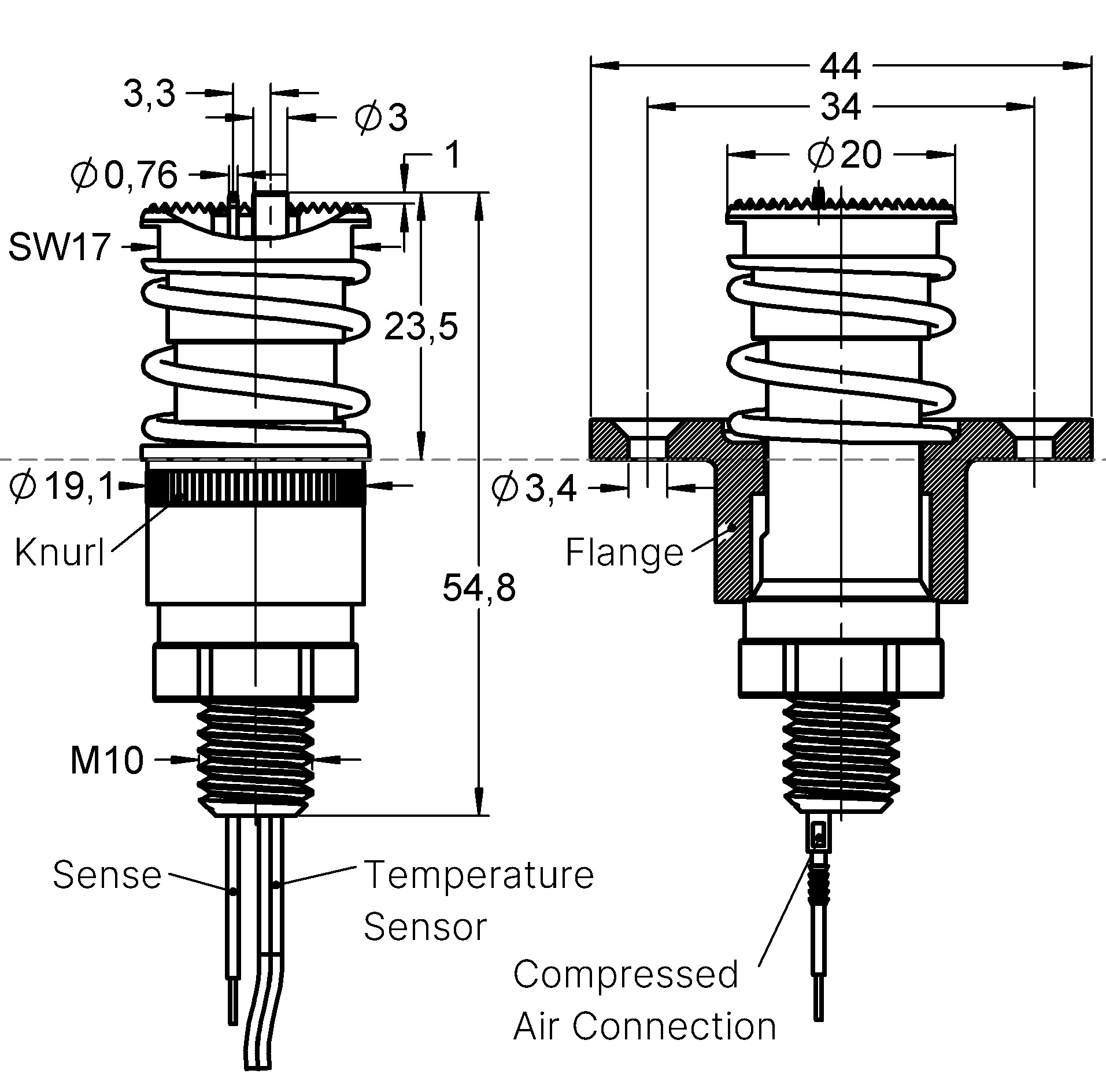

Gráficos
Beschreibung des Produkts
The High Current Probe HC200D06G73TYPKF (item number 1125169) is designed for safe transmission of high electrical currents in test and contacting applications. HC200D06G73TYPKF focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HC200D06G73TYPKF, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HC200D06G73TYPKF includes battery contacting. HC200D06G73TYPKF is rated for 300 A continuous current with a typical contact resistance of 0.2 mΩ. HC200D06G73TYPKF operates with 7000 cN spring force and 5.6 mm nominal travel.
