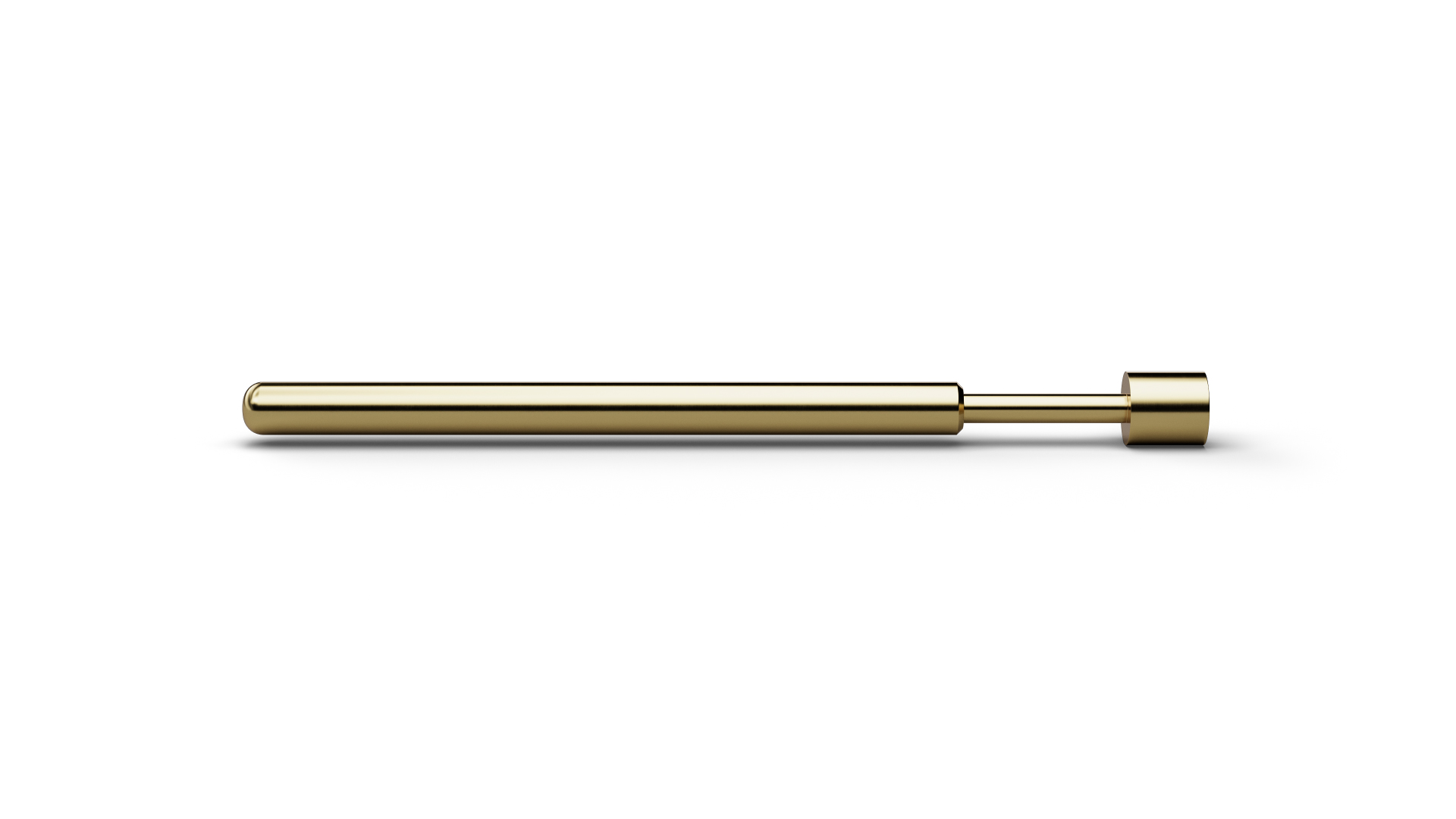

The Basic Contact Probe F56205S190L150 (item number 1001346) is a spring-loaded probe for temporary electrical contact with test points. With tip style 05 (Concave stepped), F56205S190L150 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F56205S190L150 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.9 mm. For F56205S190L150, spring force is 150 cN at a nominal travel of 2.7 mm. F56205S190L150 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56205S190L150 is made of steel and uses Longtime Gold plating.
