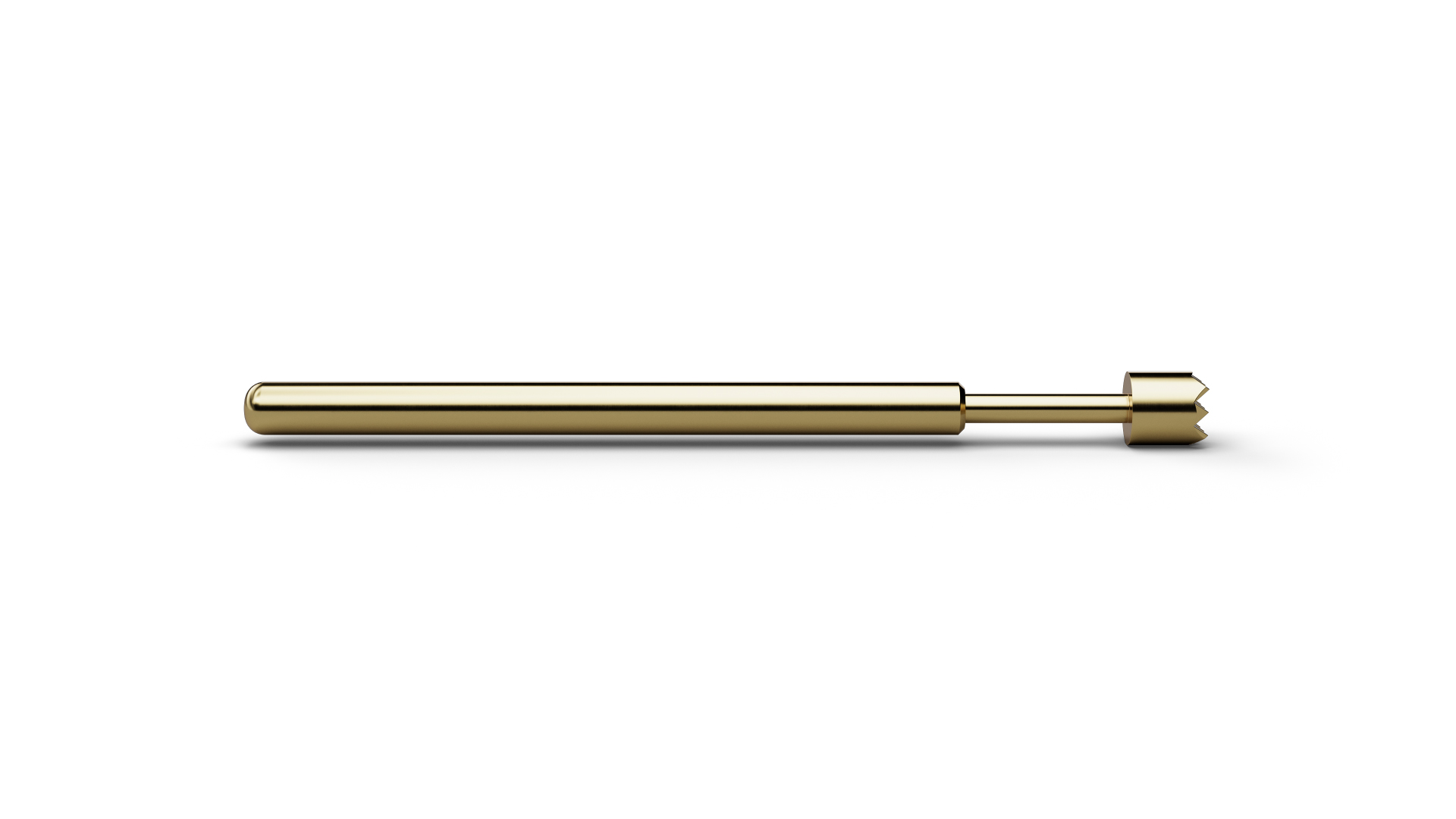

The Basic Contact Probe F56206B190G100 (item number 1001348) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F56206B190G100 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56206B190G100 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.9 mm. For F56206B190G100, spring force is 100 cN at a nominal travel of 2.7 mm. F56206B190G100 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56206B190G100 is made of beryllium copper and is gold-plated.
