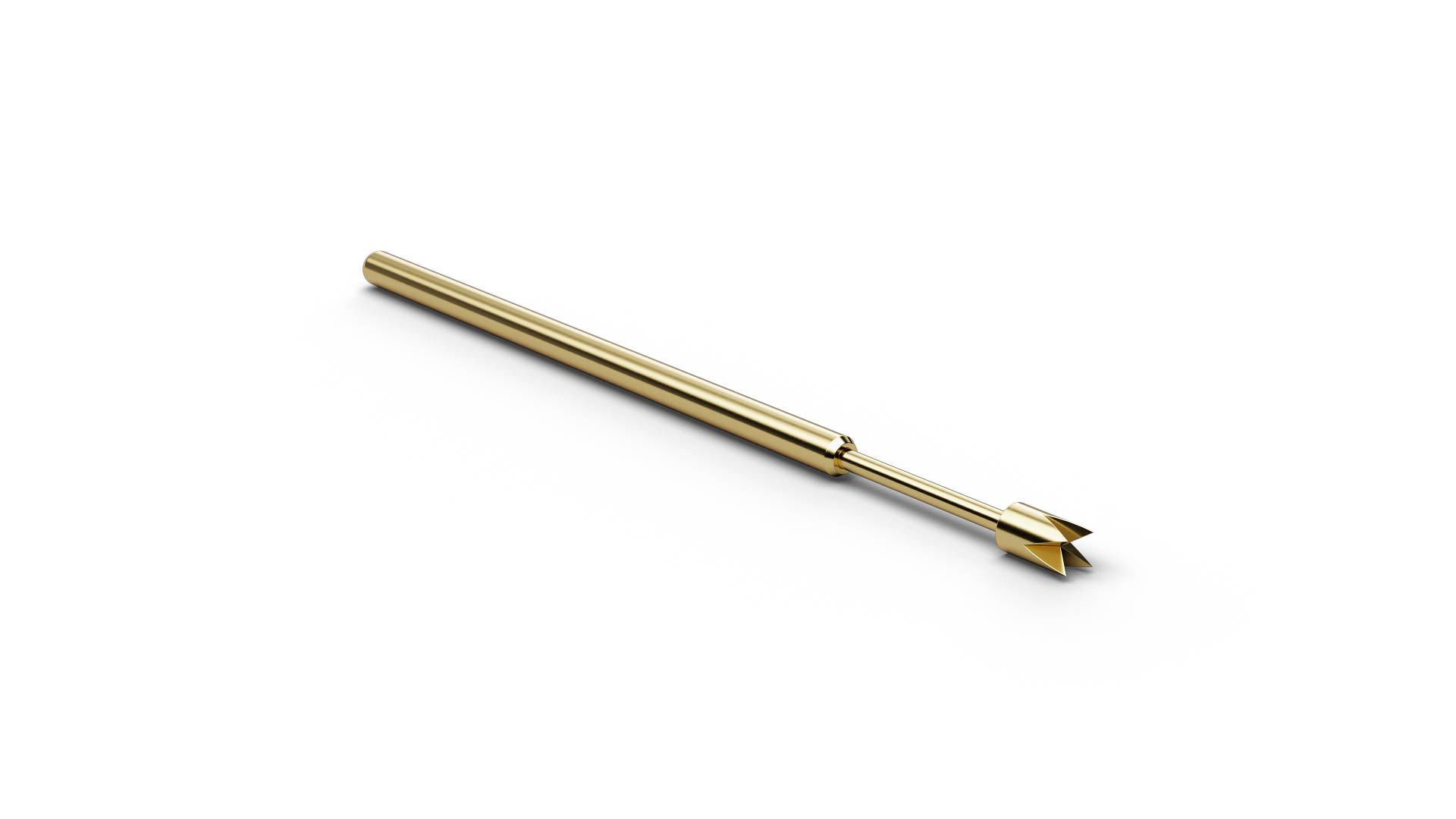

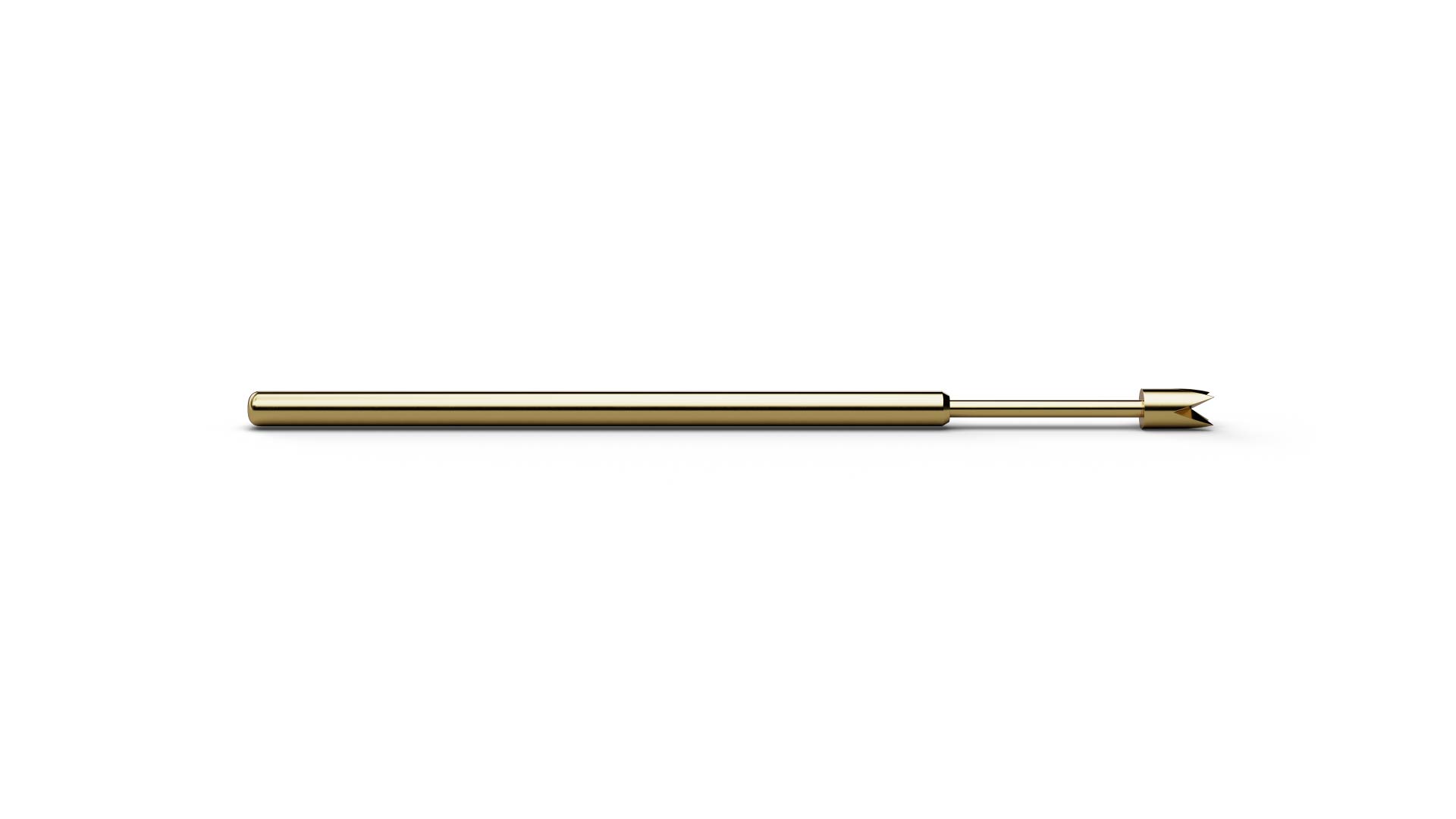

As a Basic Contact Probe, F70114S115L150 (item number 1001493) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F70114S115L150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. The design combines a pitch of 1.9 mm / 75 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.15 mm. For F70114S115L150, spring force is 150 cN at a nominal travel of 4 mm. The electrical rating of F70114S115L150 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F70114S115L150 is made of steel and uses Longtime Gold plating.
