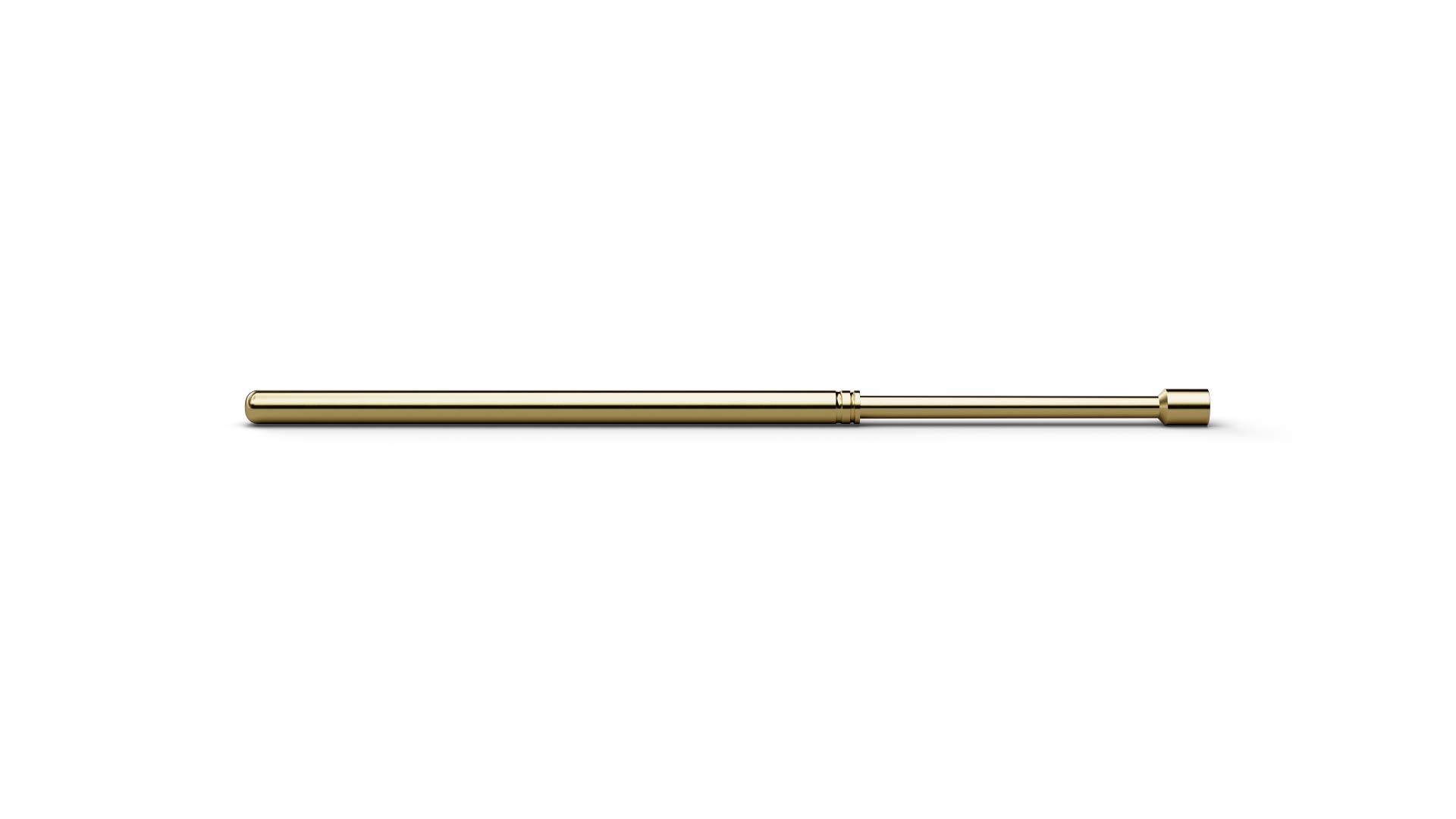

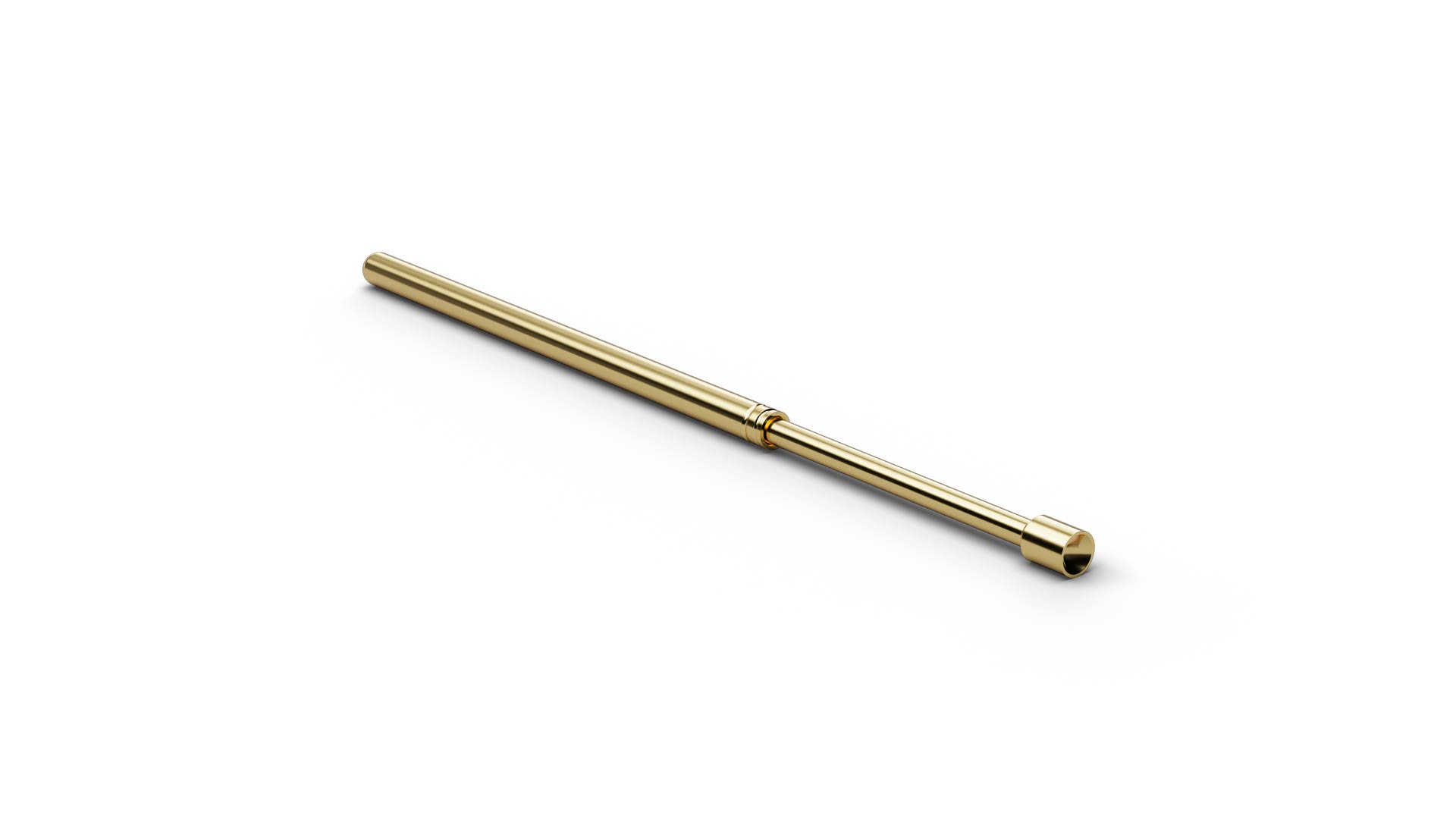

F58805B150G180 (item number 1001507) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F58805B150G180 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F58805B150G180 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.5 mm. For F58805B150G180, spring force is 180 cN at a nominal travel of 9.3 mm. F58805B150G180 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58805B150G180 is made of beryllium copper and is gold-plated.
