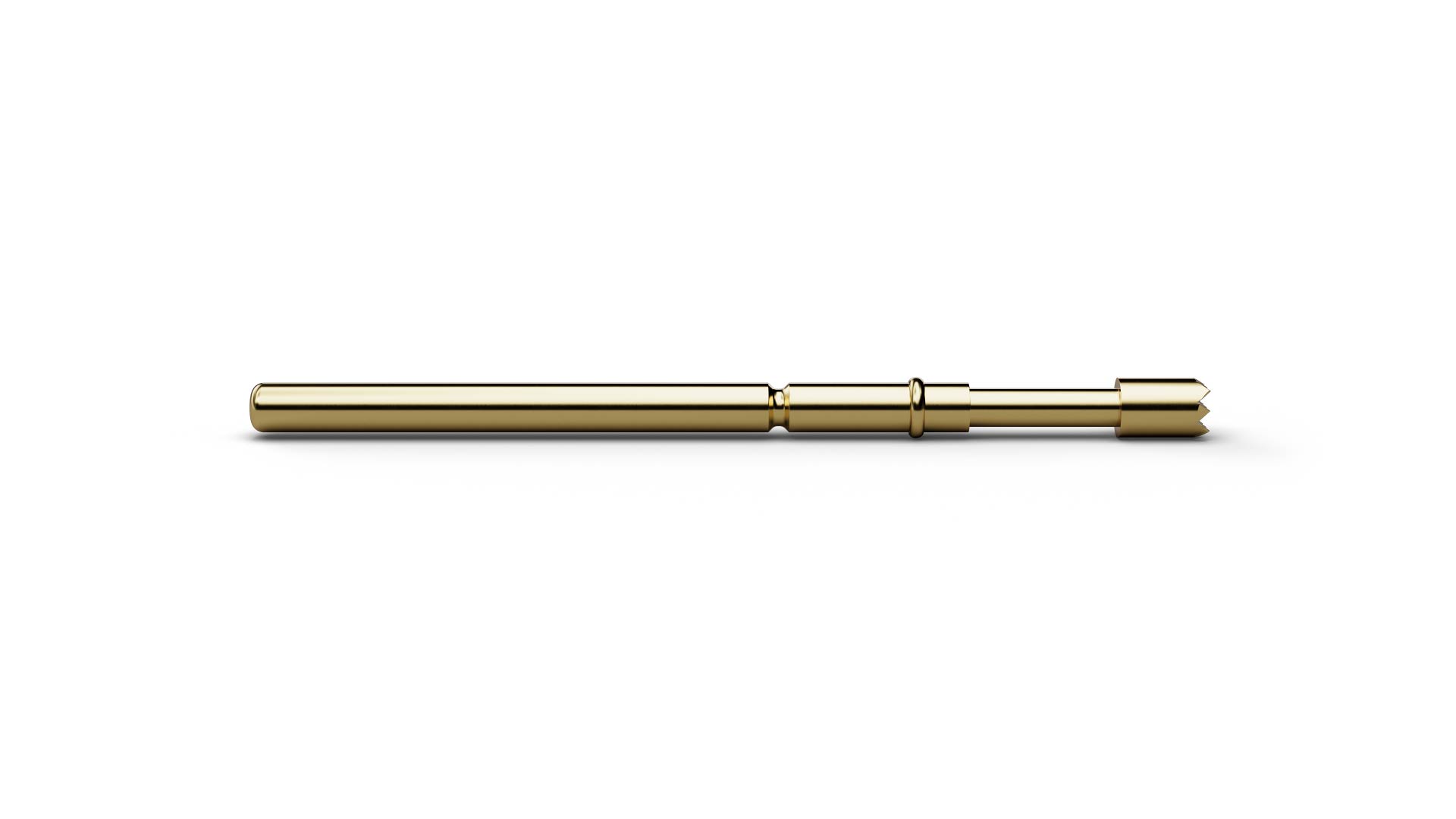

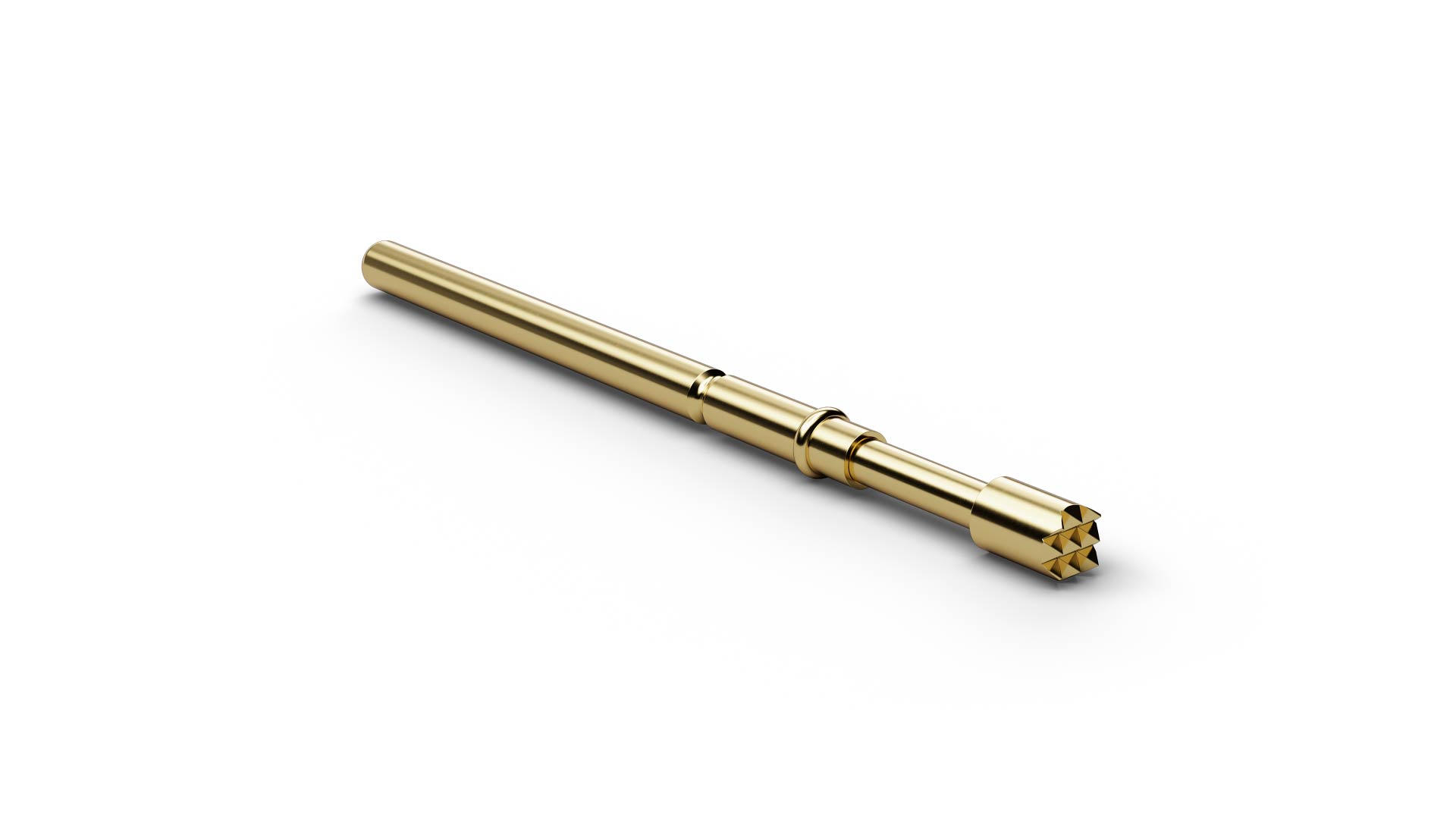

F77206B200G300 (item number 1001624) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 06 (Serrated stepped), F77206B200G300 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77206B200G300 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm. For F77206B200G300, spring force is 300 cN at a nominal travel of 4 mm. The electrical rating of F77206B200G300 combines 5 A continuous current with 25 mΩ typical contact resistance. The plunger in F77206B200G300 is made of beryllium copper and is gold-plated.
