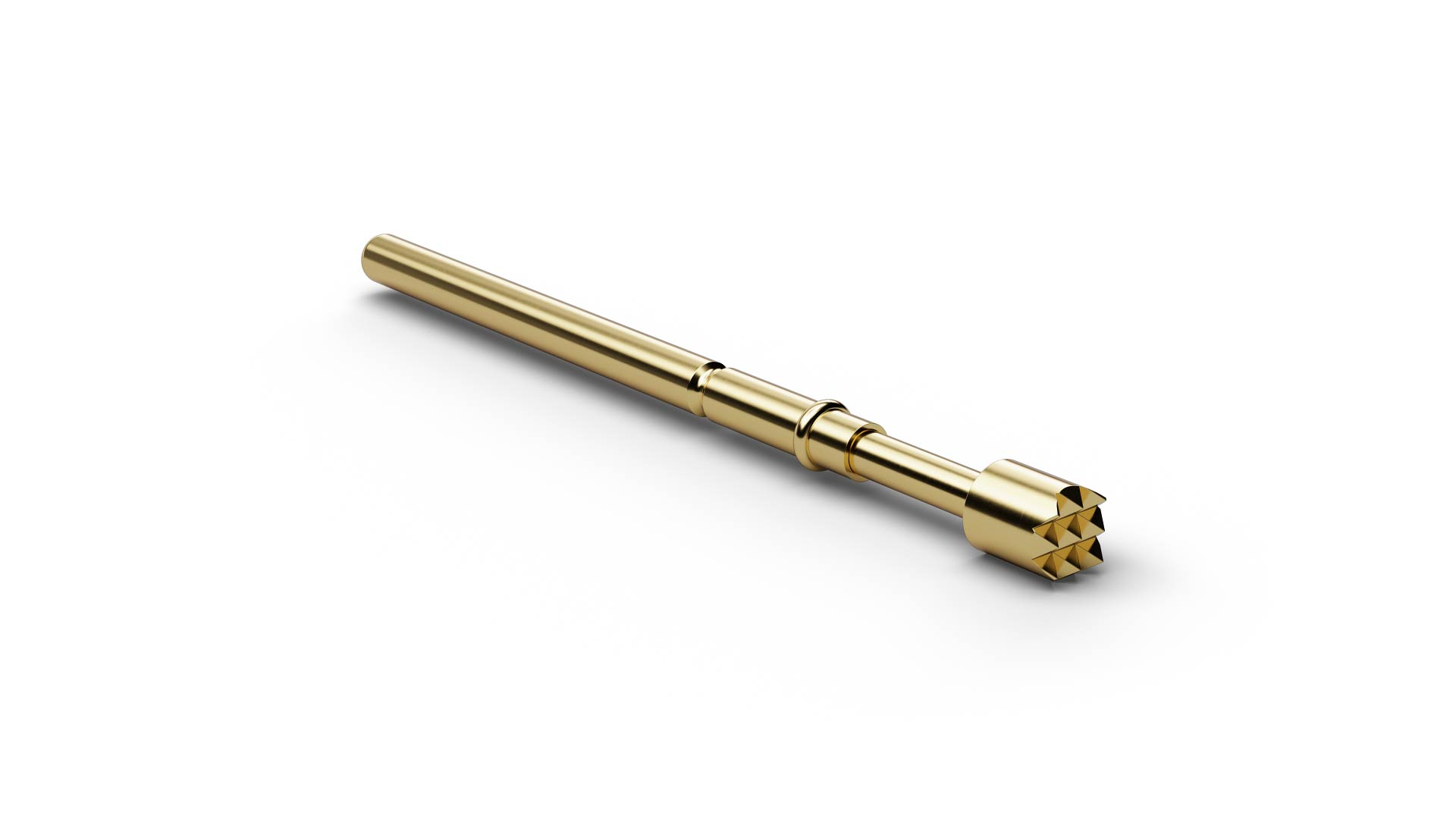

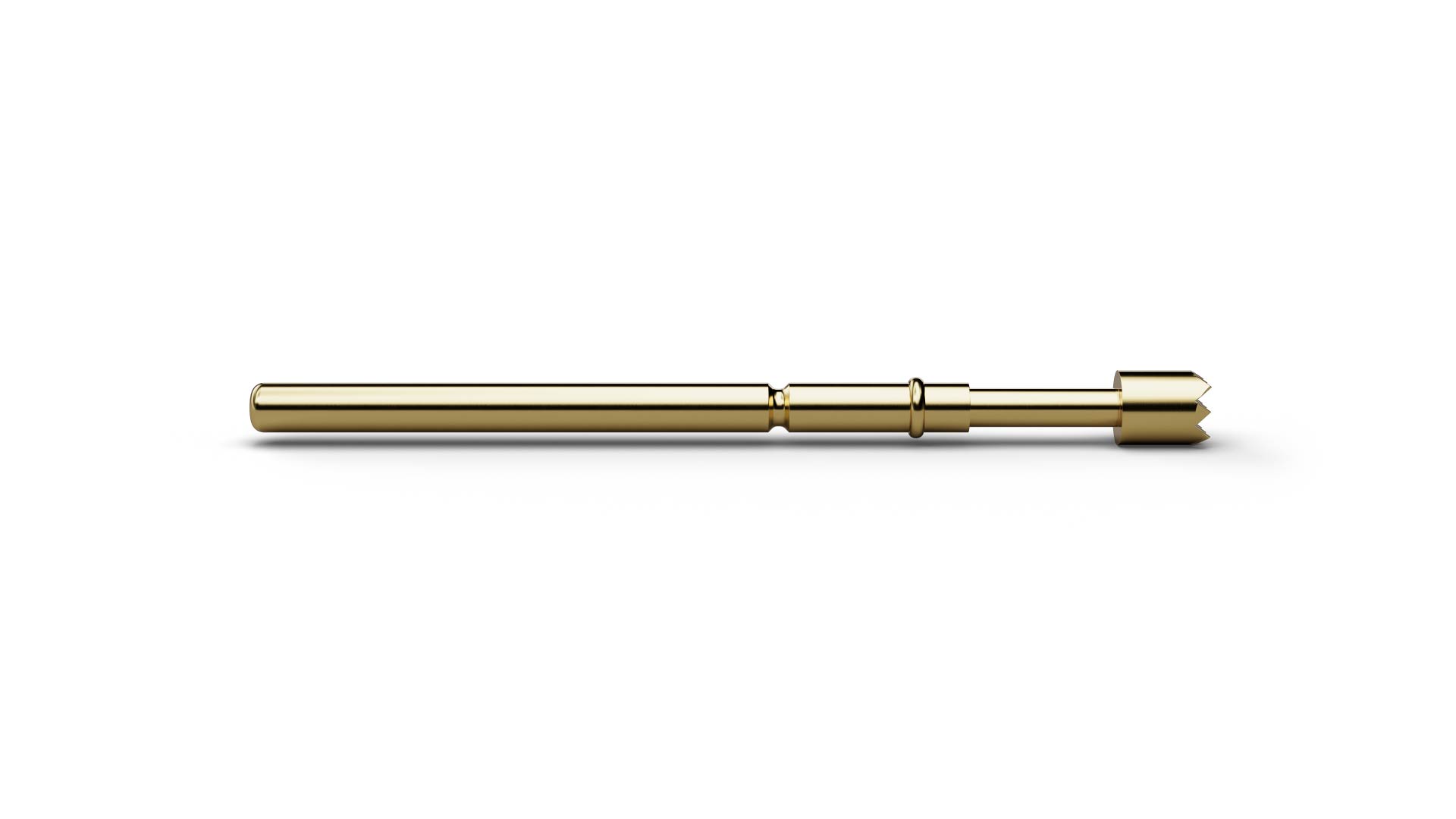

The Basic Contact Probe F77206B250G300 (item number 1001627) is a spring-loaded probe for temporary electrical contact with test points. With tip style 06 (Serrated stepped), F77206B250G300 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77206B250G300 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. For F77206B250G300, spring force is 300 cN at a nominal travel of 4 mm. F77206B250G300 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77206B250G300 is made of beryllium copper and is gold-plated.
