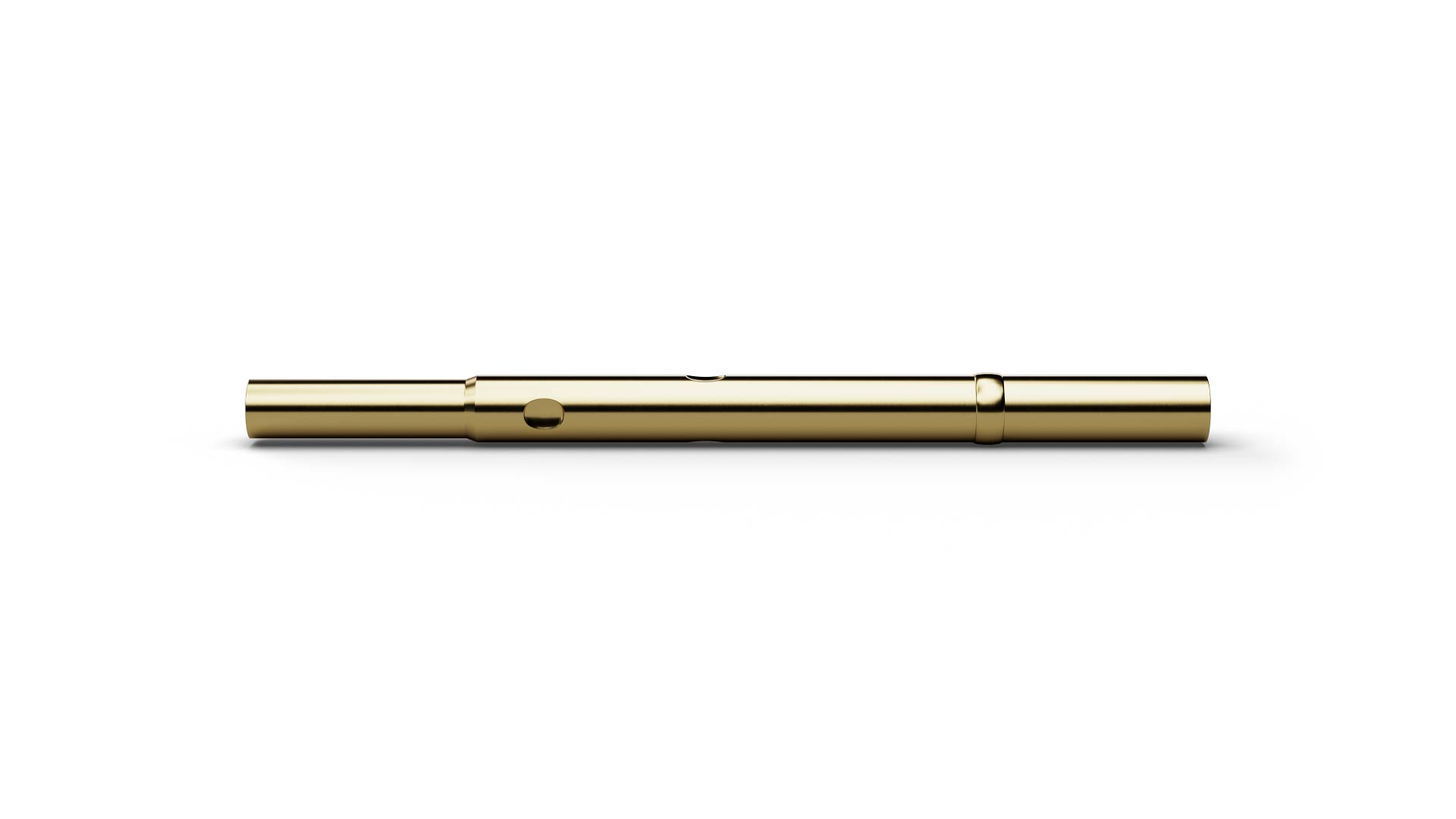

H502CR (item number 1001699) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H502CR guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 2.54 mm / 100 mil, outside diameter 1.68 mm, length 23.9 mm, connection type Crimp Connection. When selecting H502CR, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
