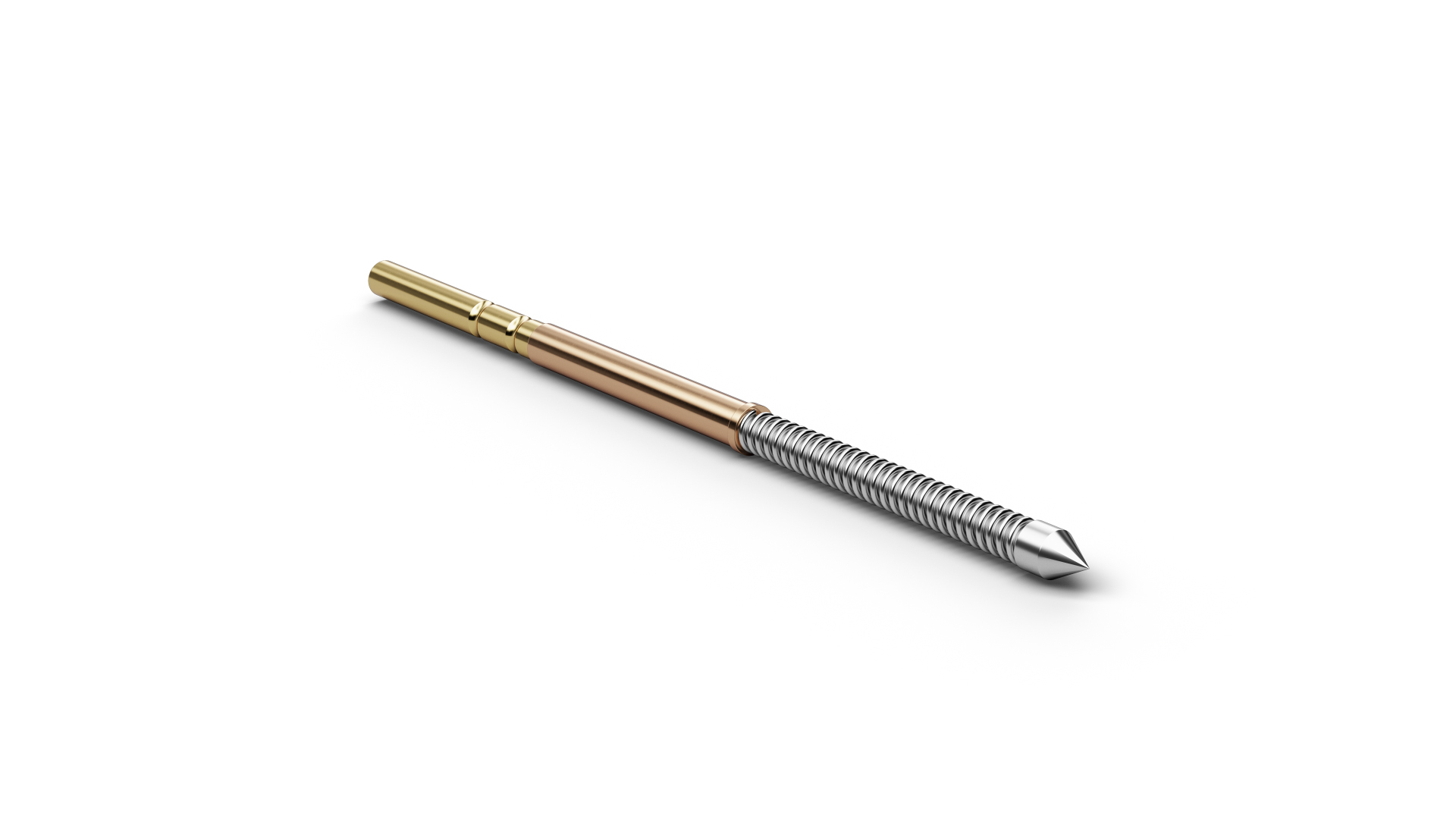

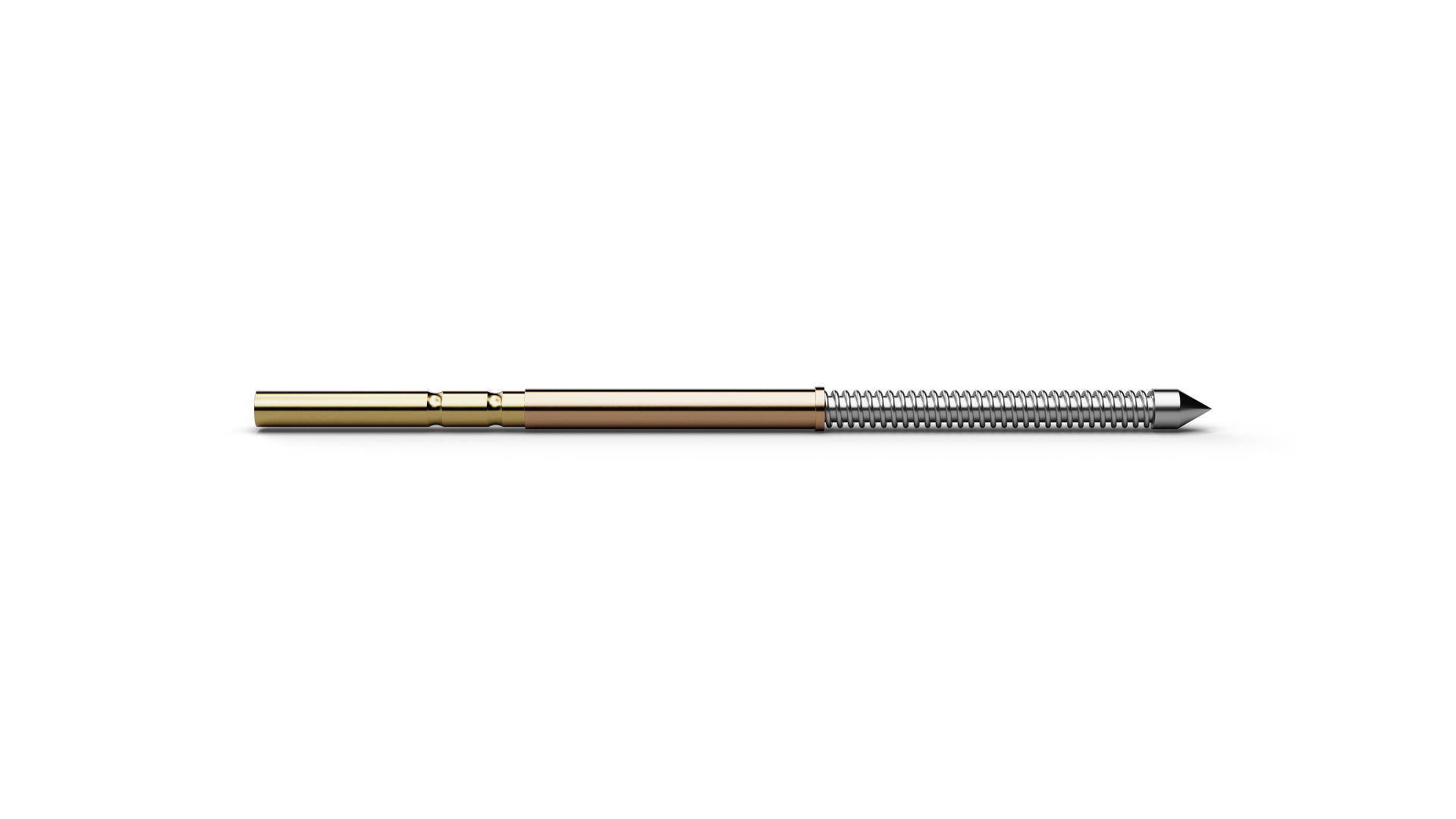

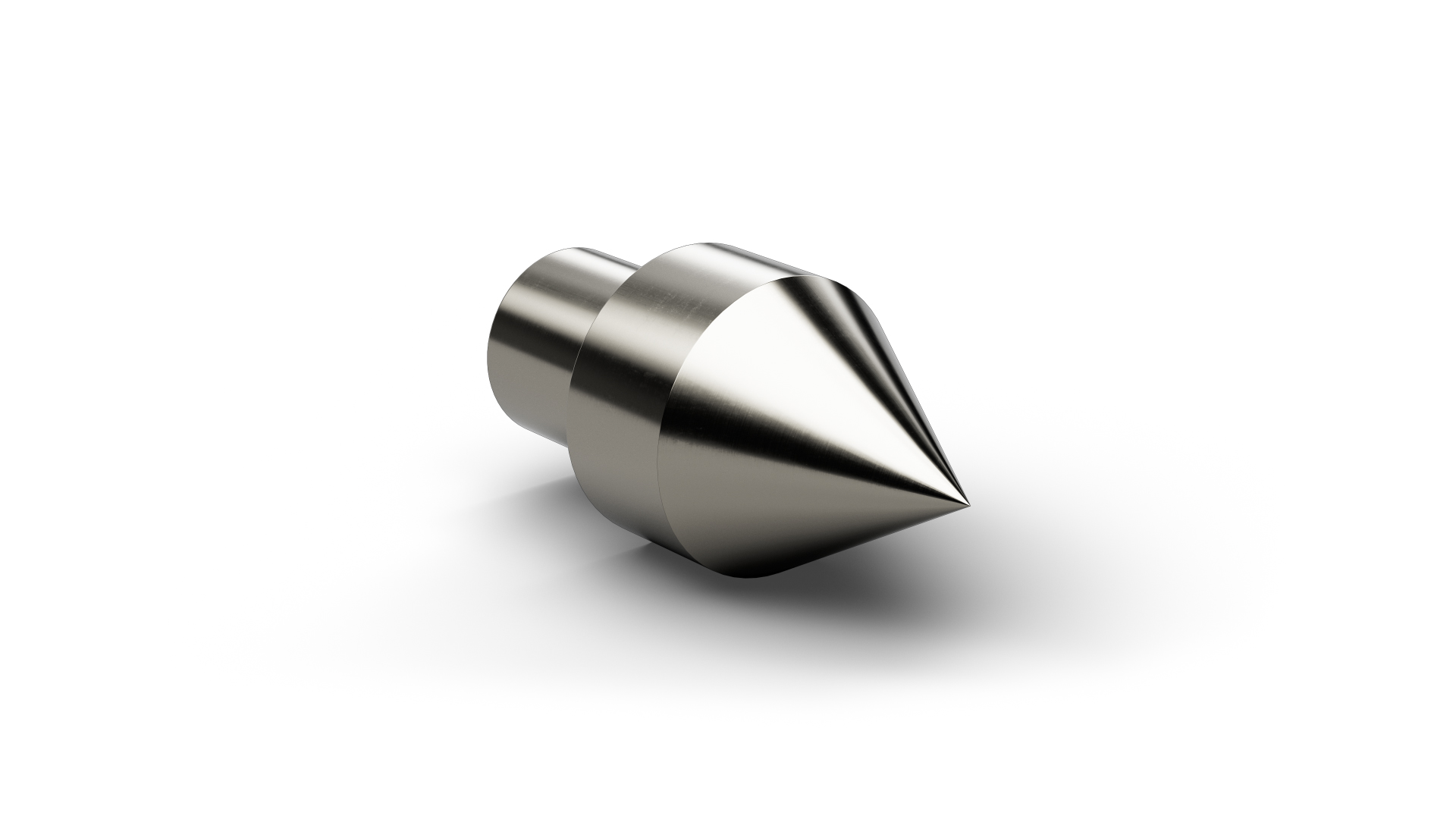

For power-intensive contacting, HCF32004S135N130 (item number 1003496) provides a spring-loaded high-current path within the test setup. HCF32004S135N130 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF32004S135N130, current capacity, low contact resistance and defined contact force are key to limiting electrical losses and unwanted heating. The design combines a pitch of 2.54 mm / 100 mil with tip style 04 (Conical 60° stepped) and a tip diameter of 1.35 mm. For HCF32004S135N130, spring force is 130 cN at a nominal travel of 3.2 mm. The continuous-current rating of HCF32004S135N130 is 12 A.
