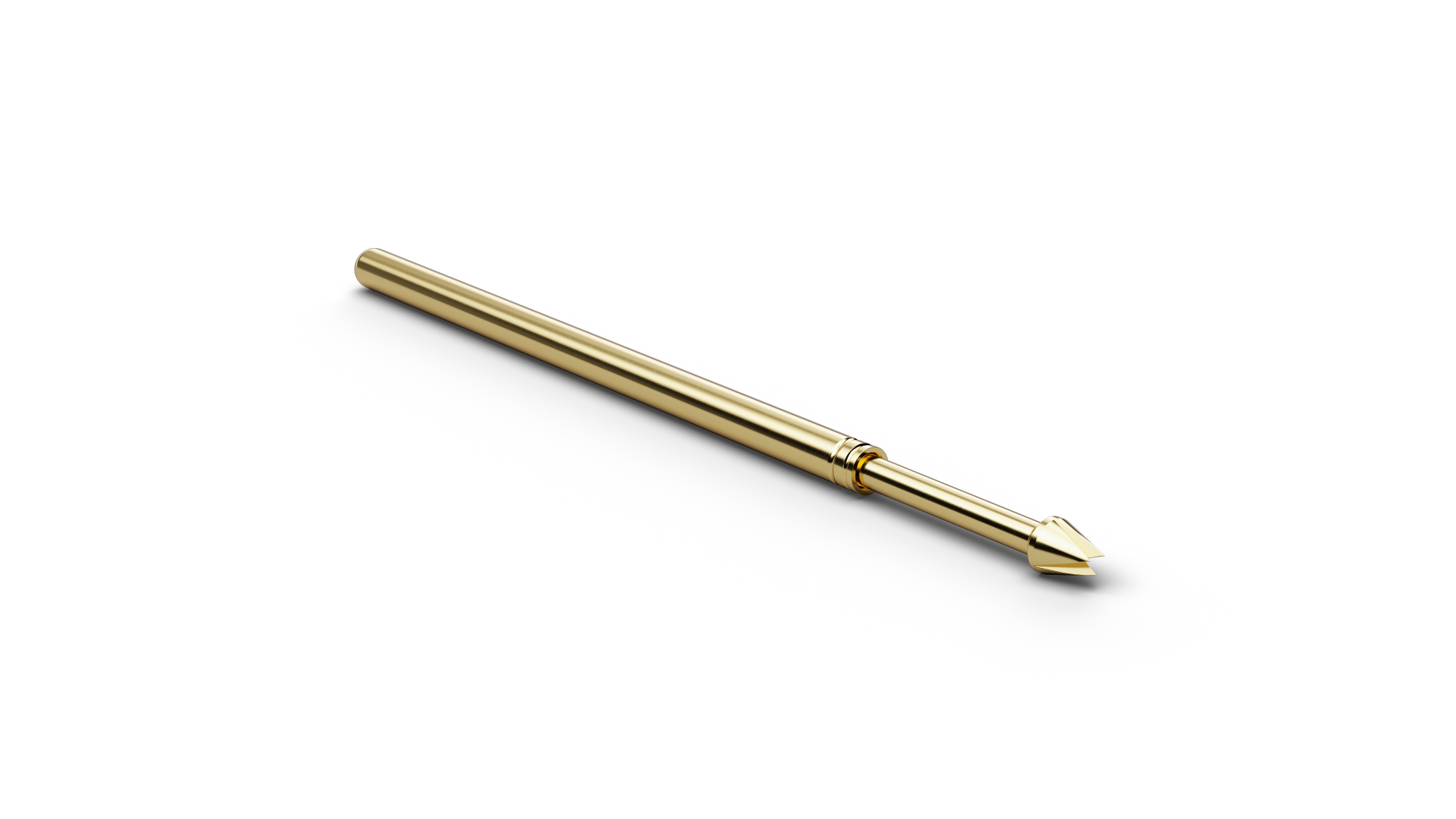

F10035S150L200 (item number 1004187) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 35 (3-point crown stepped (self-cleaning)), F10035S150L200 combines ICT/FCT use with a geometry intended for solder pads and vias. F10035S150L200 combines a pitch of 2.54 mm / 100 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10035S150L200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F10035S150L200 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10035S150L200 is made of steel and uses Longtime Gold plating.
