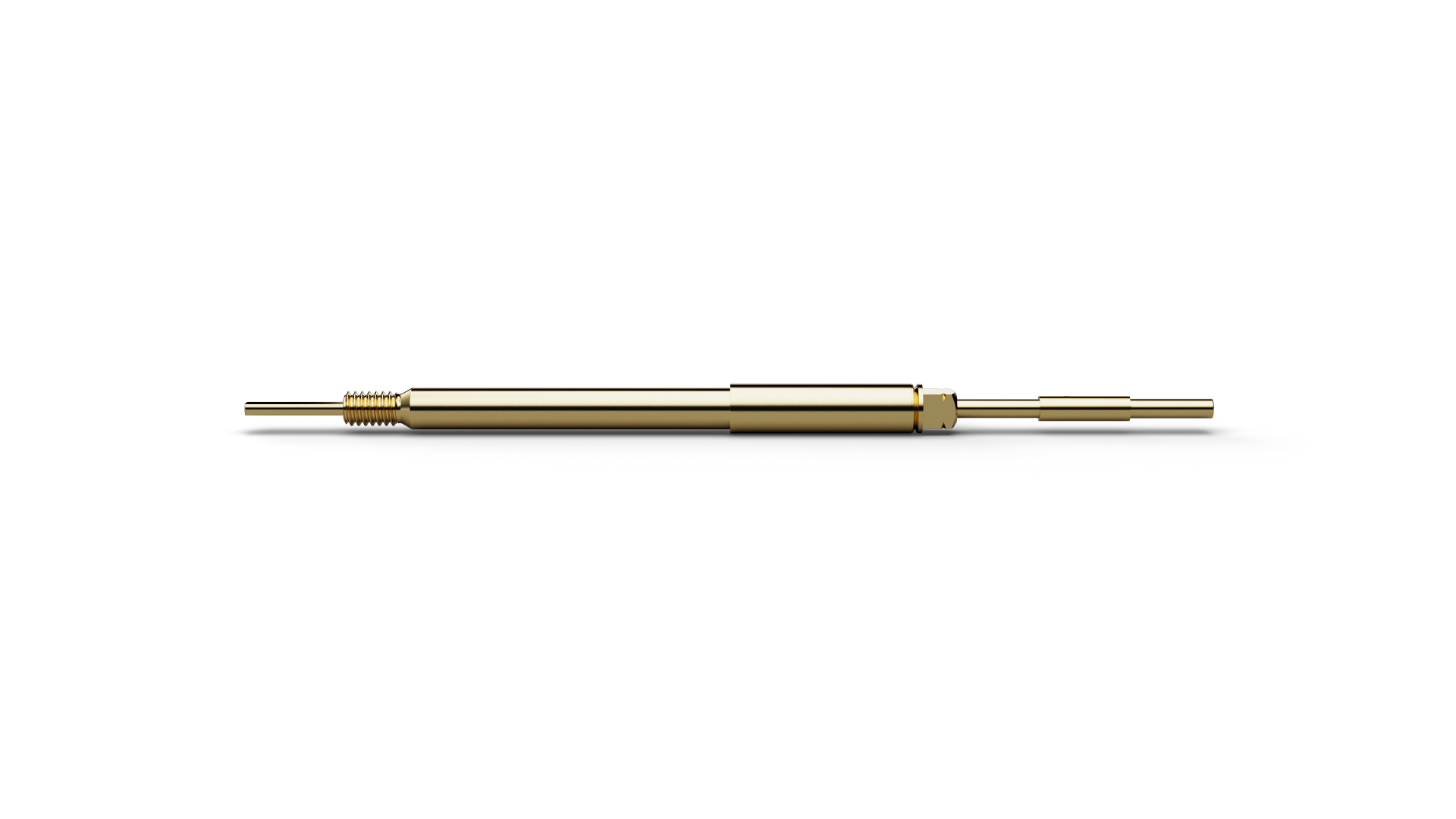

The Push Back Probe VF416B140G15 (item number 1005225) is designed to verify that terminals are correctly locked in connector housings. VF416B140G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF416B140G15, spring force is 1500 cN at a nominal travel of 5 mm. Pointing accuracy for VF416B140G15 is specified as ±0.1 mm. The electrical rating of VF416B140G15 combines 10 A continuous current with 30 mΩ typical contact resistance. For installation, VF416B140G15 uses an M2.5 x 0.35 thread.
