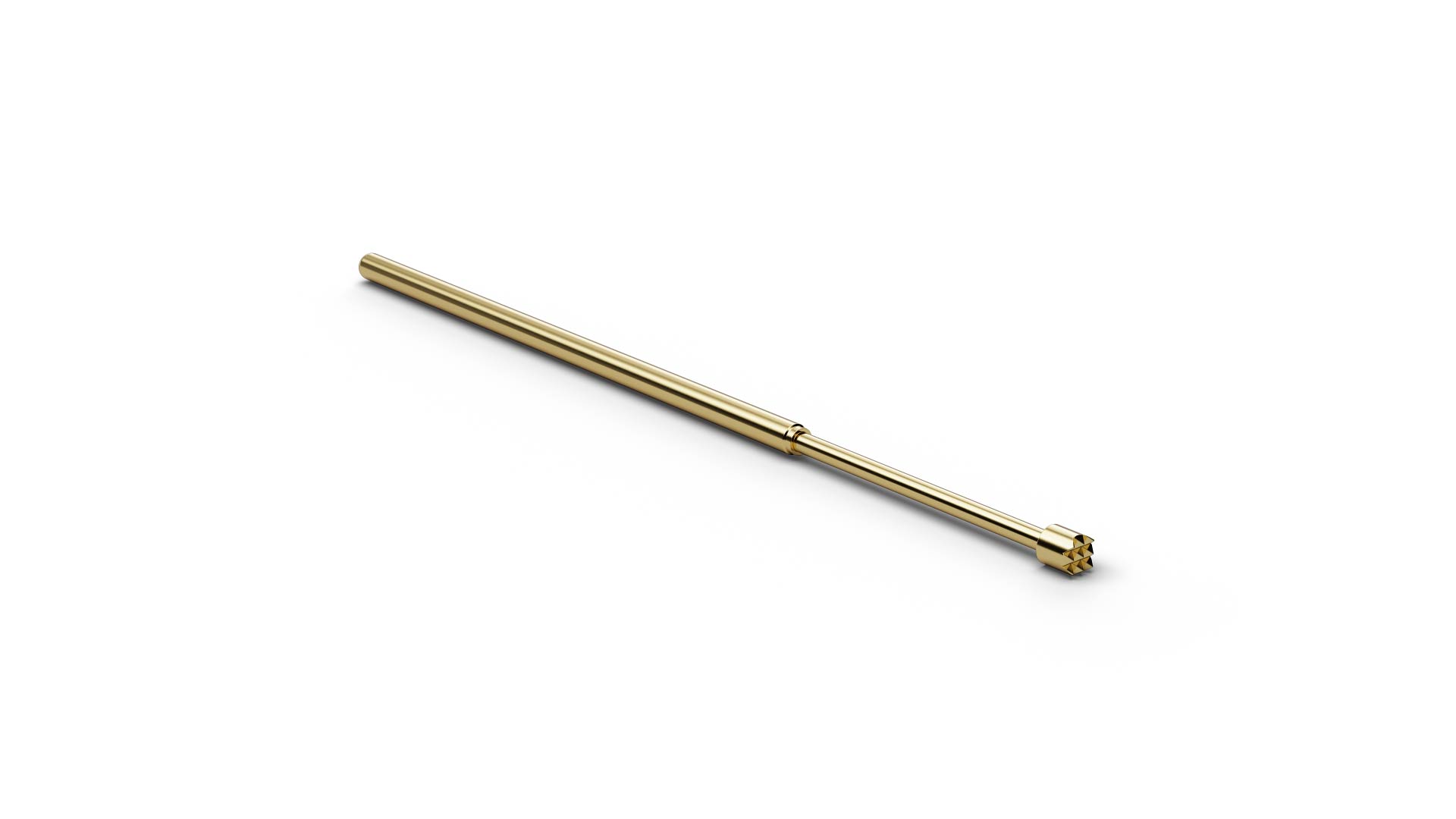

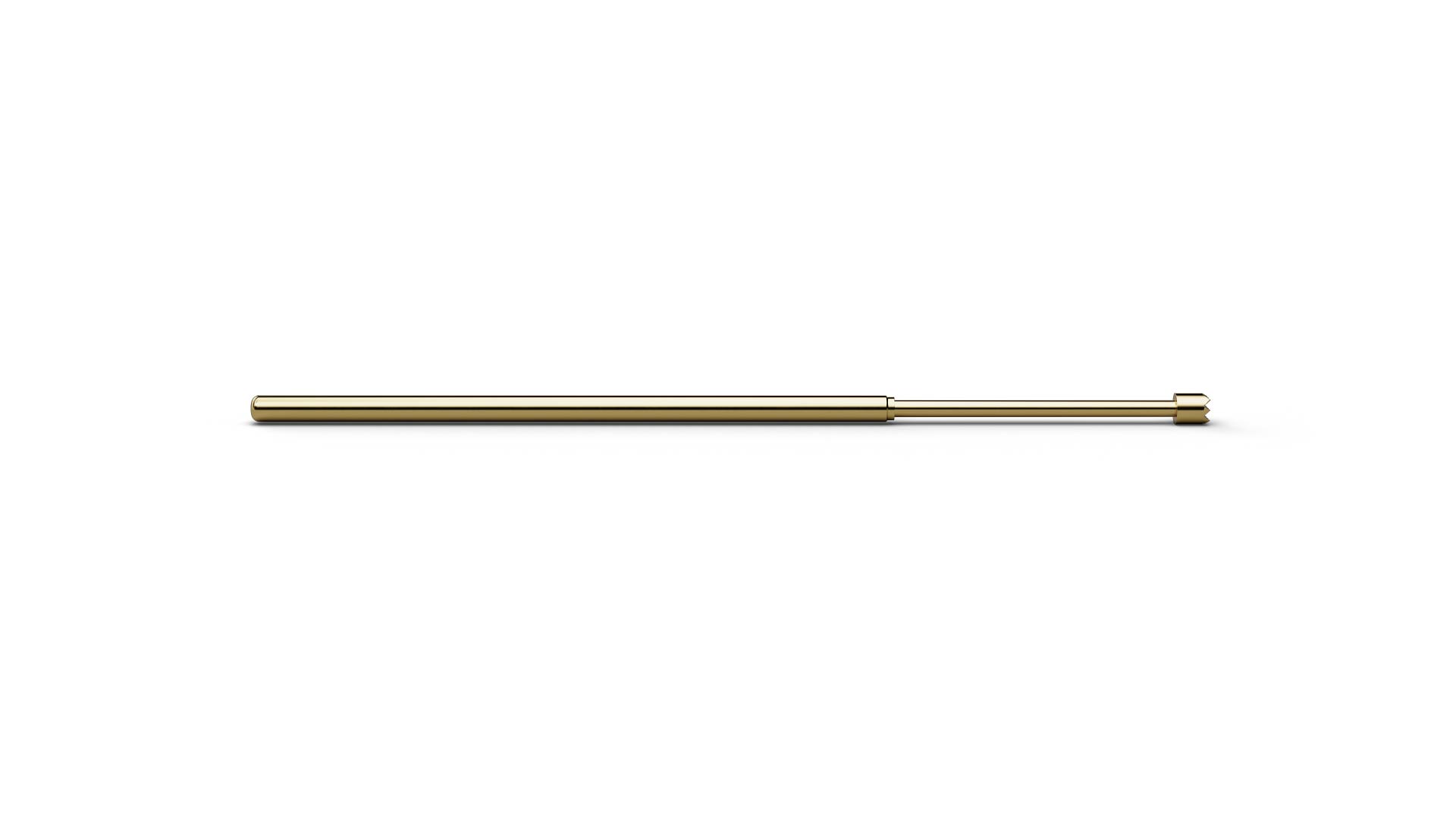

As a Basic Contact Probe, F79306B120G120 (item number 1006533) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F79306B120G120 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F79306B120G120 combines a pitch of 1.9 mm / 75 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.2 mm. F79306B120G120 operates with 120 cN spring force and 8 mm nominal travel. F79306B120G120 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F79306B120G120 is made of beryllium copper and is gold-plated.
