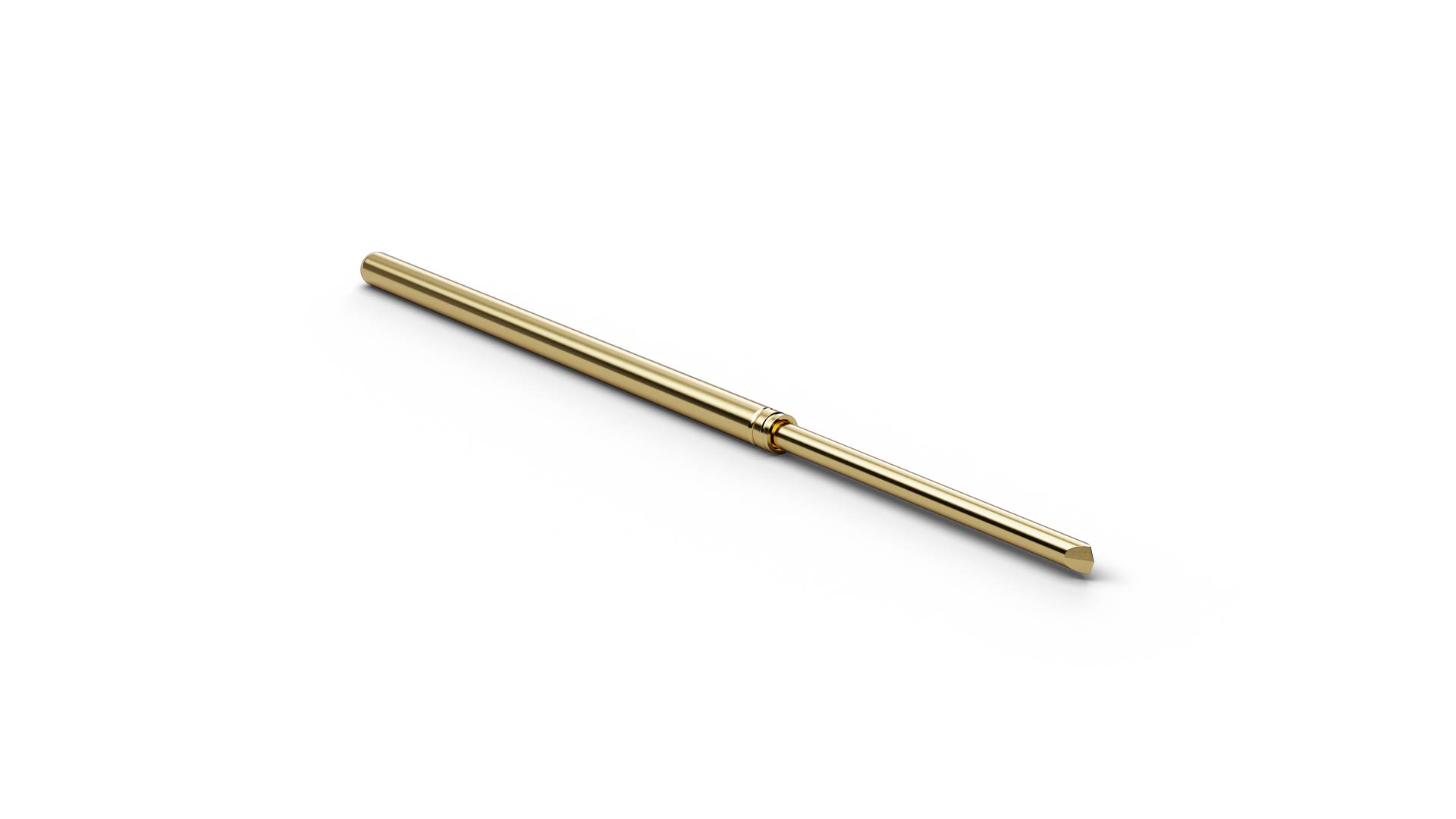

The Basic Contact Probe F58838S090L180 (item number 1007182) is a spring-loaded probe for temporary electrical contact with test points. With tip style 38 (Square lance 140°), F58838S090L180 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F58838S090L180 combines a pitch of 2.54 mm / 100 mil with tip style 38 (Square lance 140°) and a tip diameter of 0.9 mm. F58838S090L180 operates with 180 cN spring force and 9.3 mm nominal travel. F58838S090L180 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58838S090L180 is made of steel and uses Longtime Gold plating.
