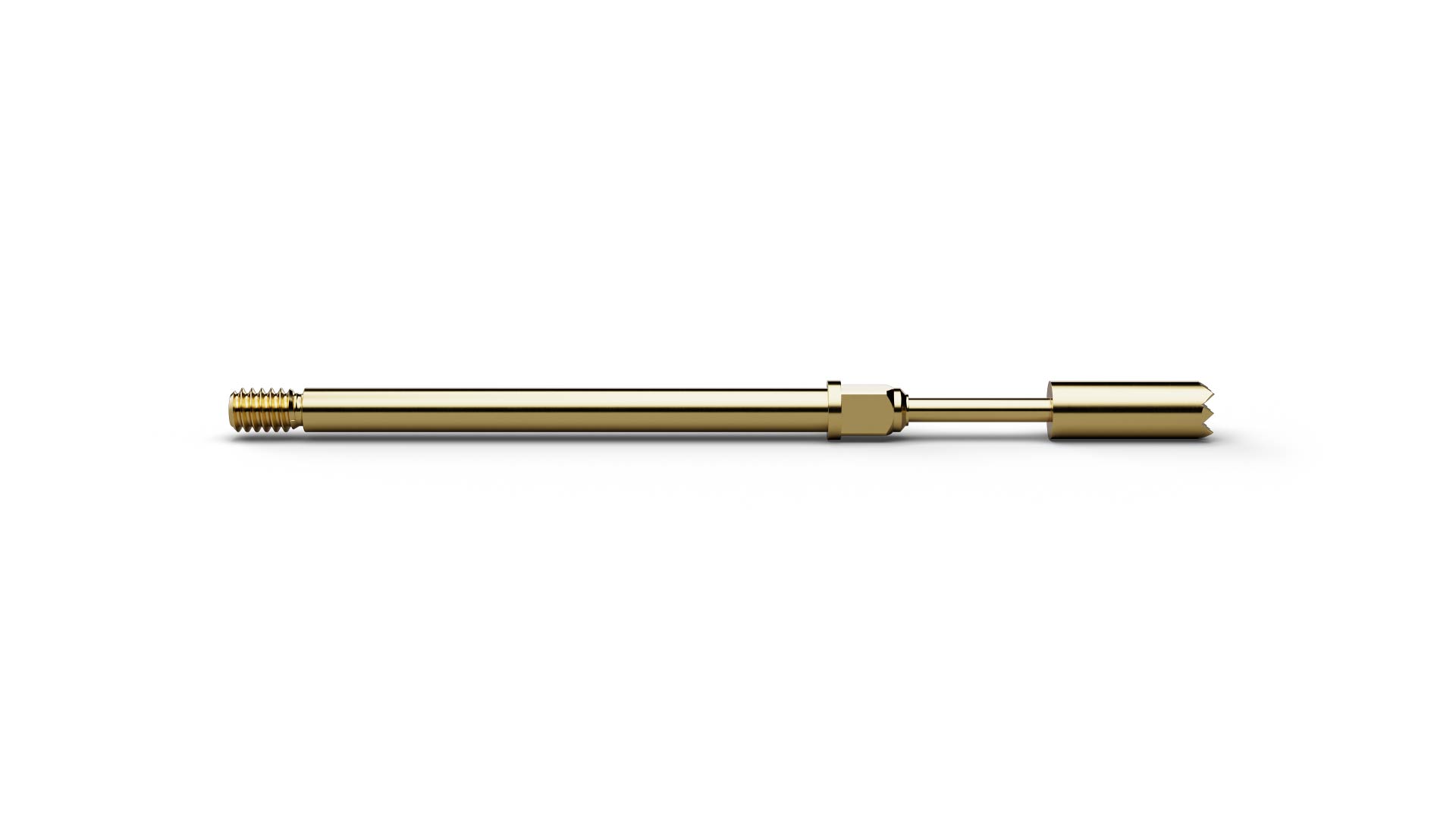

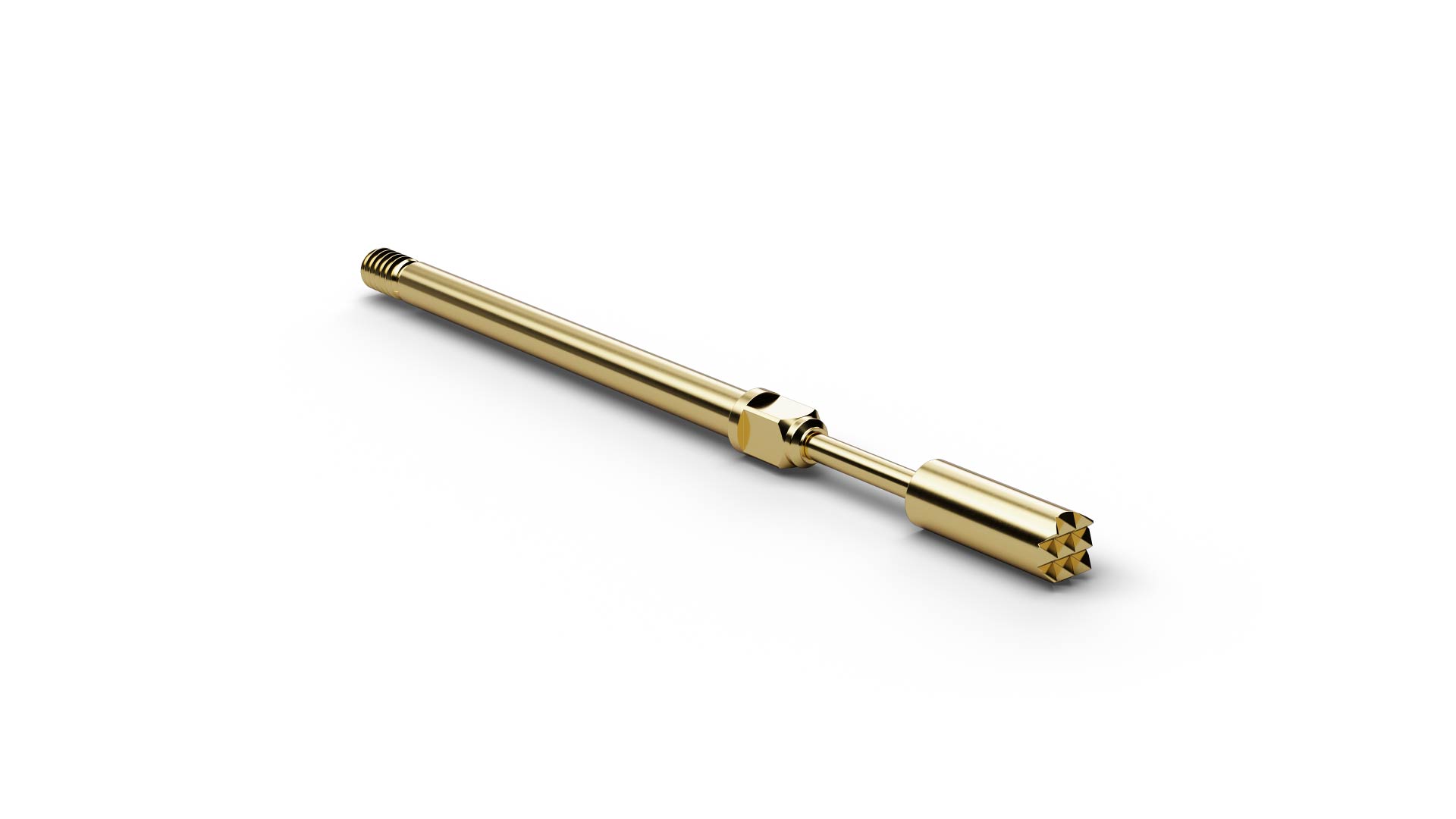

F73106B180G300S1 (item number 1007315) is a threaded Contact Probe for fixtures where the probe must remain securely in its installed position. The threaded mounting of F73106B180G300S1 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73106B180G300S1 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73106B180G300S1 is installed using a M1.4 thread. The design combines a pitch of 2.4 mm / 94 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.8 mm. Spring force is 300 cN at a nominal travel of 3.5 mm.
