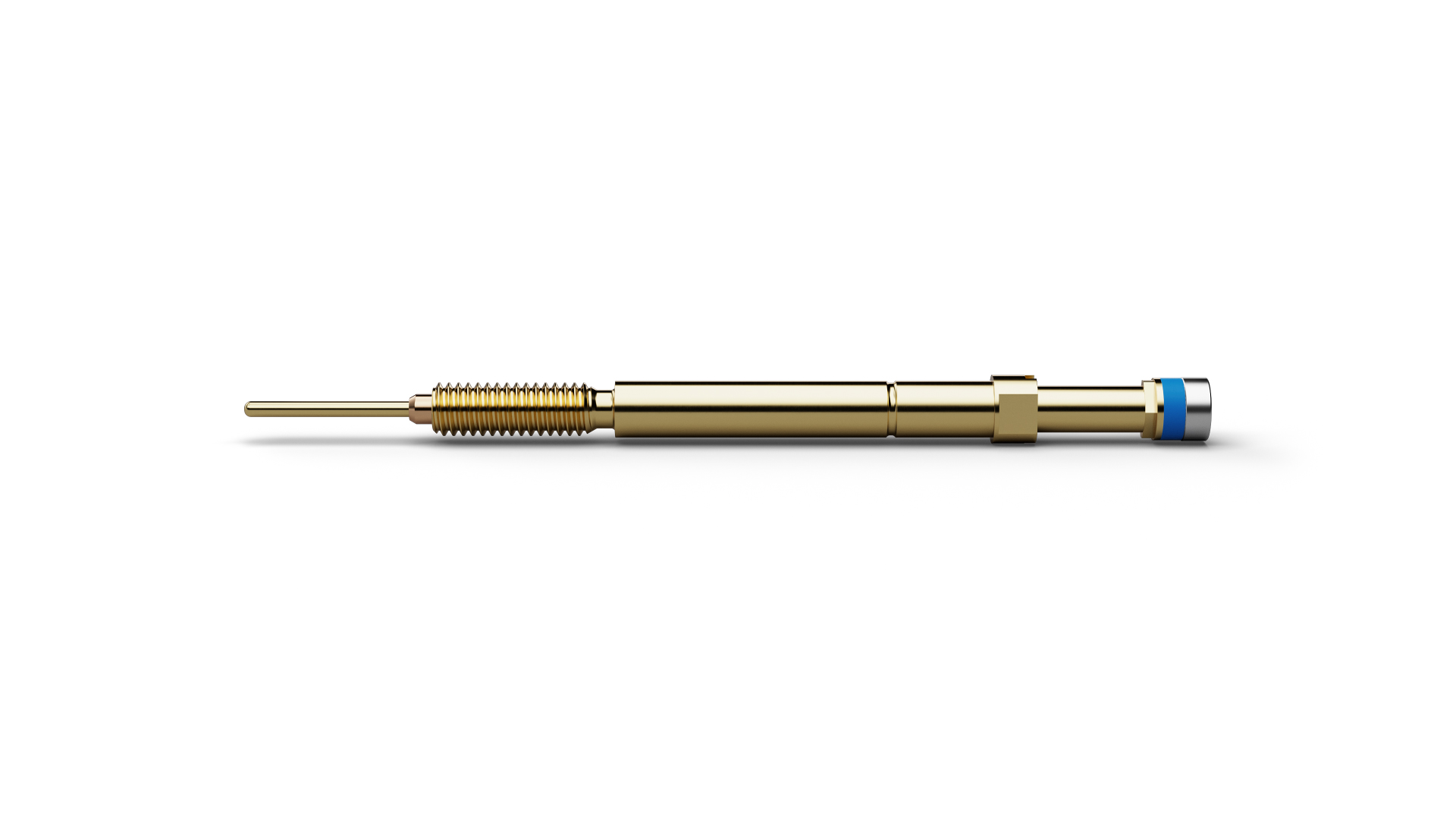

The Normally Open Switch Probe F88617H300U200SM (item number 1008637) combines spring-loaded contacting with a defined switching or sensing function. F88617H300U200SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88617H300U200SM, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. F88617H300U200SM operates with 200 cN spring force and 4 mm nominal travel. F88617H300U200SM is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88617H300U200SM combines a pitch of 3.5 mm / 138 mil with tip style 17H (Synthetic head with slot and metal ring) and a tip diameter of 3 mm.
