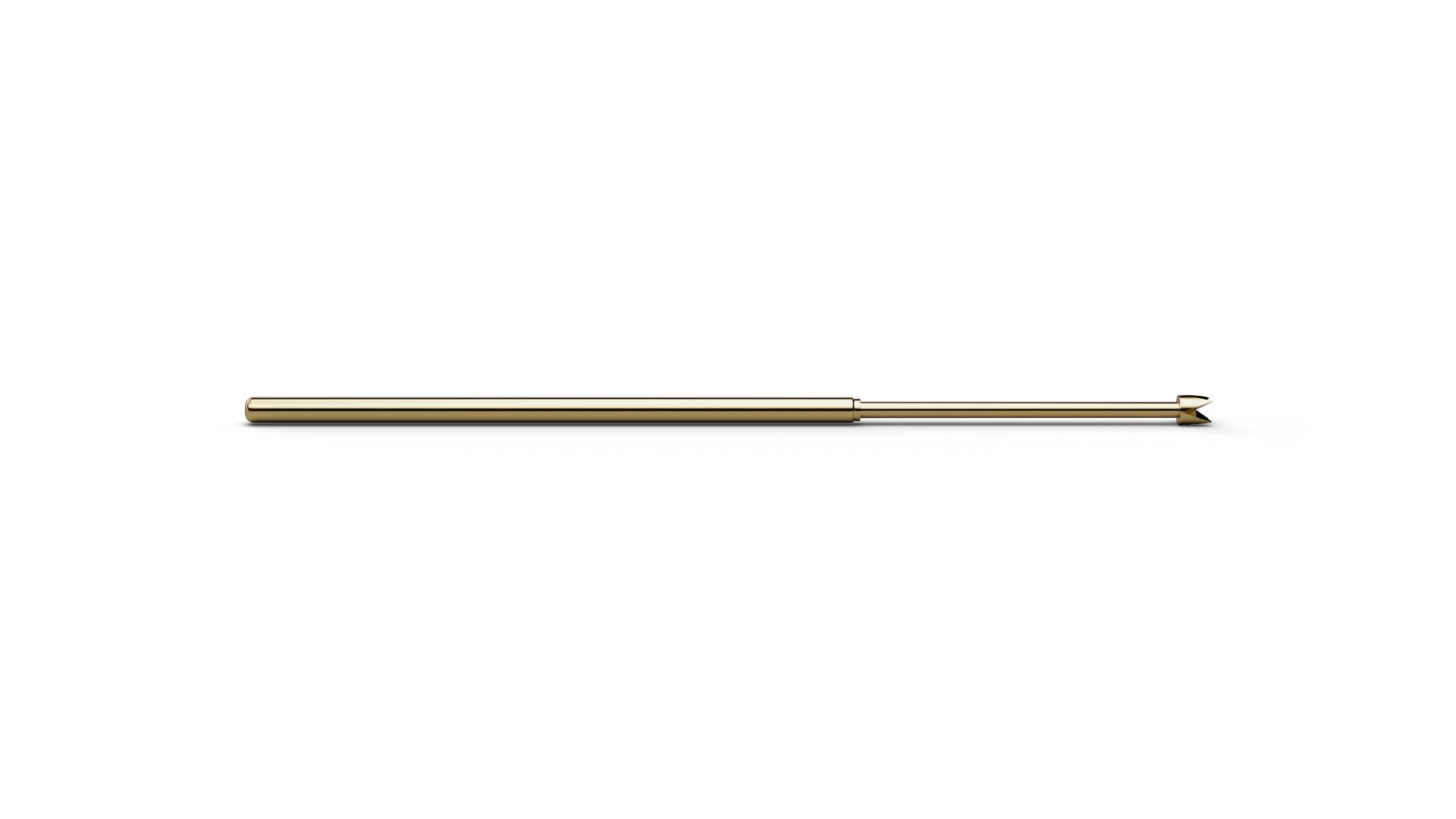

As a Basic Contact Probe, F79314B120G120L (item number 1008743) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F79314B120G120L combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F79314B120G120L combines a pitch of 1.9 mm / 75 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. F79314B120G120L operates with 120 cN spring force and 8 mm nominal travel. The electrical rating of F79314B120G120L combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F79314B120G120L is made of beryllium copper and is gold-plated.
