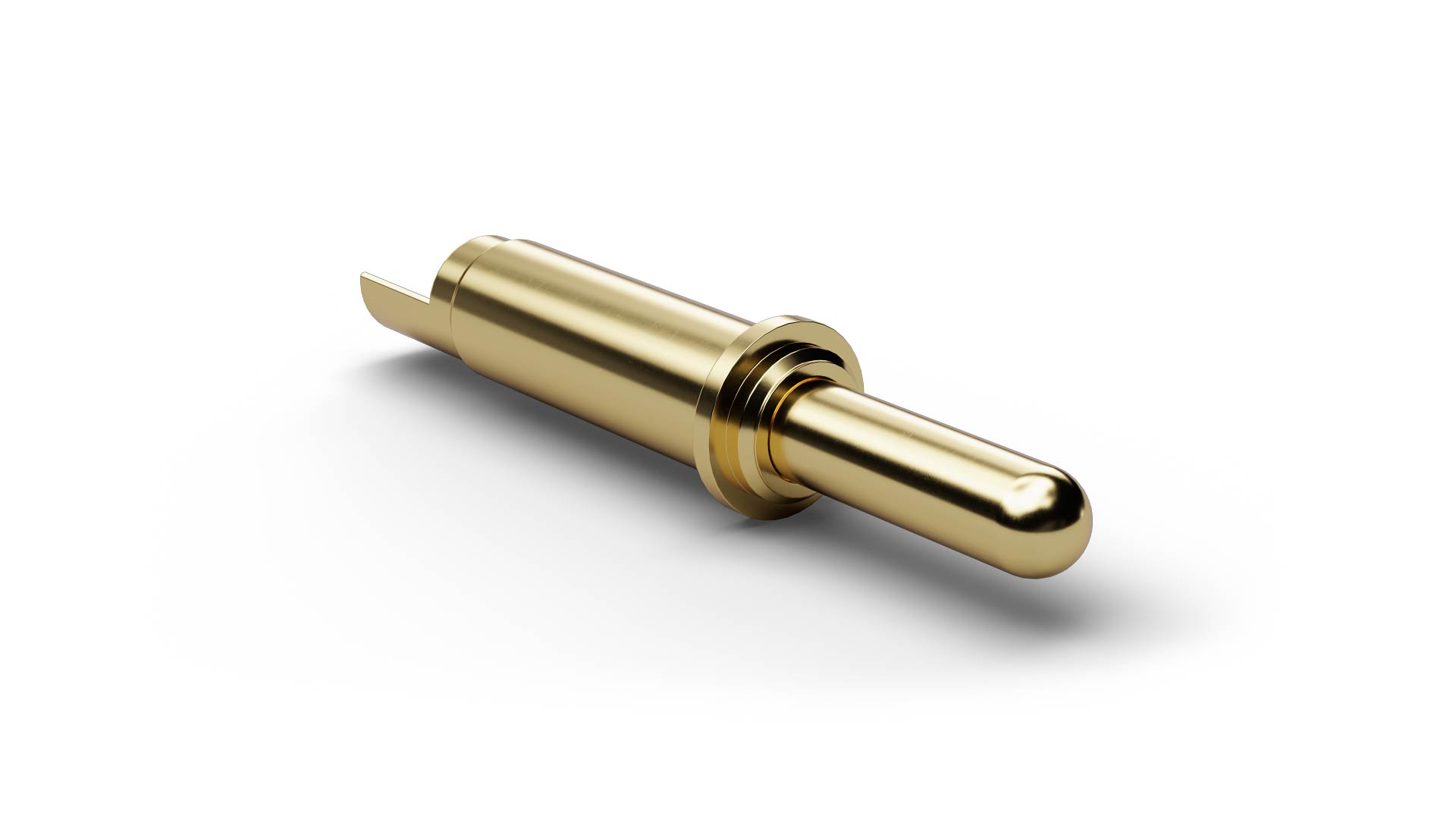

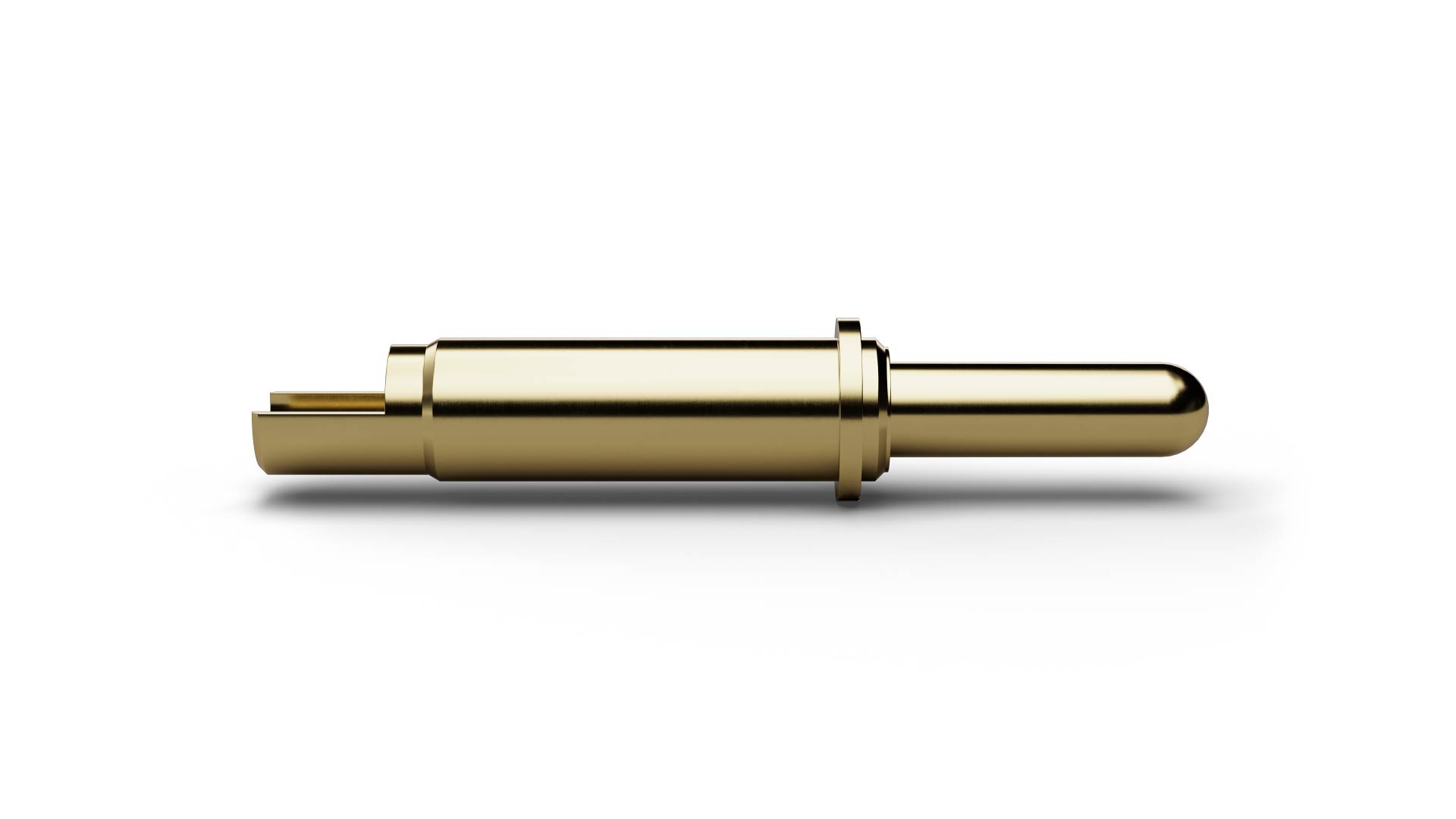

The Pogo Connector P19711B130G130TL127LA (item number 1009105) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P19711B130G130TL130LA is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19711B130G130TL130LA is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P19711B130G130TL130LA, a pitch of 3 mm / 118 mil is combined with 130 cN spring force and 1.5 mm nominal travel. The electrical rating of P19711B130G130TL130LA combines 9 A continuous current with 100 mΩ typical contact resistance. On P19711B130G130TL130LA, tip style 11 (Spherical) has a diameter of 1.3 mm.
