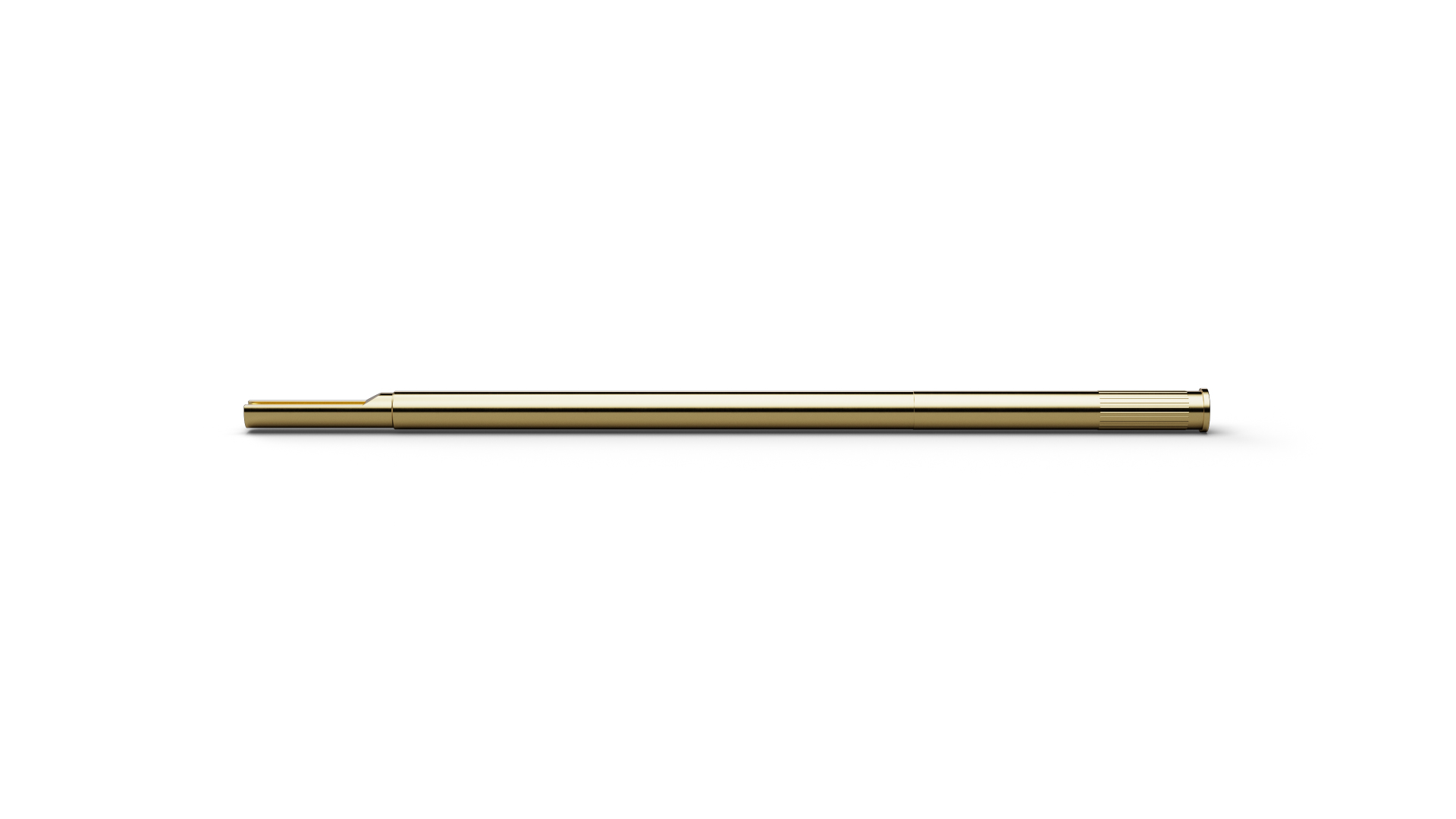

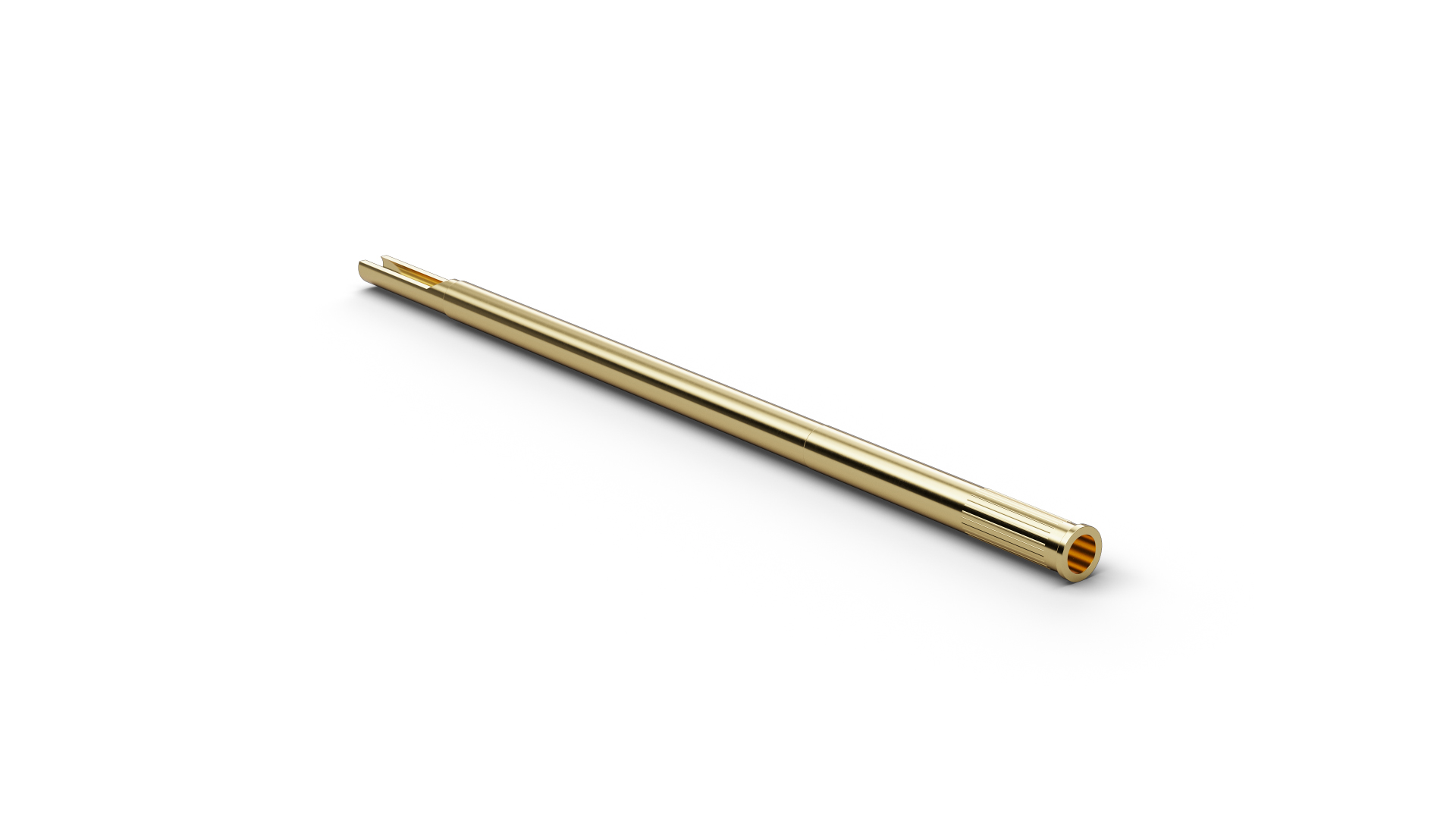

H175LARD (item number 1009615) is a receptacle for the compatible Basic Threaded Probe and defines its installed position in the test fixture. As a Receptacle, H175LARD guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant integration data includes pitch 1.9 mm / 75 mil, thread 1.0, length 32.7 mm, connection type Solder Connection. When selecting H175LARD, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
