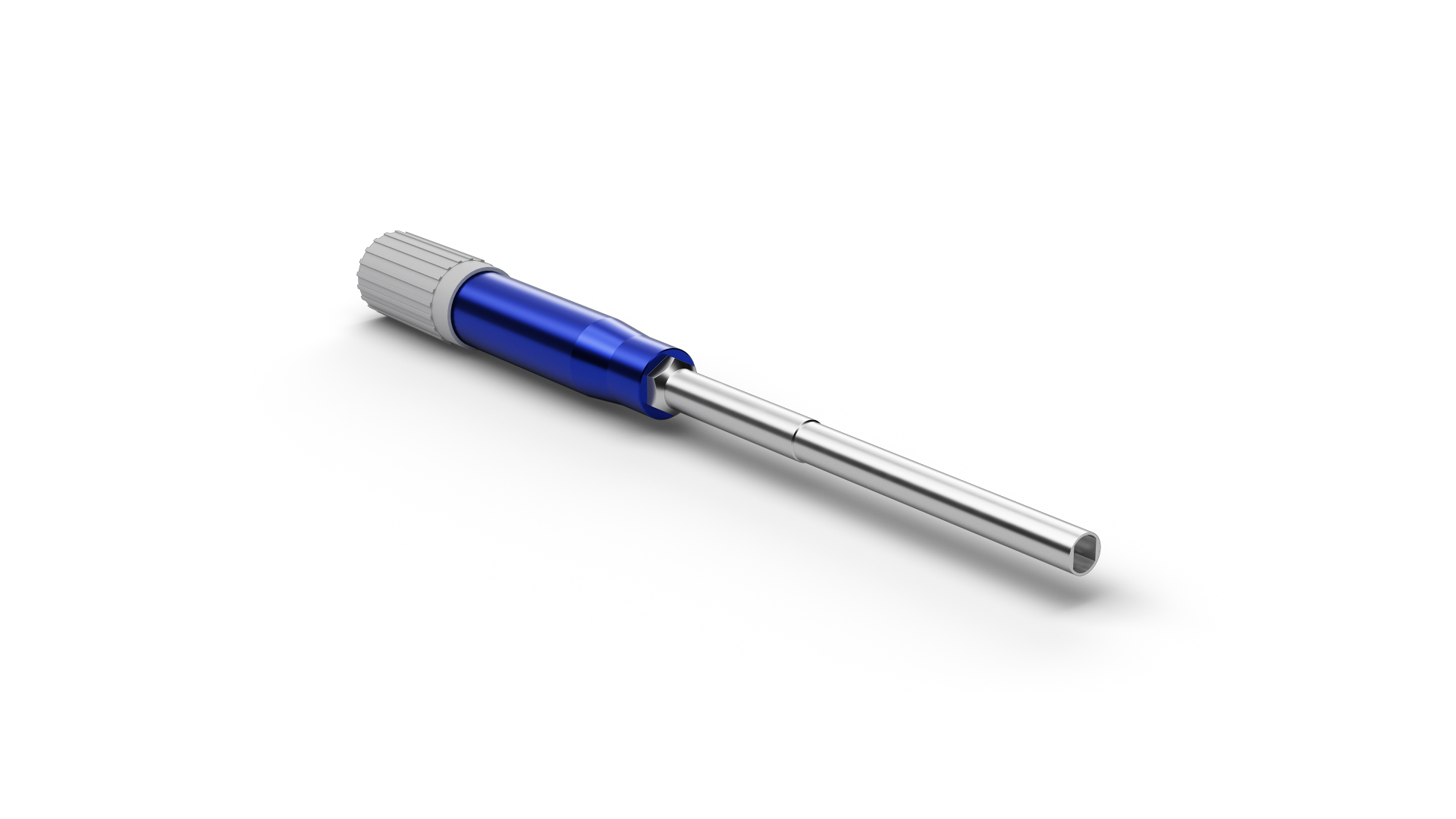

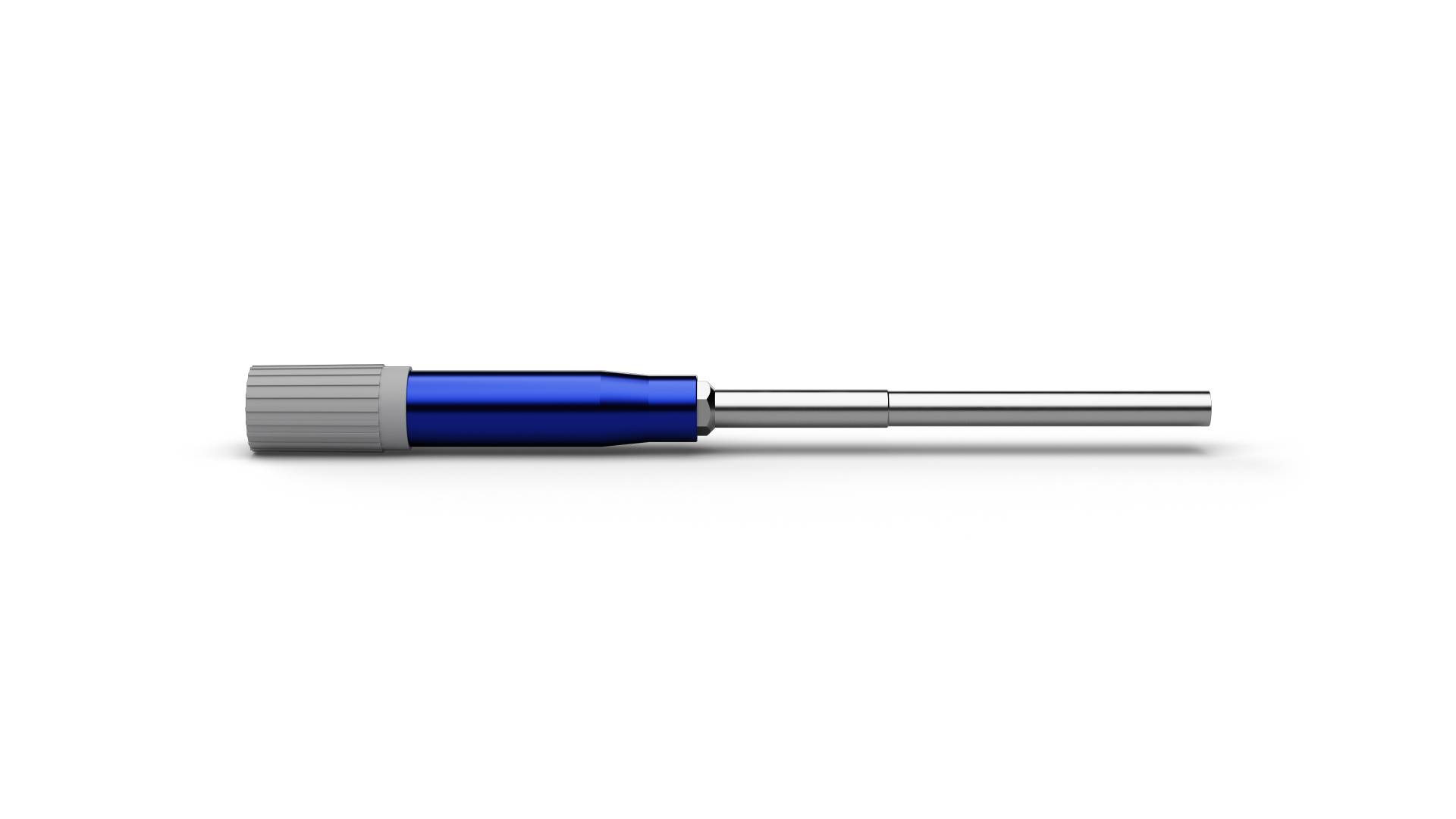

FWZ885T (item number 1009781) is an assembly tool for Contact Probes and Receptacles or related test components. FWZ885T is matched to installation or maintenance of the corresponding probes and receptacles and supports controlled handling of the contacting components. FWZ885T supports precise assembly, adjustment or maintenance of the associated contacting components. For handling, the relevant data includes tool type FWZ885, tool interface Steckschlüssel, tool size 2.6 mm, length 100 mm, outside diameter 3.7 mm, insertion depth 30 mm, torque 4.5 Ncm. The geometry of FWZ885T is matched to controlled assembly and helps reduce the risk of damage to the Contact Probe, Receptacle or test fixture.
