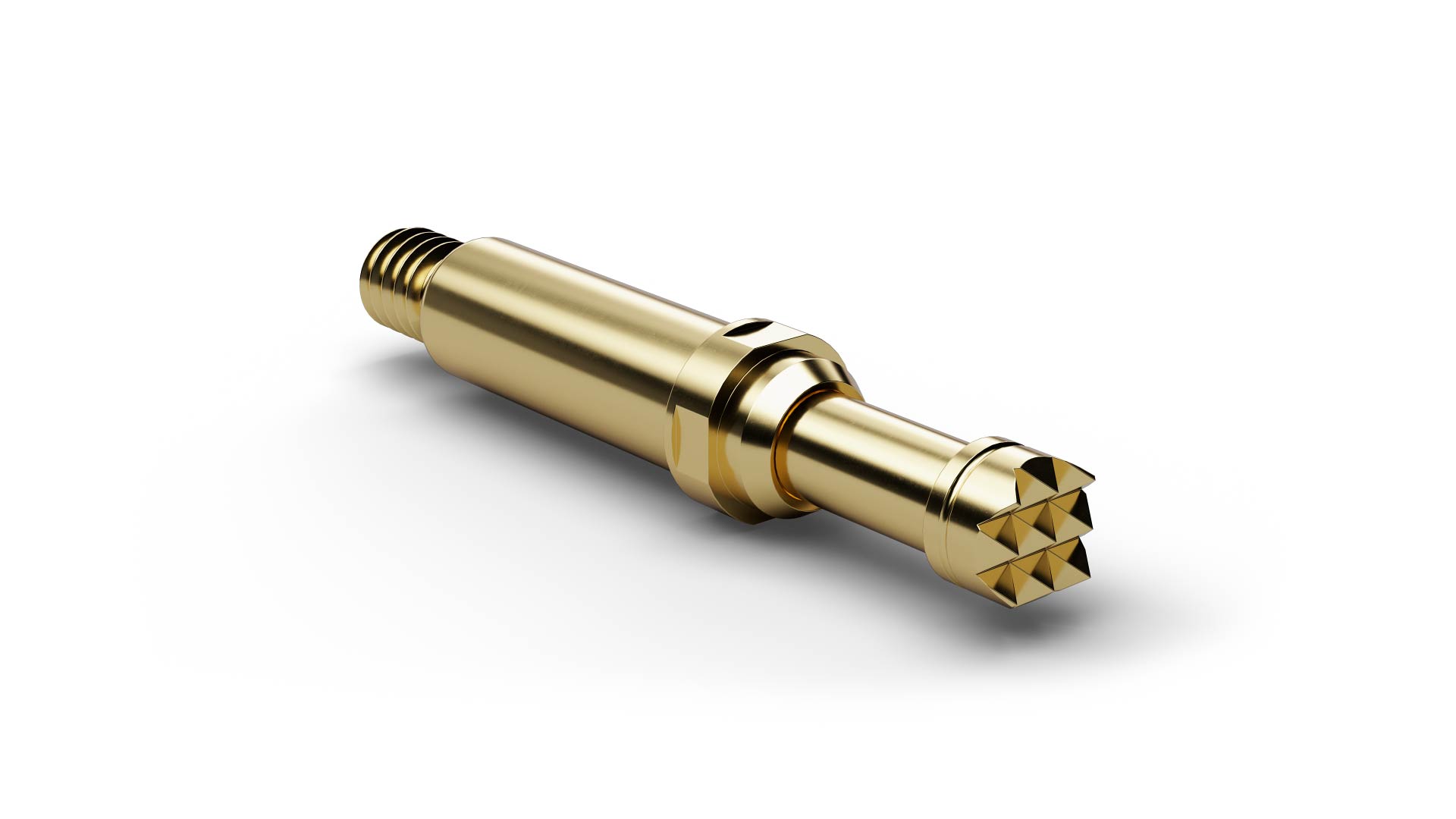

The High Current Probe HCF72306B230G080 (item number 1009987) is designed for safe transmission of high electrical currents in test and contacting applications. HCF72306B230G080 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF72306B230G080, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF72306B230G080 includes power-electronics testing. HCF72306B230G080 is rated for 30 A continuous current with a typical contact resistance of 8 mΩ. HCF72306B230G080 operates with 80 cN spring force and 2.8 mm nominal travel.
