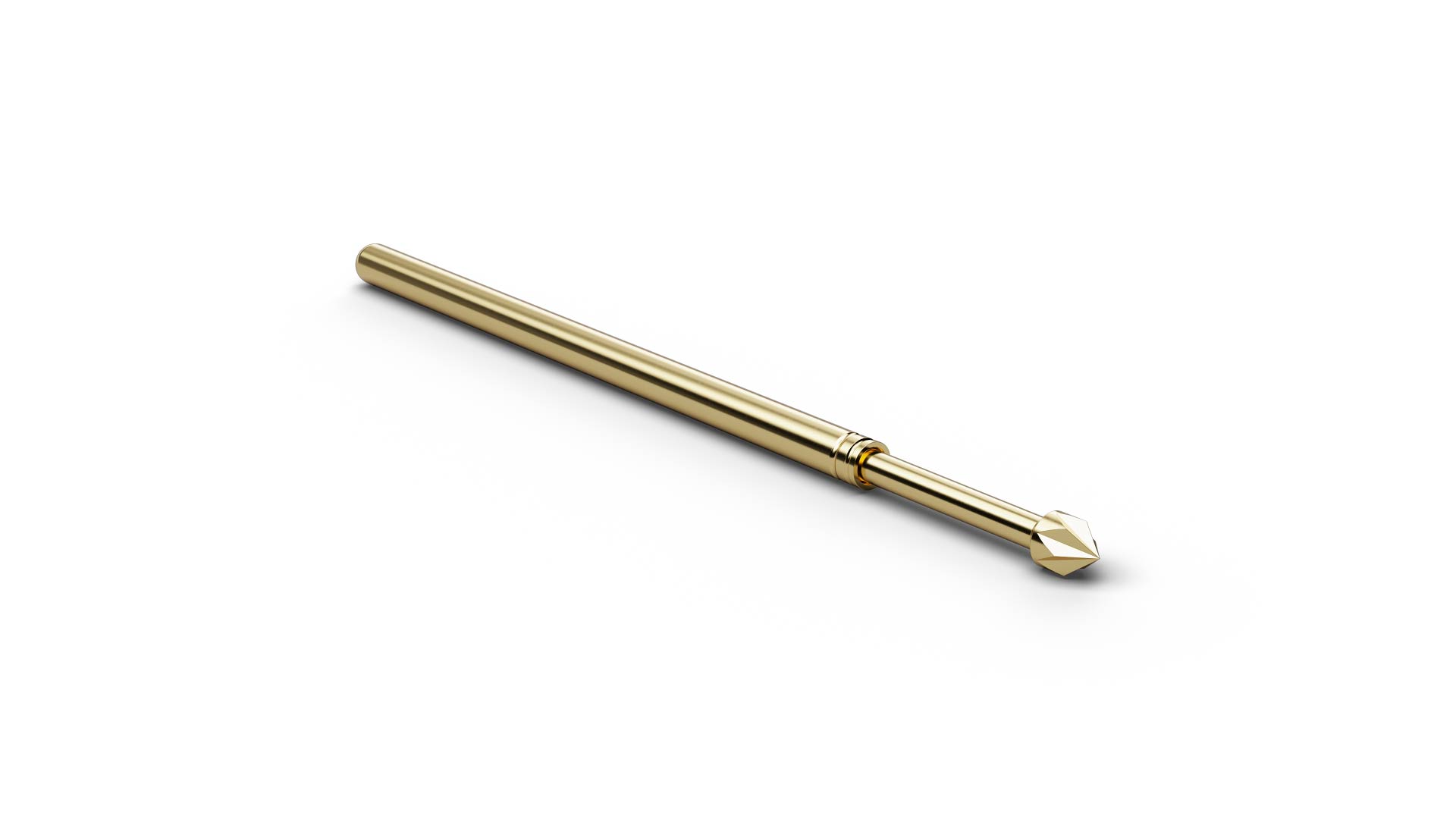

The Basic Contact Probe F10007S150L200 (item number 1011982) is a spring-loaded probe for temporary electrical contact with test points. With tip style 07 (Hexagonal 90° stepped), F10007S150L200 combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F10007S150L200 combines a pitch of 2.54 mm / 100 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.5 mm. F10007S150L200 operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10007S150L200 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10007S150L200 is made of steel and uses Longtime Gold plating.
