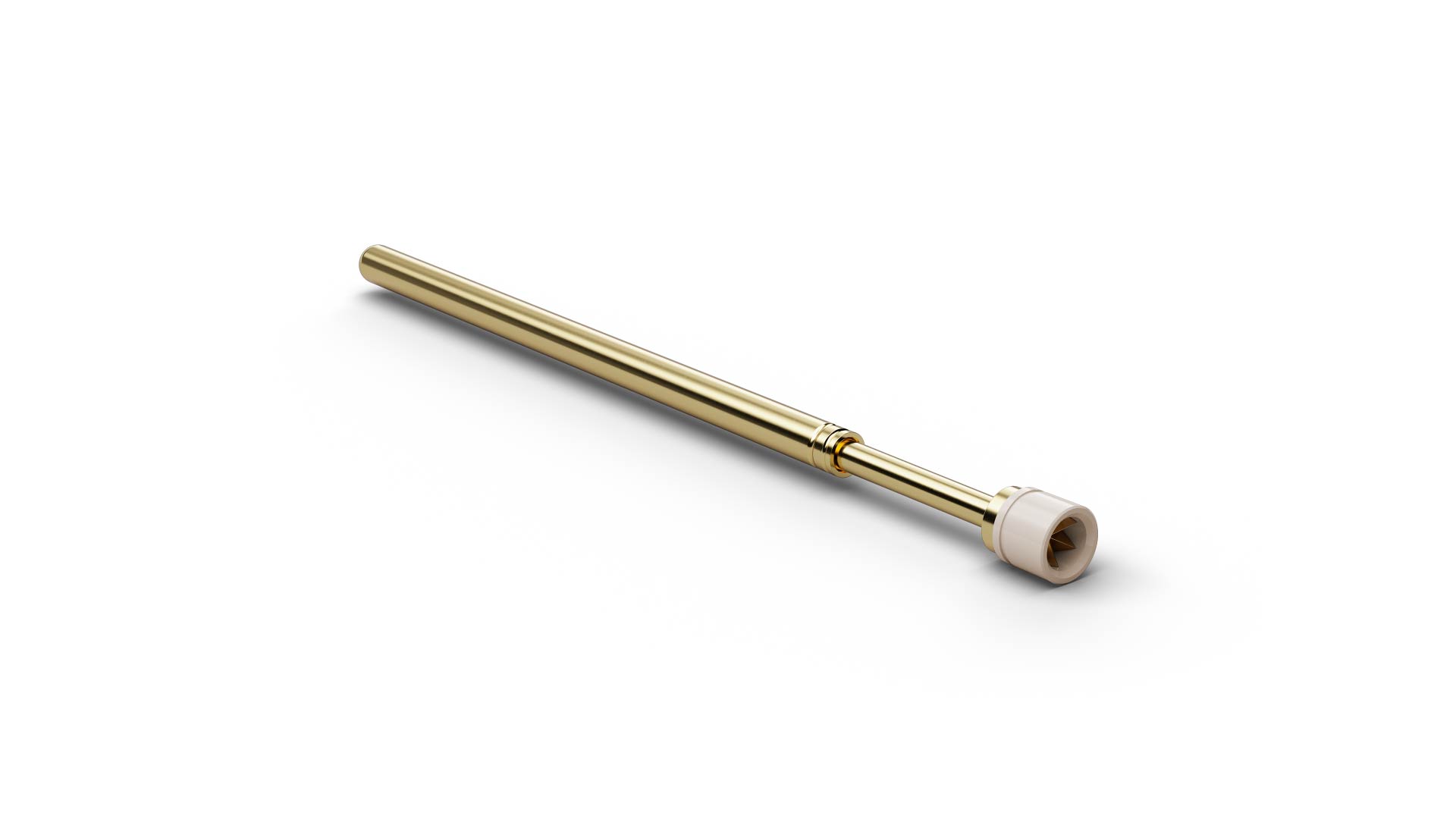

As a Basic Contact Probe, F10041B150G200IK04 (item number 1012765) establishes a spring-loaded electrical connection to the test point. With tip style 41 (6-point crown stepped (self-cleaning)), F10041B150G200IK04 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F10041B150G200IK04 combines a pitch of 2.54 mm / 100 mil with tip style 41 (6-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10041B150G200IK04 operates with 200 cN spring force and 4.3 mm nominal travel. F10041B150G200IK04 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10041B150G200IK04 is made of beryllium copper and is gold-plated.
