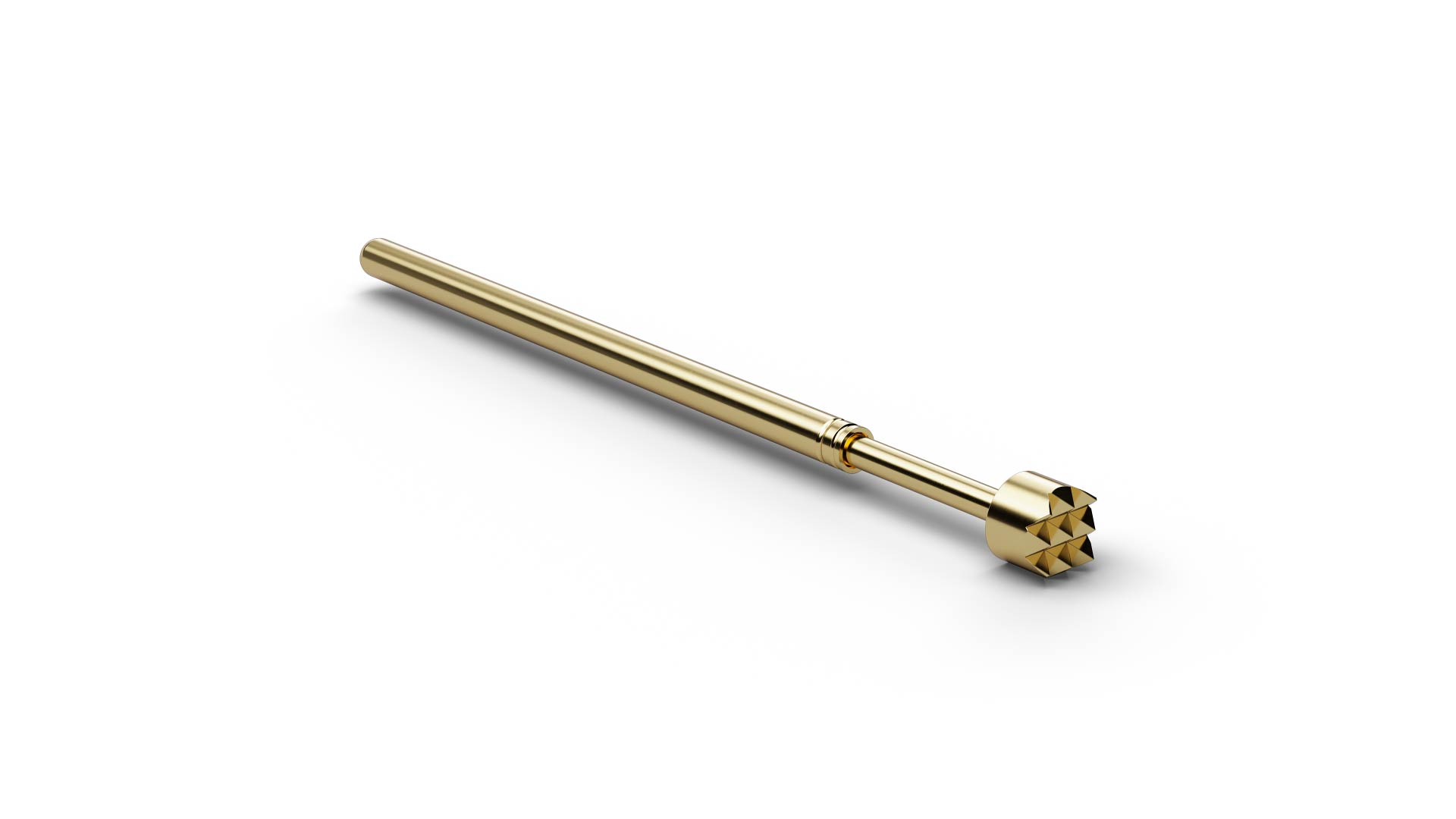

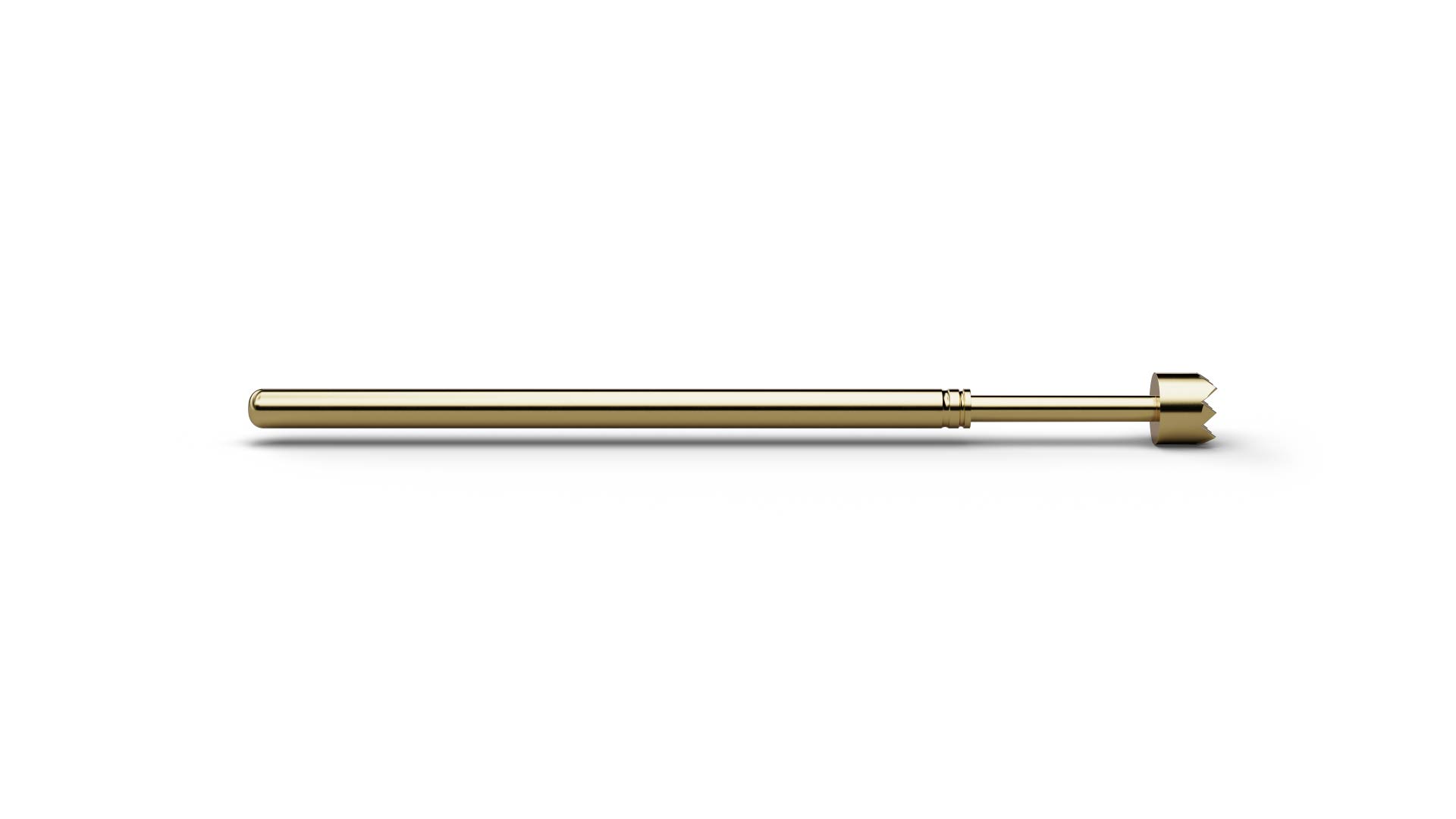

As a Basic Contact Probe, F10006B250G200 (item number 1013012) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F10006B250G200 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B250G200 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. For F10006B250G200, spring force is 200 cN at a nominal travel of 4.3 mm. F10006B250G200 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10006B250G200 is made of beryllium copper and is gold-plated.
