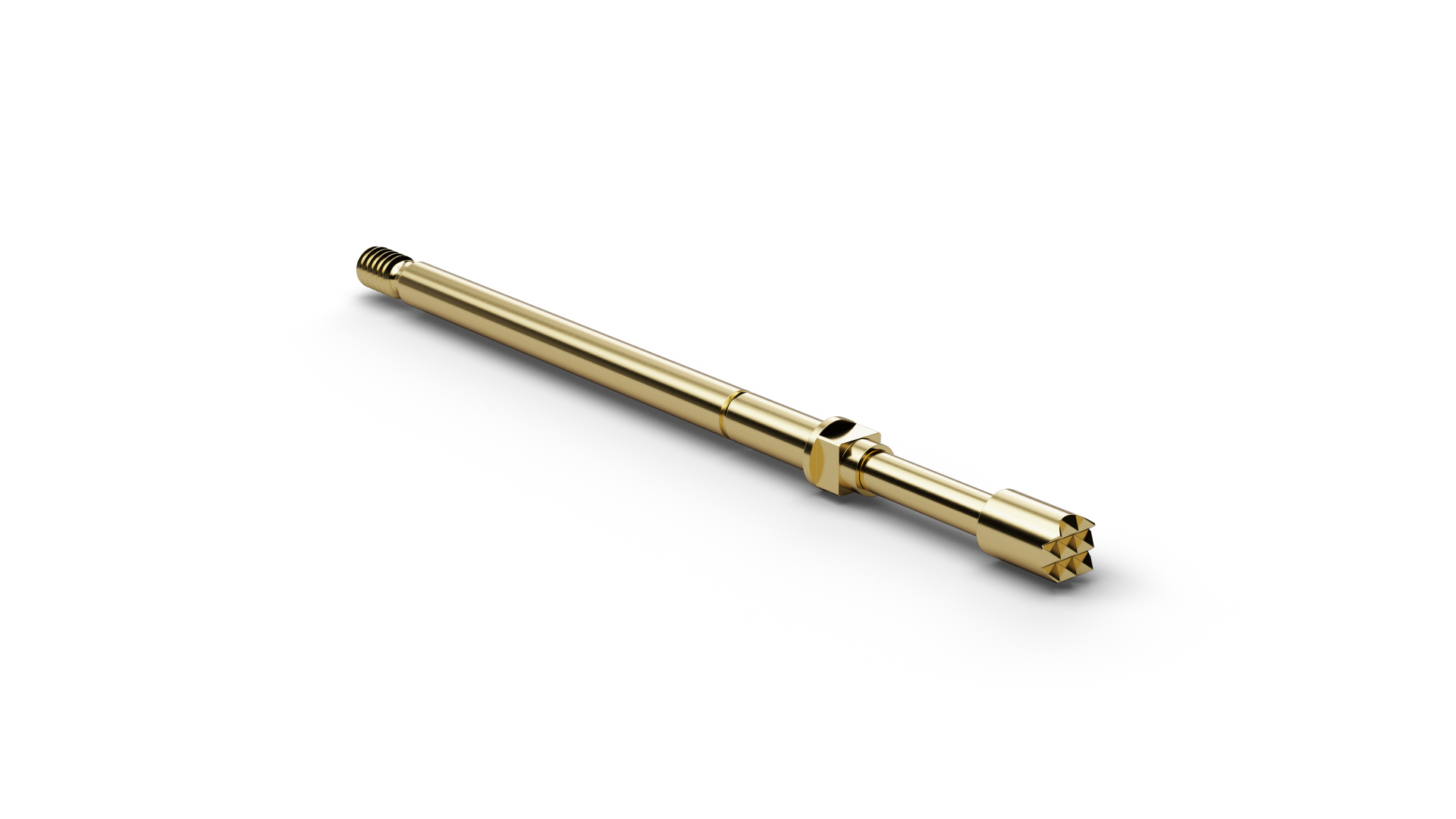

The Position Sensor Probe PS73206B200G090 (item number 1013605) combines spring-loaded contacting with a defined switching or sensing function. PS73206B200G090 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. PS73206B200G090 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. PS73206B200G090 operates with 90 cN spring force and 4 mm nominal travel. PS73206B200G090 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. PS73206B200G090 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm.
