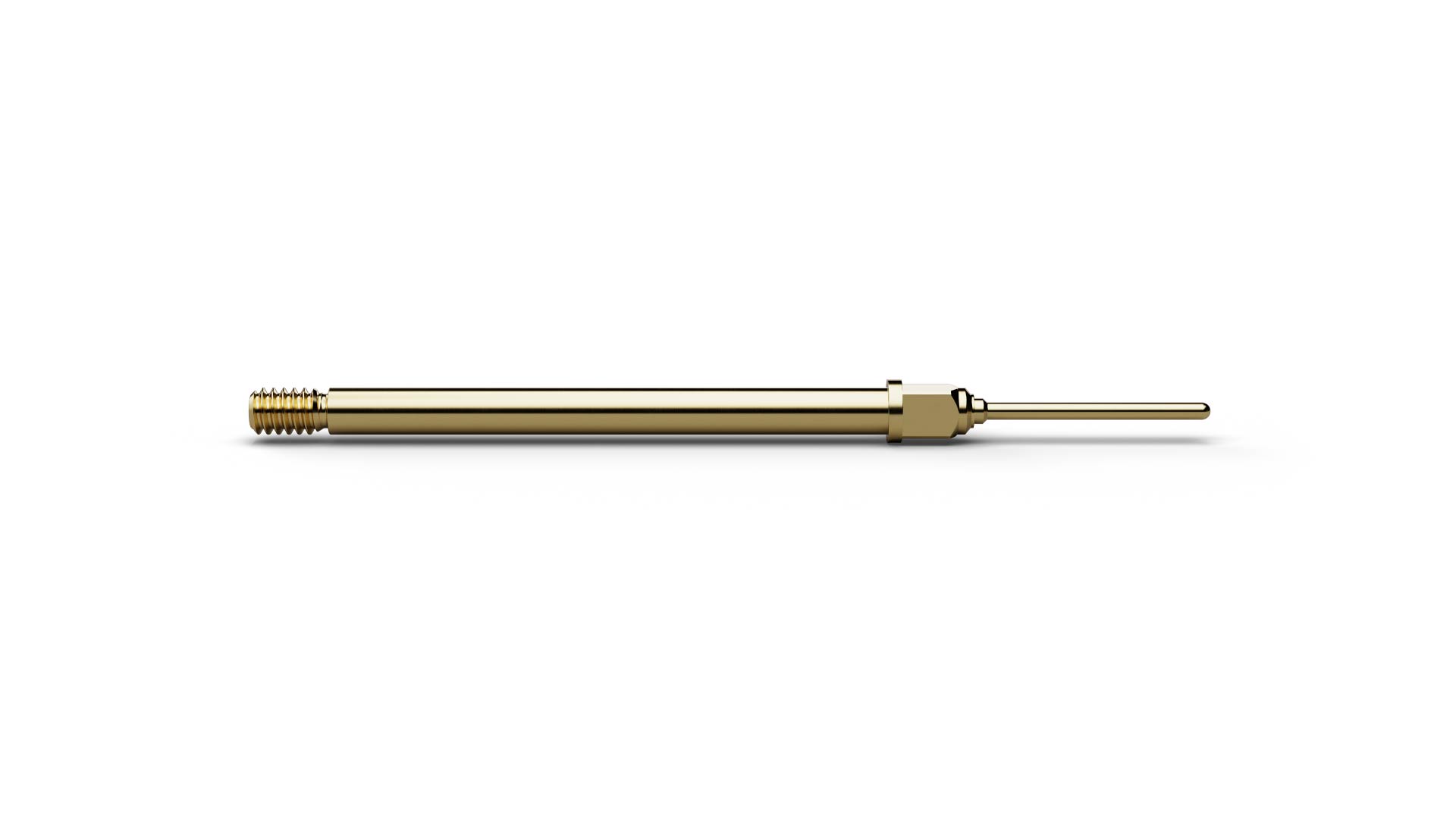

F73111B050G300 (item number 1014834) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73111B050G300 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73111B050G300 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73111B050G300 uses an M1.4 thread. On F73111B050G300, a pitch of 2.4 mm / 94 mil is combined with 300 cN spring force and 3.5 mm nominal travel. F73111B050G300 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ.
