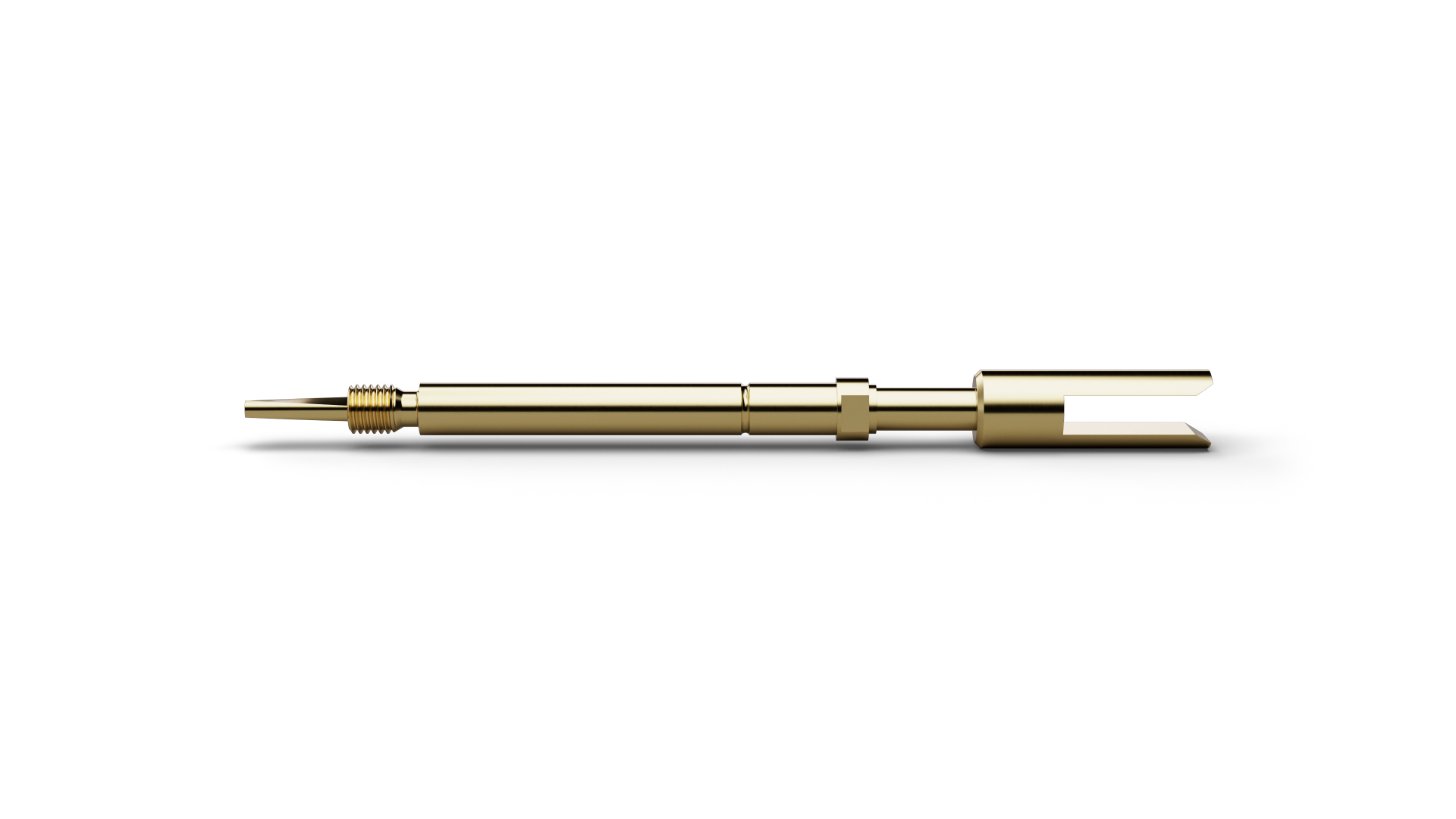

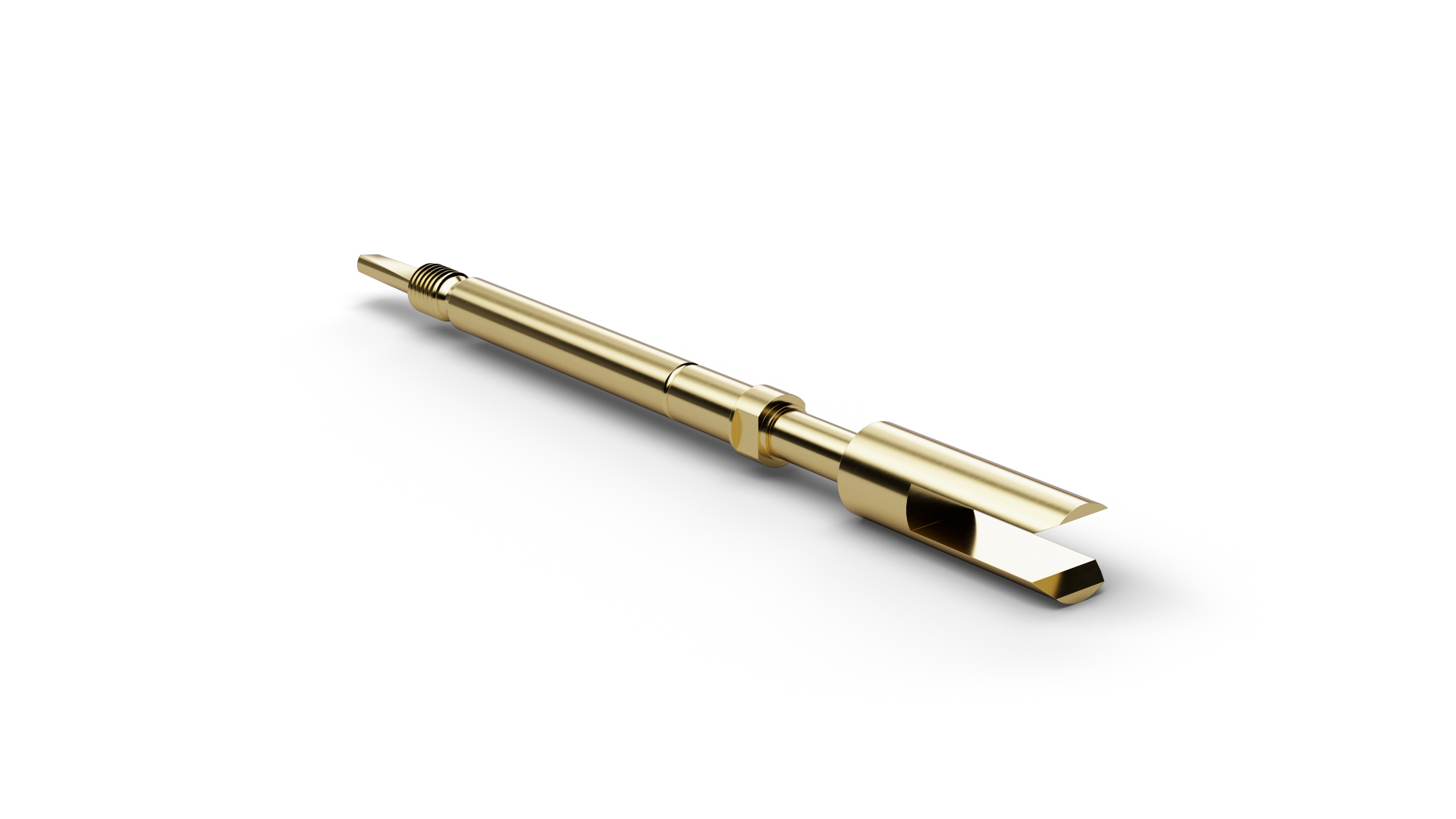

The High Current Probe HCF76289B400200750G300 (item number 1015094) is designed for safe transmission of high electrical currents in test and contacting applications. HCF76289B400200750G300 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF76289B400200750G300, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF76289B400200750G300 includes connector testing. HCF76289B400200750G300 is rated for 40 A continuous current with a typical contact resistance of 5 mΩ. HCF76289B400200750G300 operates with 300 cN spring force and 4 mm nominal travel.
