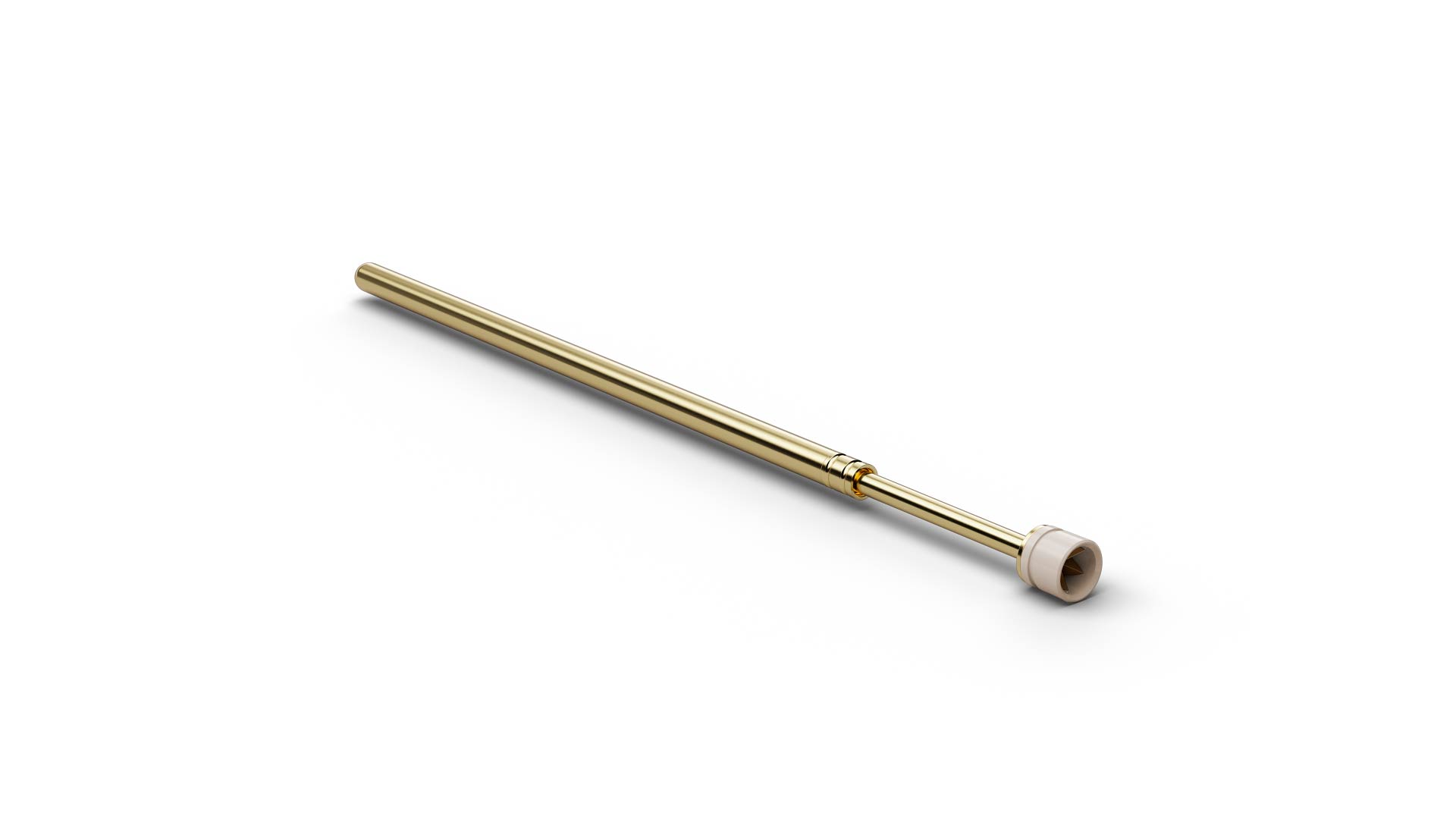

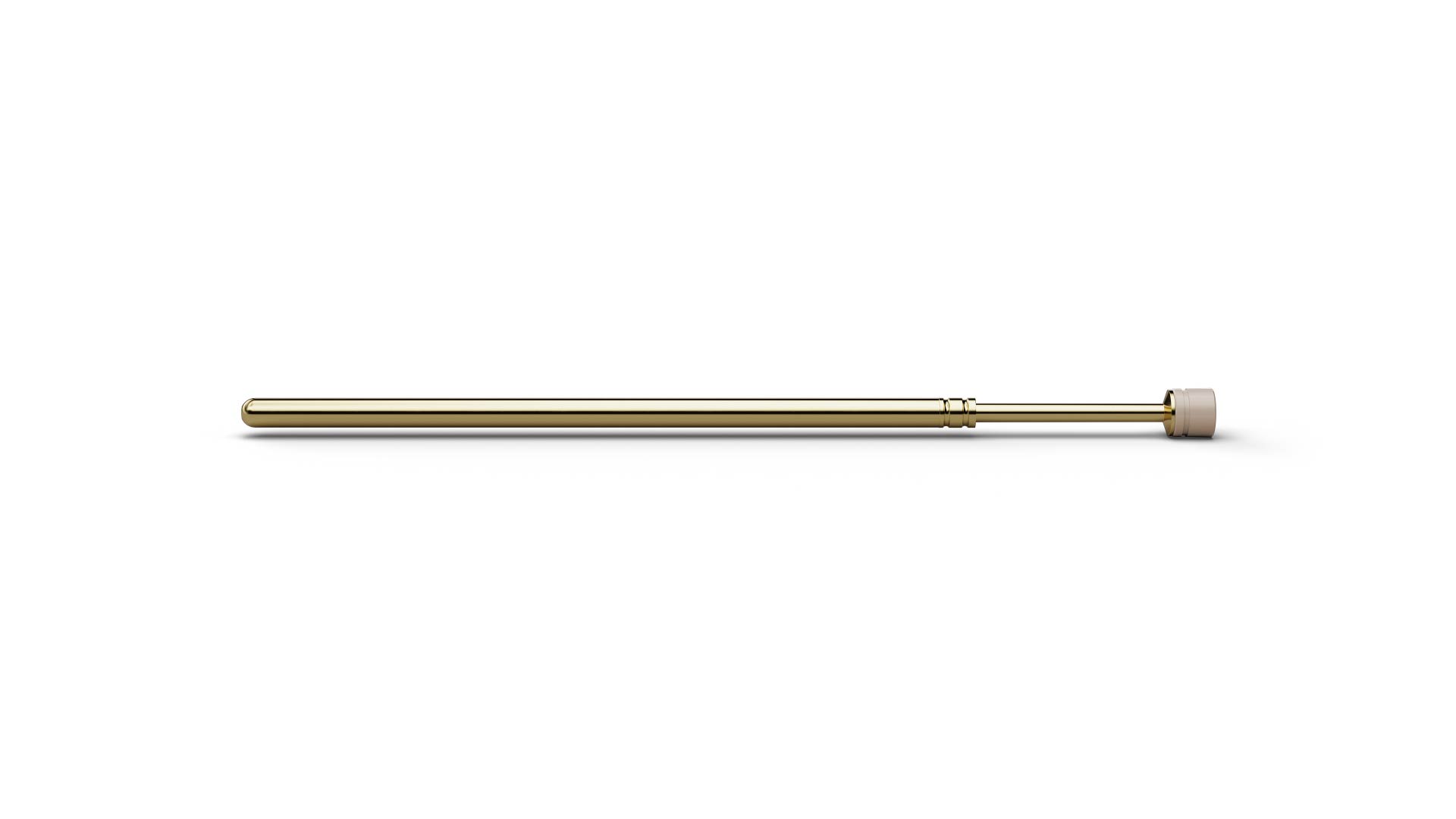

As a Basic Contact Probe, F07541B130G280IK04 (item number 1017352) establishes a spring-loaded electrical connection to the test point. With tip style 41 (6-point crown stepped (self-cleaning)), F07541B130G280IK04 combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F07541B130G280IK04 combines a pitch of 1.9 mm / 75 mil with tip style 41 (6-point crown stepped (self-cleaning)) and a tip diameter of 1.3 mm. F07541B130G280IK04 operates with 280 cN spring force and 4.3 mm nominal travel. The electrical rating of F07541B130G280IK04 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07541B130G280IK04 is made of beryllium copper and is gold-plated.
