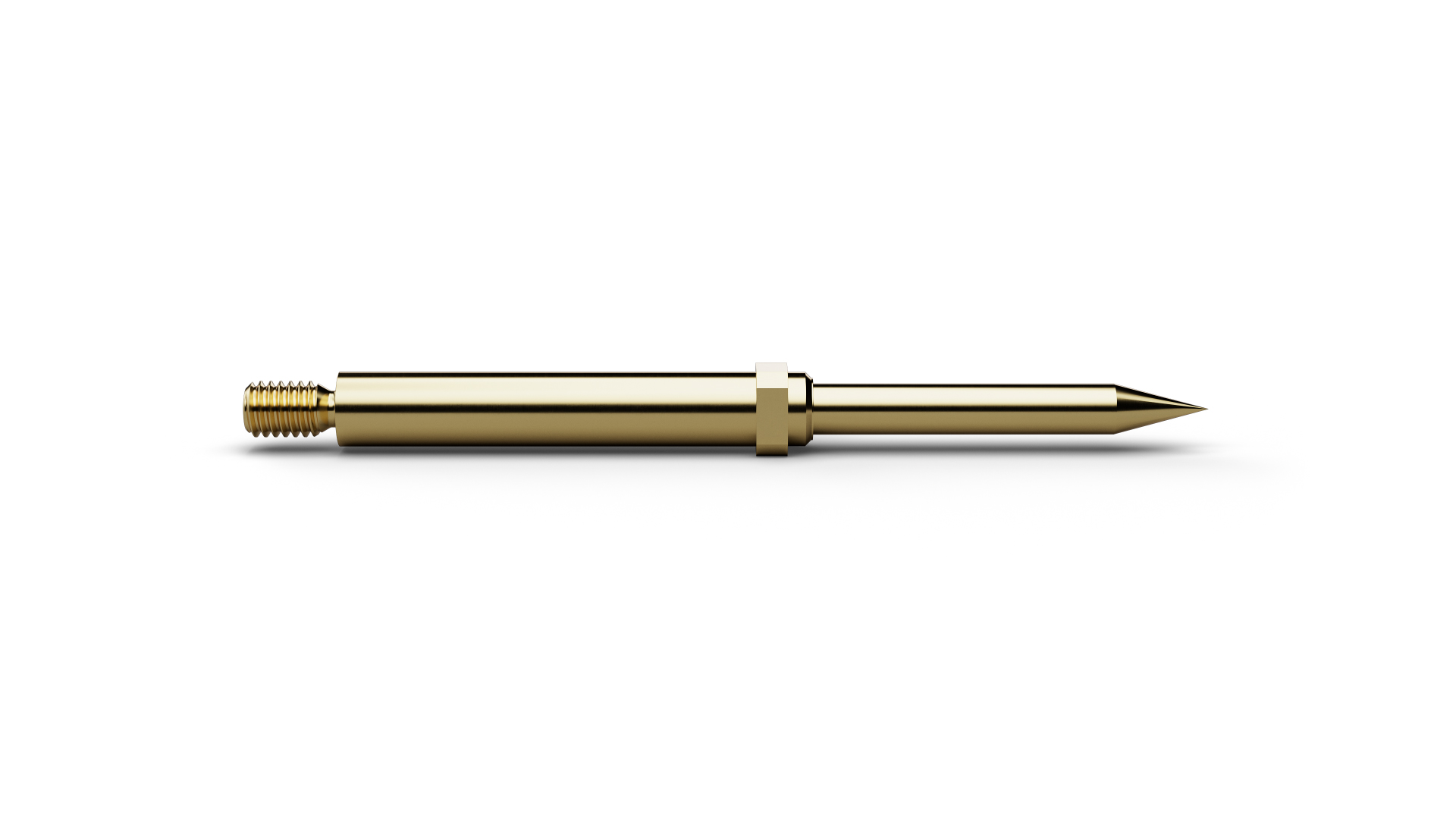

F73418S180L300 (item number 1018326) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73418S180L300 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73418S180L300 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73418S180L300 uses an M2 thread. On F73418S180L300, a pitch of 4 mm / 157 mil is combined with 300 cN spring force and 5.6 mm nominal travel. F73418S180L300 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ.
