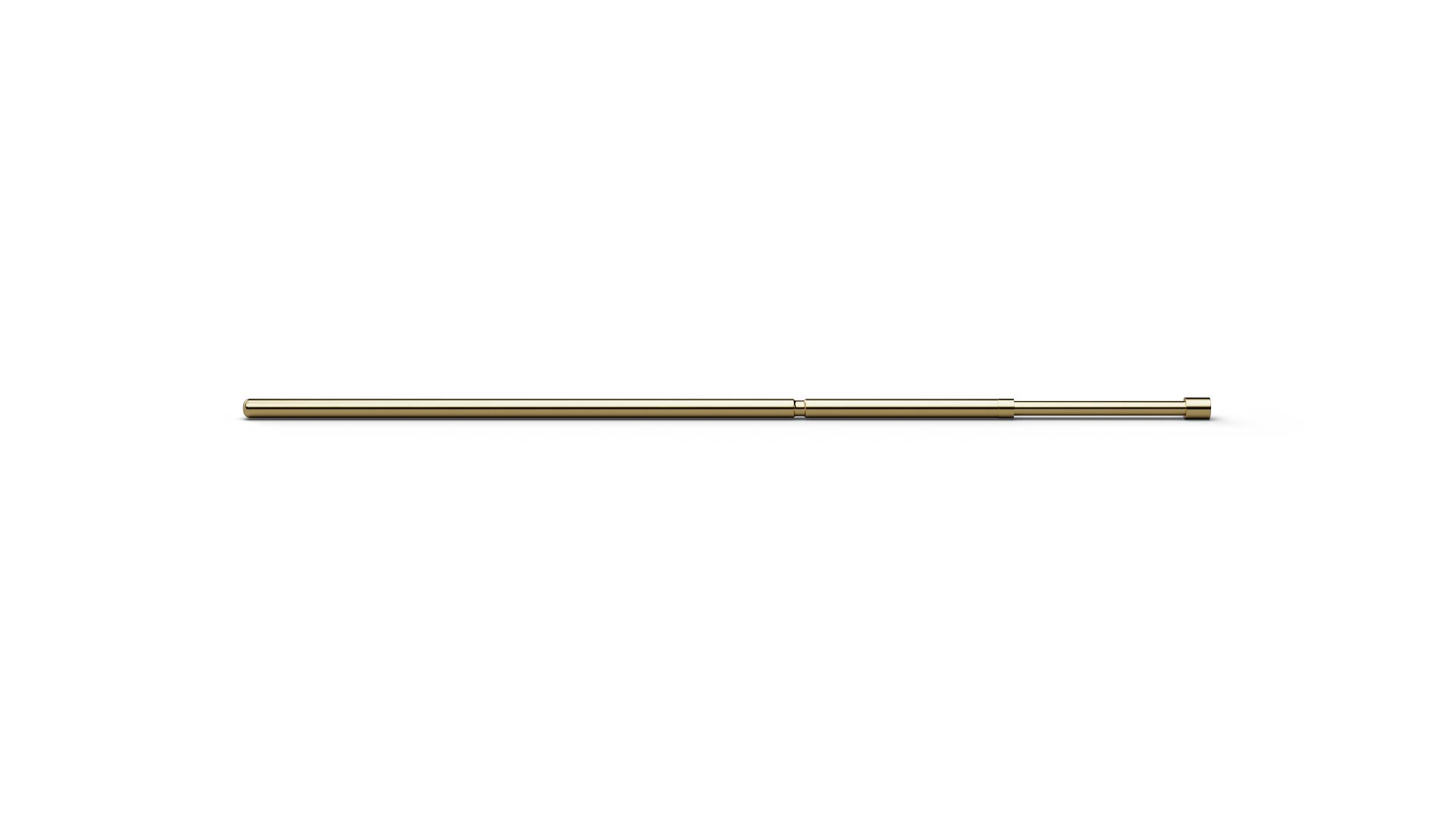

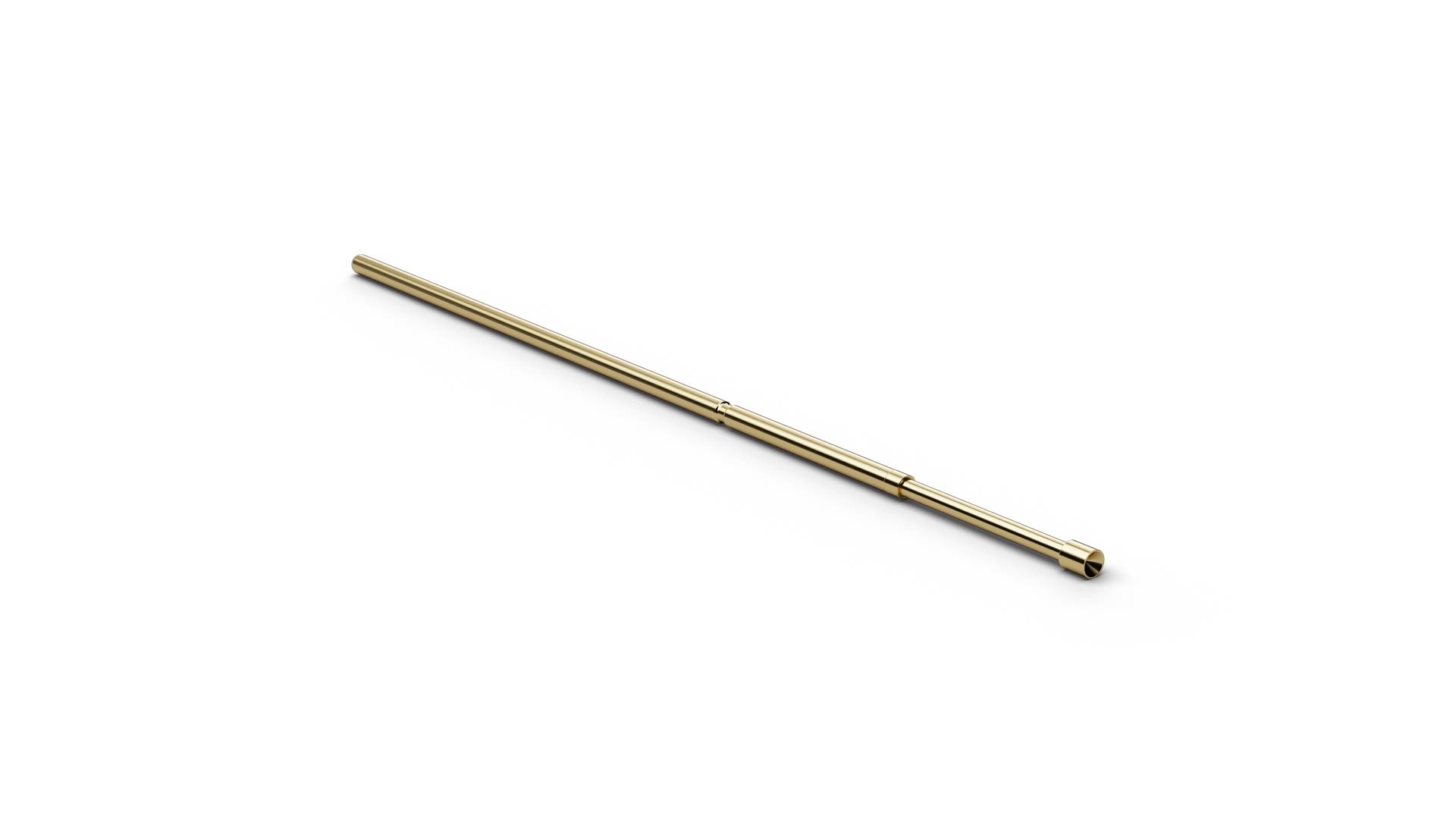

F76705B090G165 (item number 1019083) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 05 (Concave stepped), F76705B090G165 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F76705B090G165 combines a pitch of 1.27 mm / 50 mil with tip style 05 (Concave stepped) and a tip diameter of 0.9 mm. F76705B090G165 operates with 165 cN spring force and 6.4 mm nominal travel. The electrical rating of F76705B090G165 combines 3 A continuous current with 20 mΩ typical contact resistance. The plunger in F76705B090G165 is made of beryllium copper and is gold-plated.
