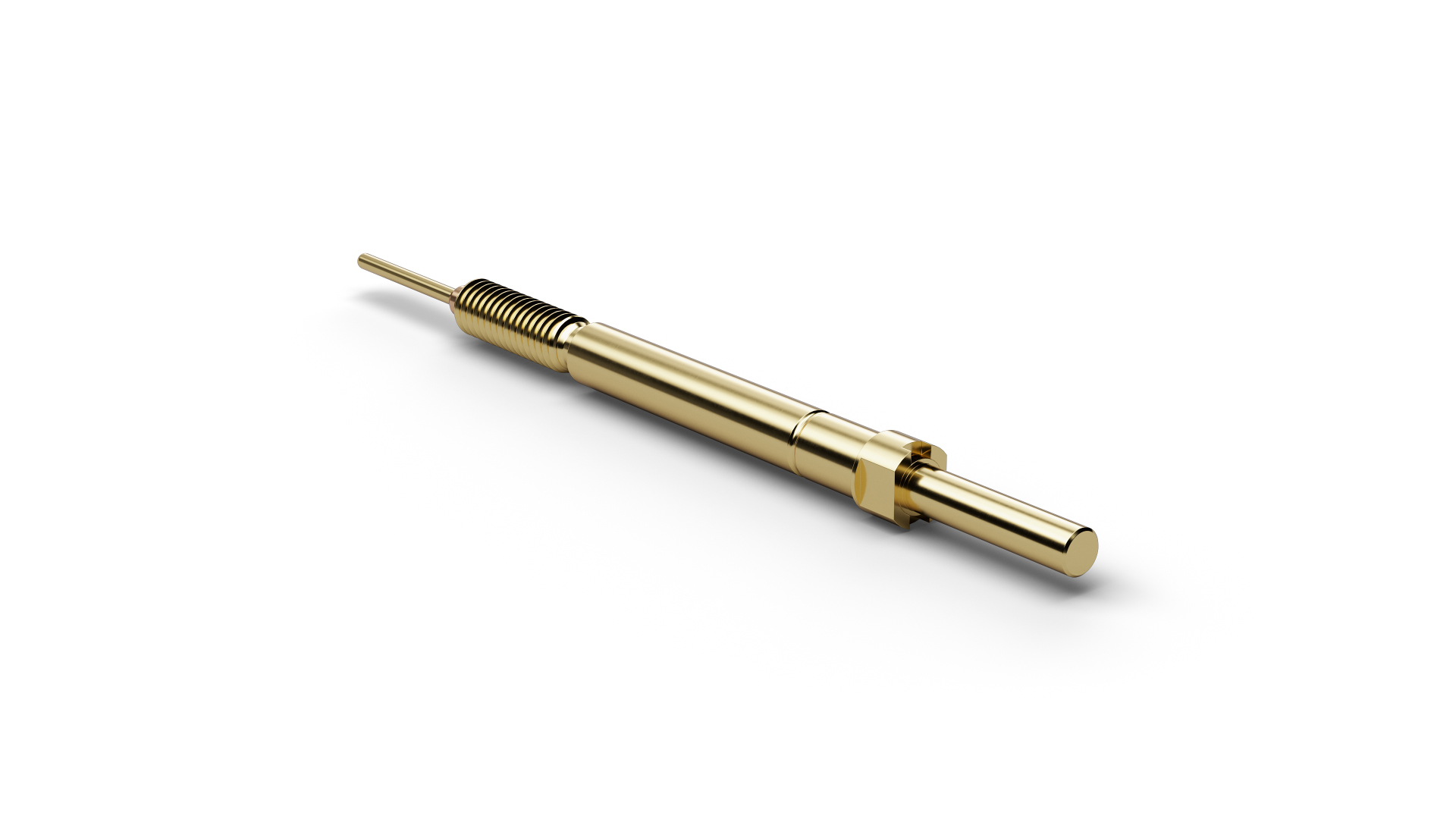

For test tasks requiring status feedback, F88516B180G1500SM27 (item number 1020105) provides spring-loaded contacting with a defined switching function. F88516B180G1500SM27 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88516B180G1500SM27 is NO (Normally Open). The specified switching travel is 2.7 mm. F88516B180G1500SM27 combines a pitch of 3.5 mm / 138 mil with tip style 16 (Flat) and a tip diameter of 1.8 mm. F88516B180G1500SM27 operates with 1500 cN spring force and 4 mm nominal travel.
