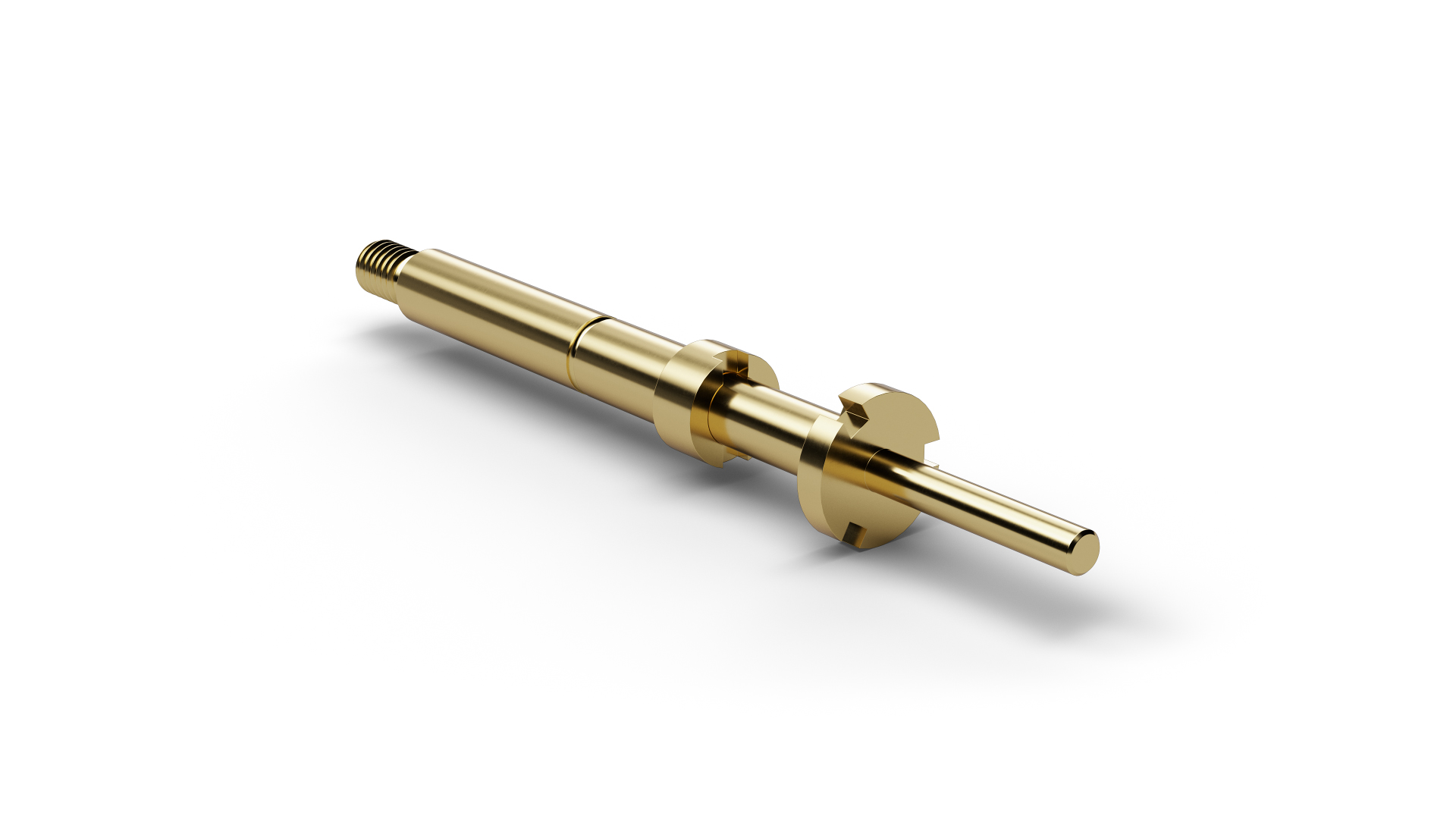

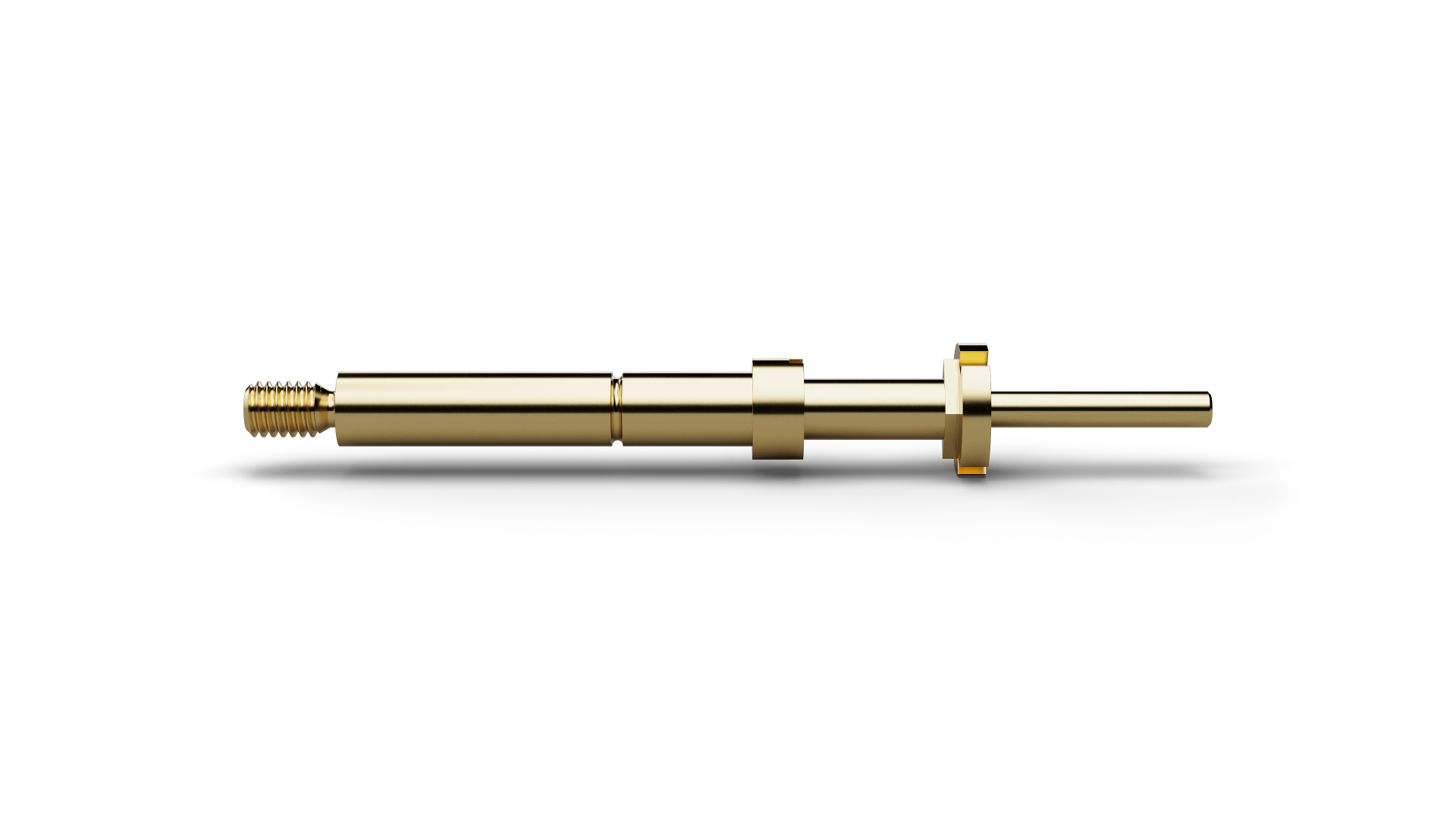

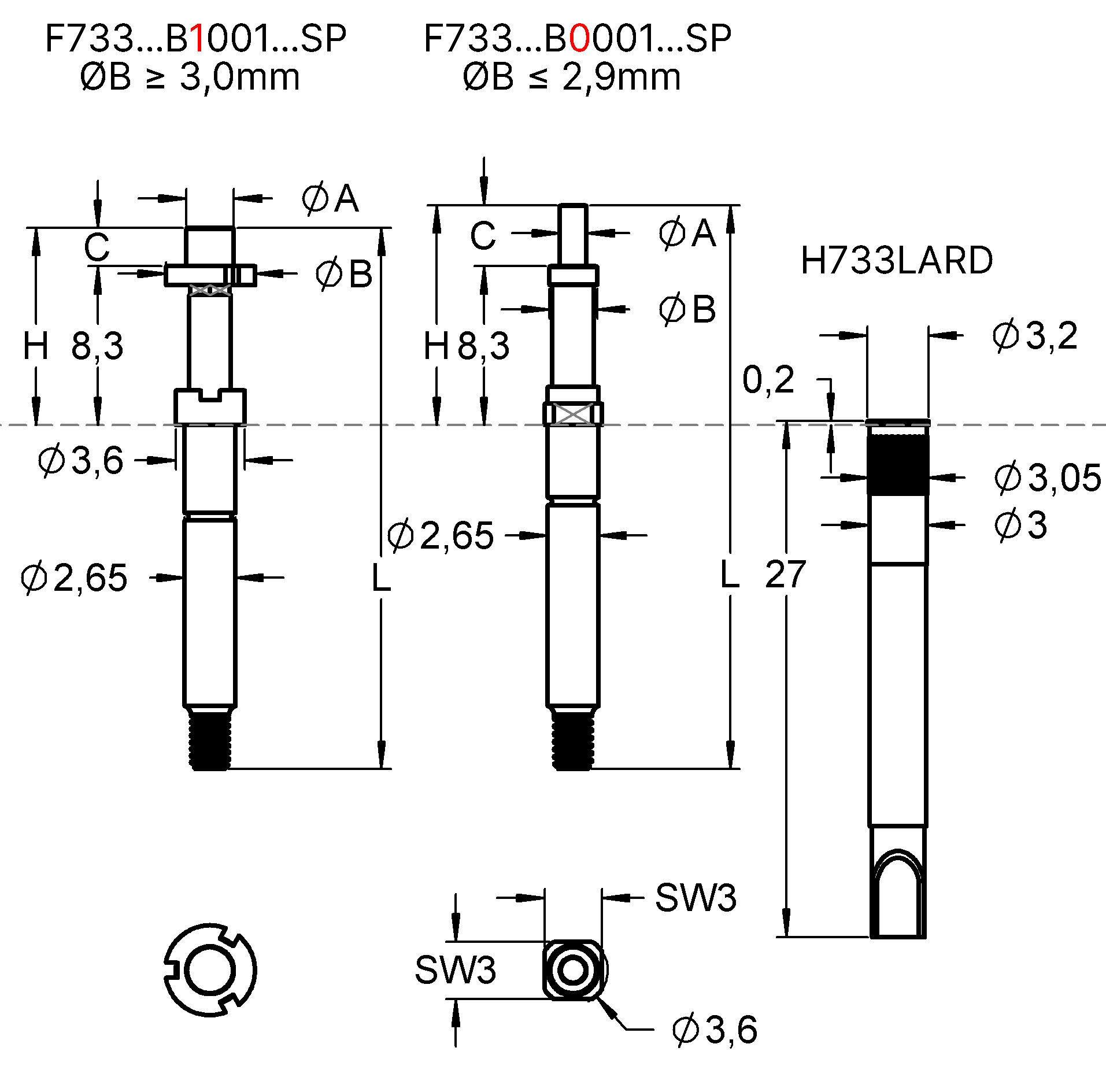

F73316B1083G150SP (item number 1020205) is a Step Probe for defined contacting of recessed or housing-guided electrical contacts. On F73316B1083G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 1.3 mm, plate diameter 4.7 mm, pin length 8 mm. On F73316B1083G150SP, a pitch of 4 mm / 157 mil is combined with 150 cN spring force and 4 mm nominal travel. For F73316B1083G150SP, the specified continuous current is 10 A. The plunger in F73316B1083G150SP is made of beryllium copper and is gold-plated.
