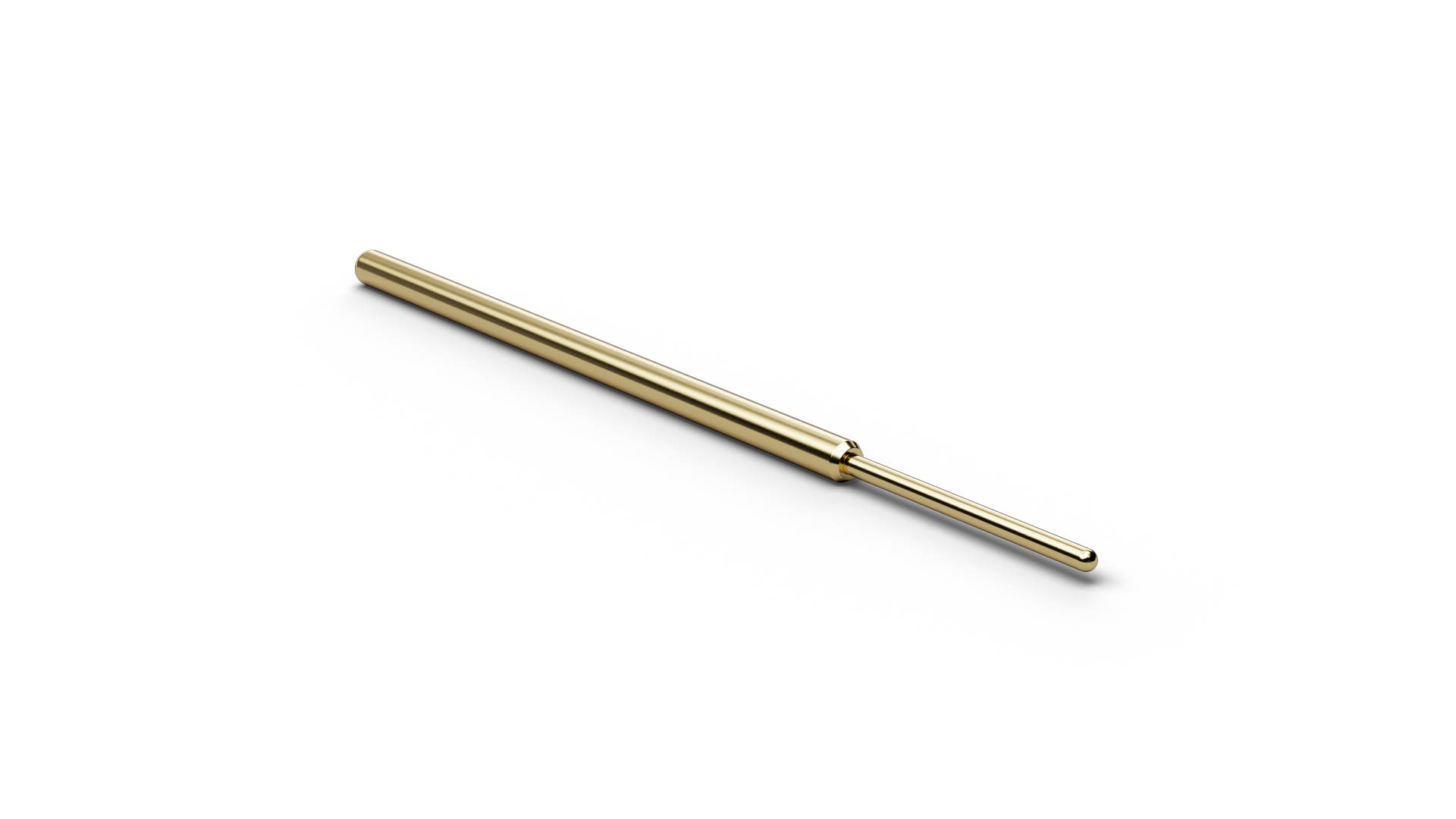

The Basic Contact Probe F70111B050G070 (item number 1024502) is a spring-loaded probe for temporary electrical contact with test points. With tip style 11 (Spherical), F70111B050G070 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F70111B050G070 combines a pitch of 1.9 mm / 75 mil with tip style 11 (Spherical) and a tip diameter of 0.5 mm. F70111B050G070 operates with 70 cN spring force and 4 mm nominal travel. F70111B050G070 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F70111B050G070 is made of beryllium copper and is gold-plated.
