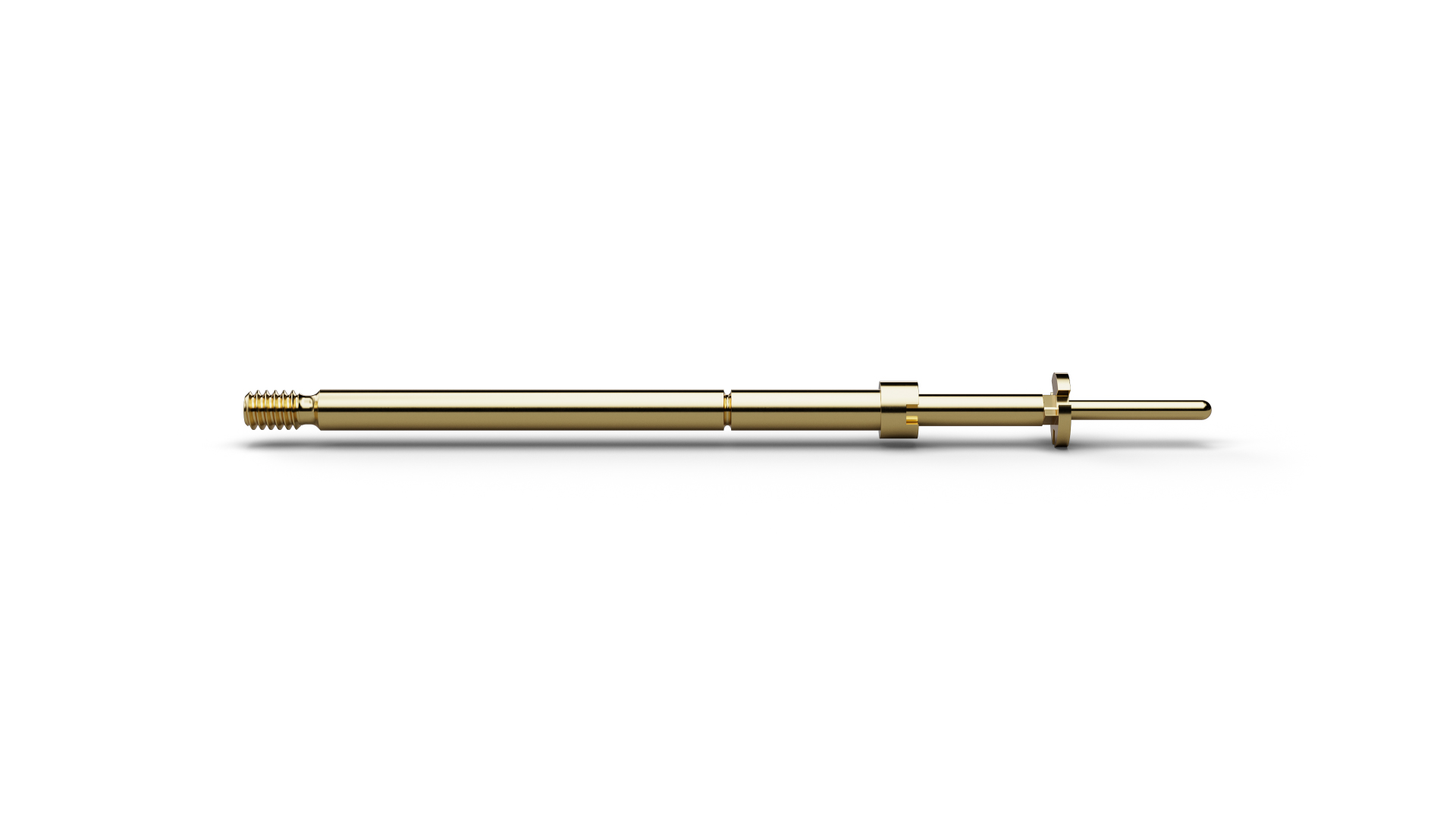

F73211B1091G150SP (item number 1024763) belongs to the Step Probe range for electrical position and presence checks in wire-harness testing. On F73211B1091G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 0.8 mm, plate diameter 3 mm, pin length 5.8 mm. On F73211B1091G150SP, a pitch of 2.54 mm / 100 mil is combined with 150 cN spring force and 4 mm nominal travel. For F73211B1091G150SP, the specified continuous current is 5 A. The plunger in F73211B1091G150SP is made of beryllium copper and is gold-plated.
