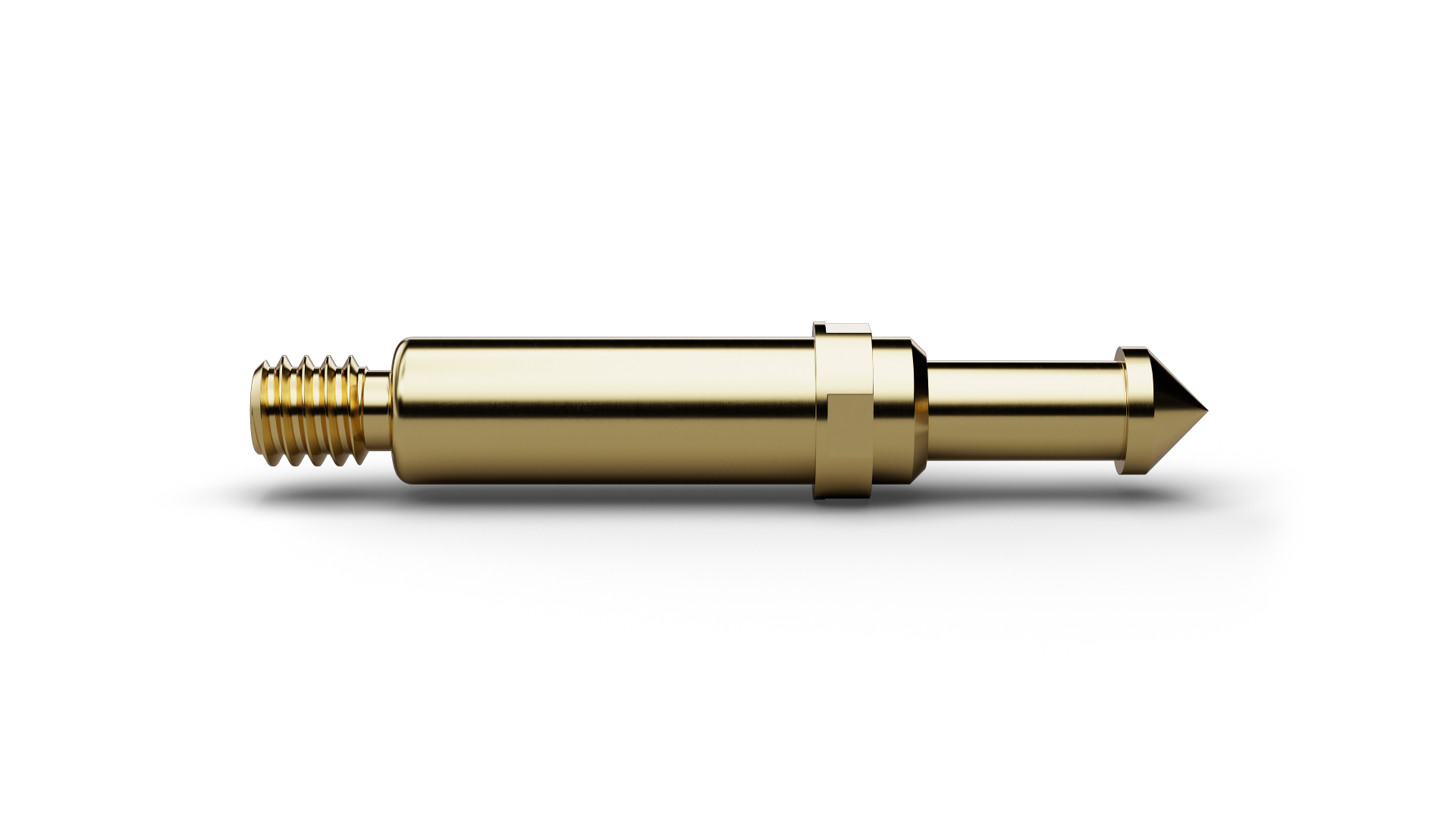

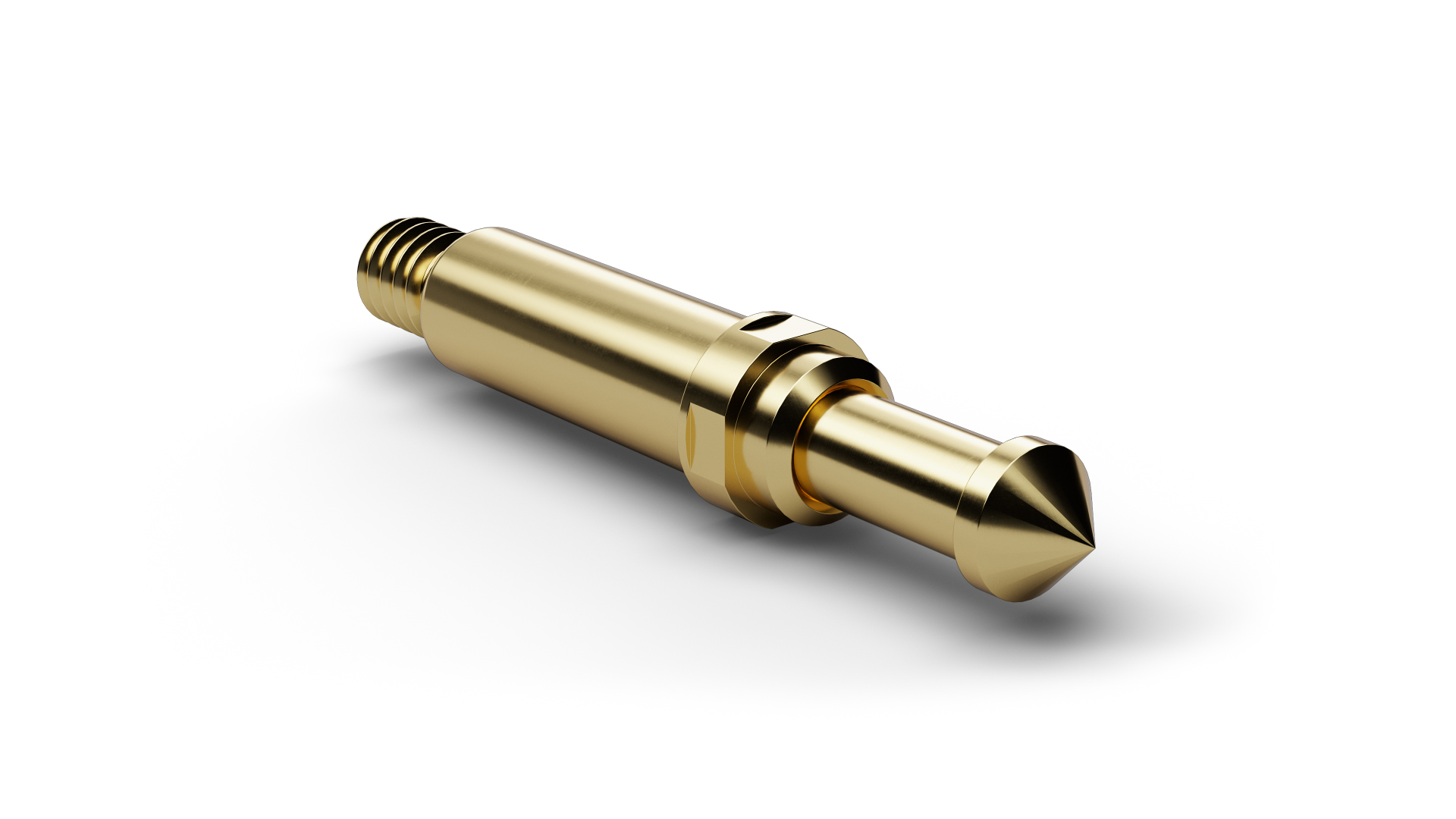

The Basic Threaded Probe F72302B230G150 (item number 1025378) is a spring-loaded Contact Probe with threaded installation. The threaded mounting of F72302B230G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F72302B230G150 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F72302B230G150 uses an M2 thread. On F72302B230G150, a pitch of 4 mm / 157 mil is combined with 150 cN spring force and 2.8 mm nominal travel. The electrical rating of F72302B230G150 combines 10 A continuous current with 15 mΩ typical contact resistance.
