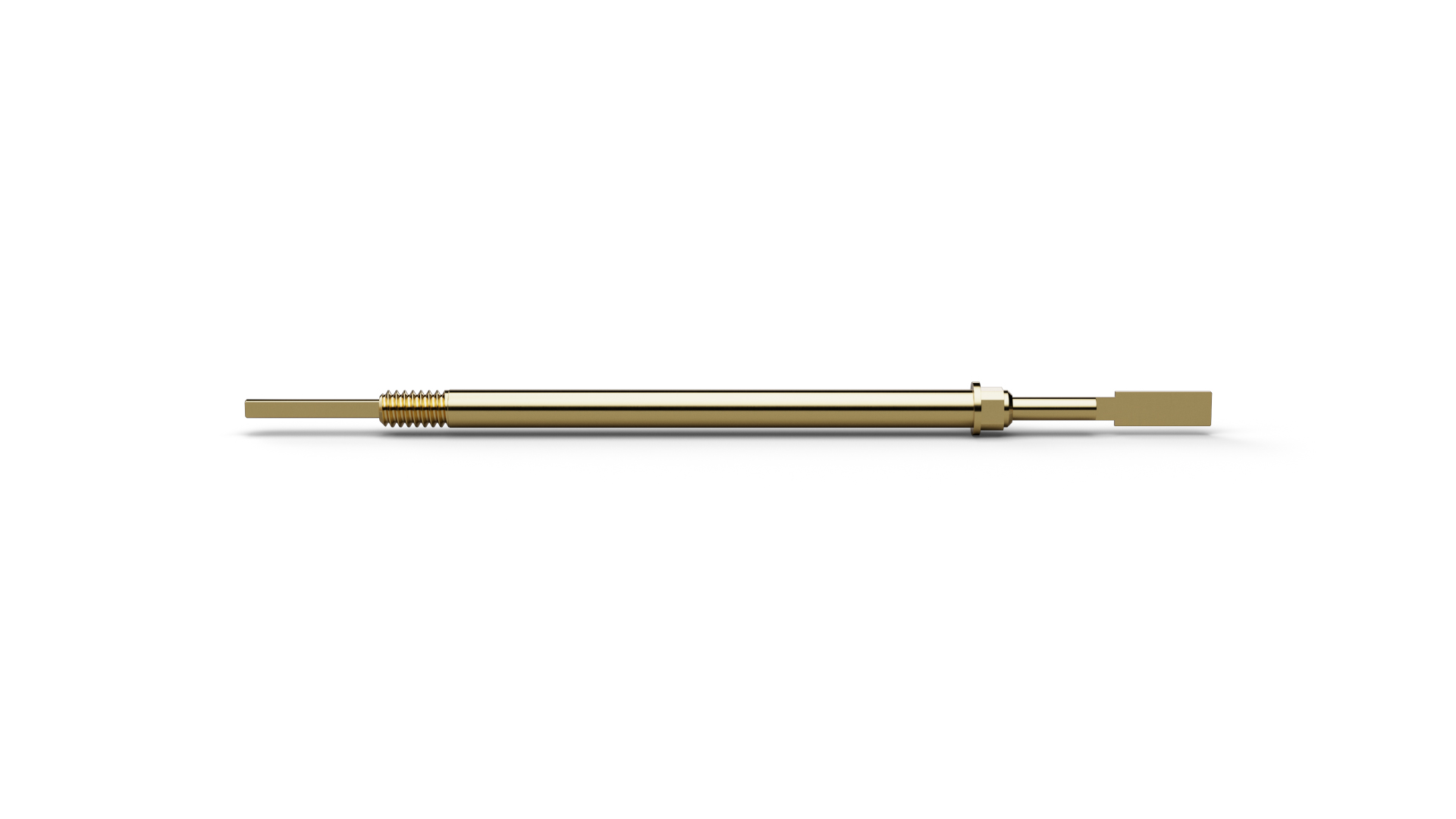

For orientation-sensitive connectors, F75684B0009G300 (item number 1030356) provides contacting that is protected against unwanted rotation. On F75684B0009G300, tip style 84 (SpadeØ > plungerØ stepped) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. Orientation-relevant dimensions include spade diameter 1.5 mm, spade width 0.25 mm, spade length 5 mm. F75684B0009G300 combines a pitch of 2.54 mm / 100 mil with tip style 84 (SpadeØ > plungerØ stepped) and a tip diameter of 1.5 mm. F75684B0009G300 operates with 300 cN spring force and 4 mm nominal travel. F75684B0009G300 is specified for 5 A continuous current.
