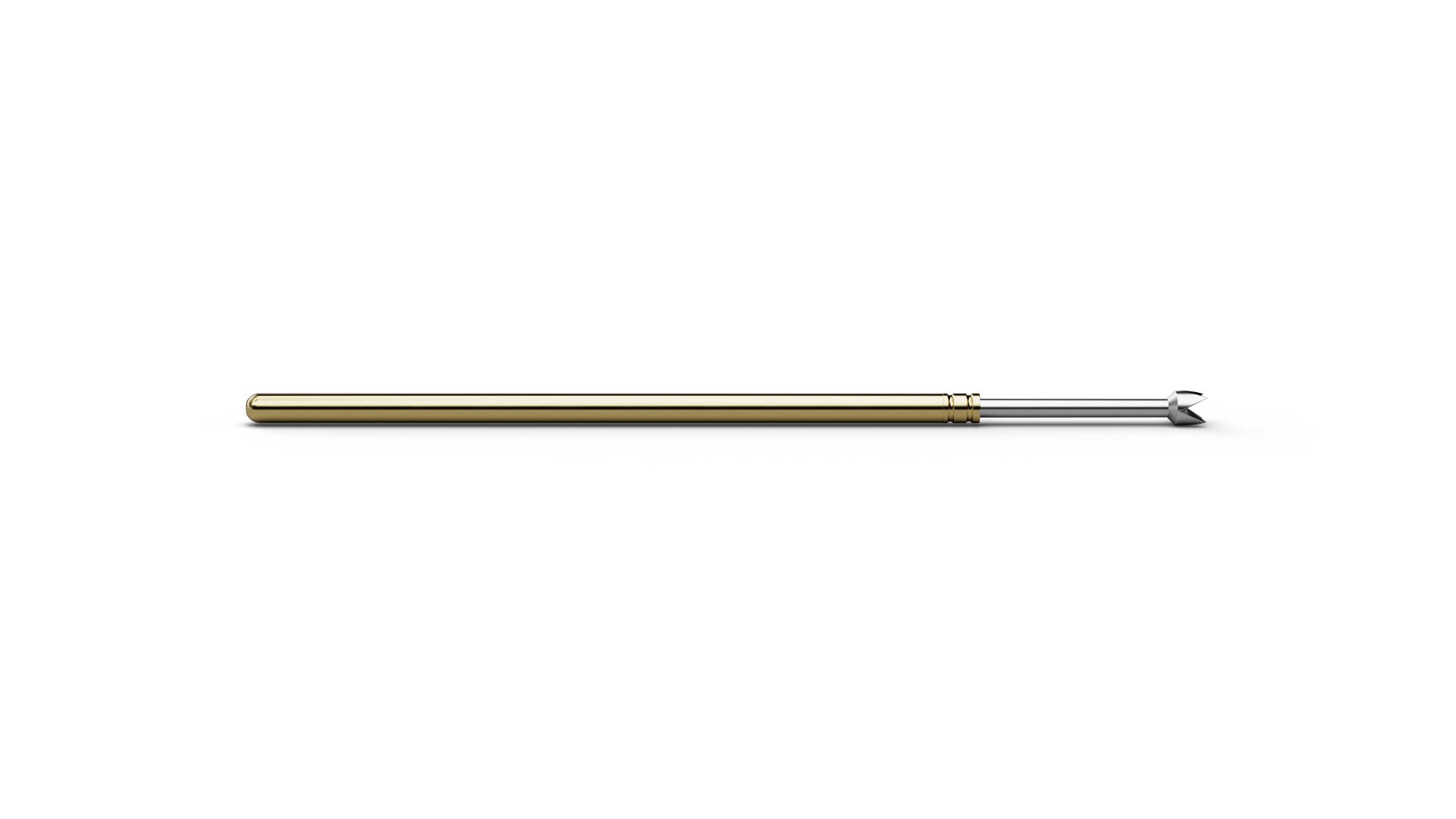

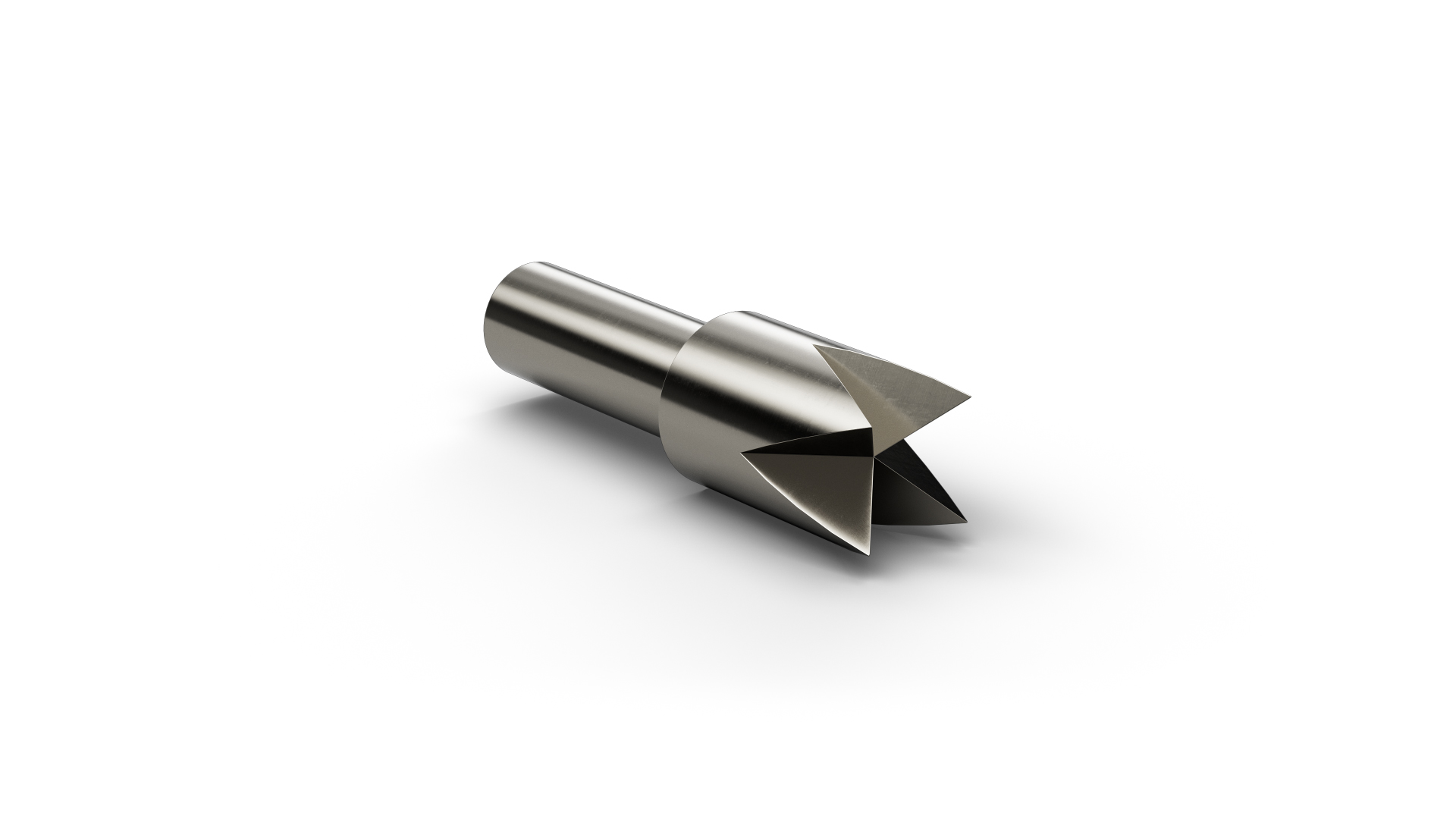

The Basic Contact Probe F07514S120P250HP (item number 1030563) is a spring-loaded probe for temporary electrical contact with test points. With tip style 14 (4-point crown stepped (self-cleaning)), F07514S120P250HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F07514S120P250HP combines a pitch of 1.9 mm / 75 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. For F07514S120P250HP, spring force is 250 cN at a nominal travel of 4.3 mm. F07514S120P250HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07514S120P250HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
