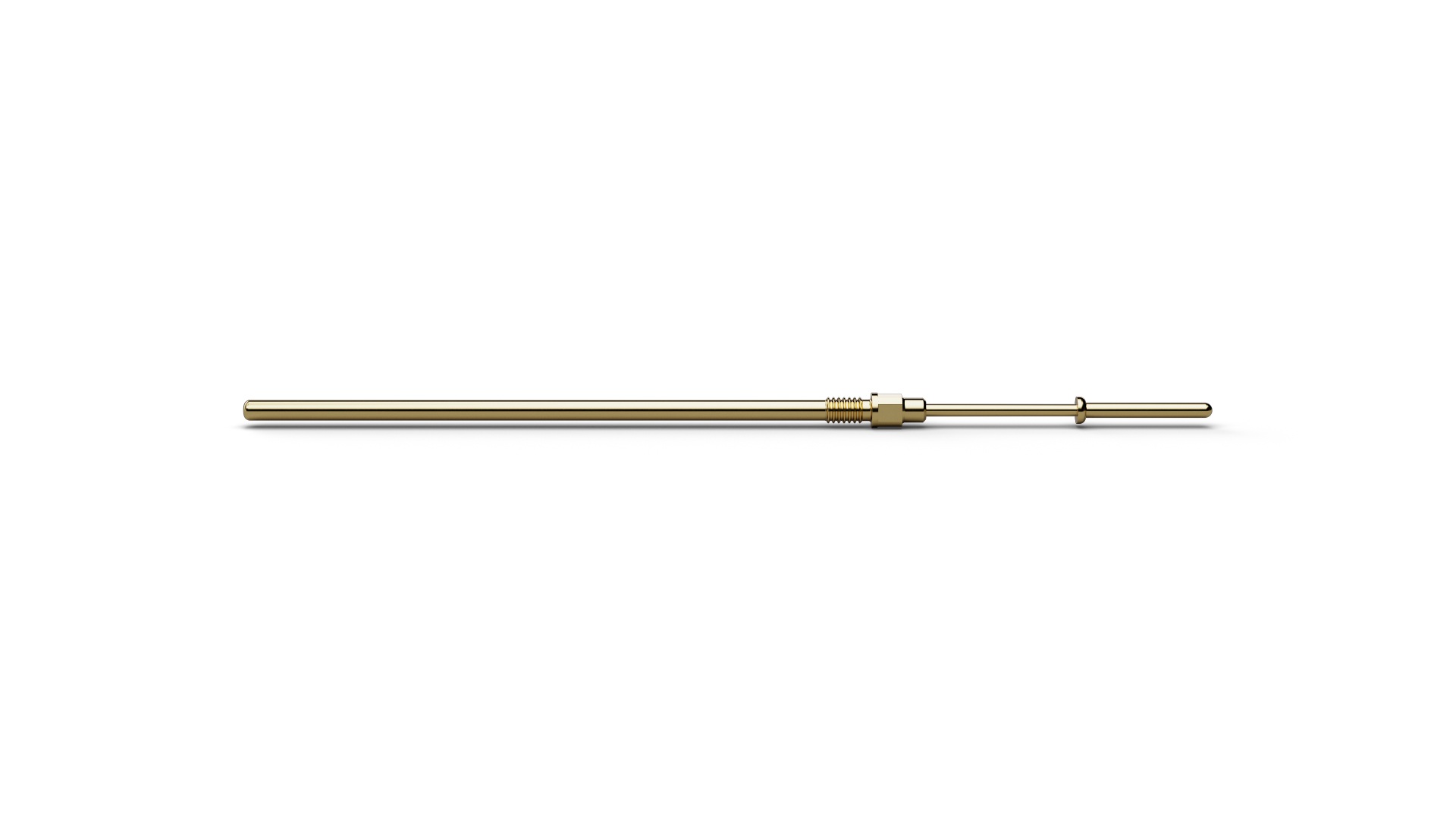

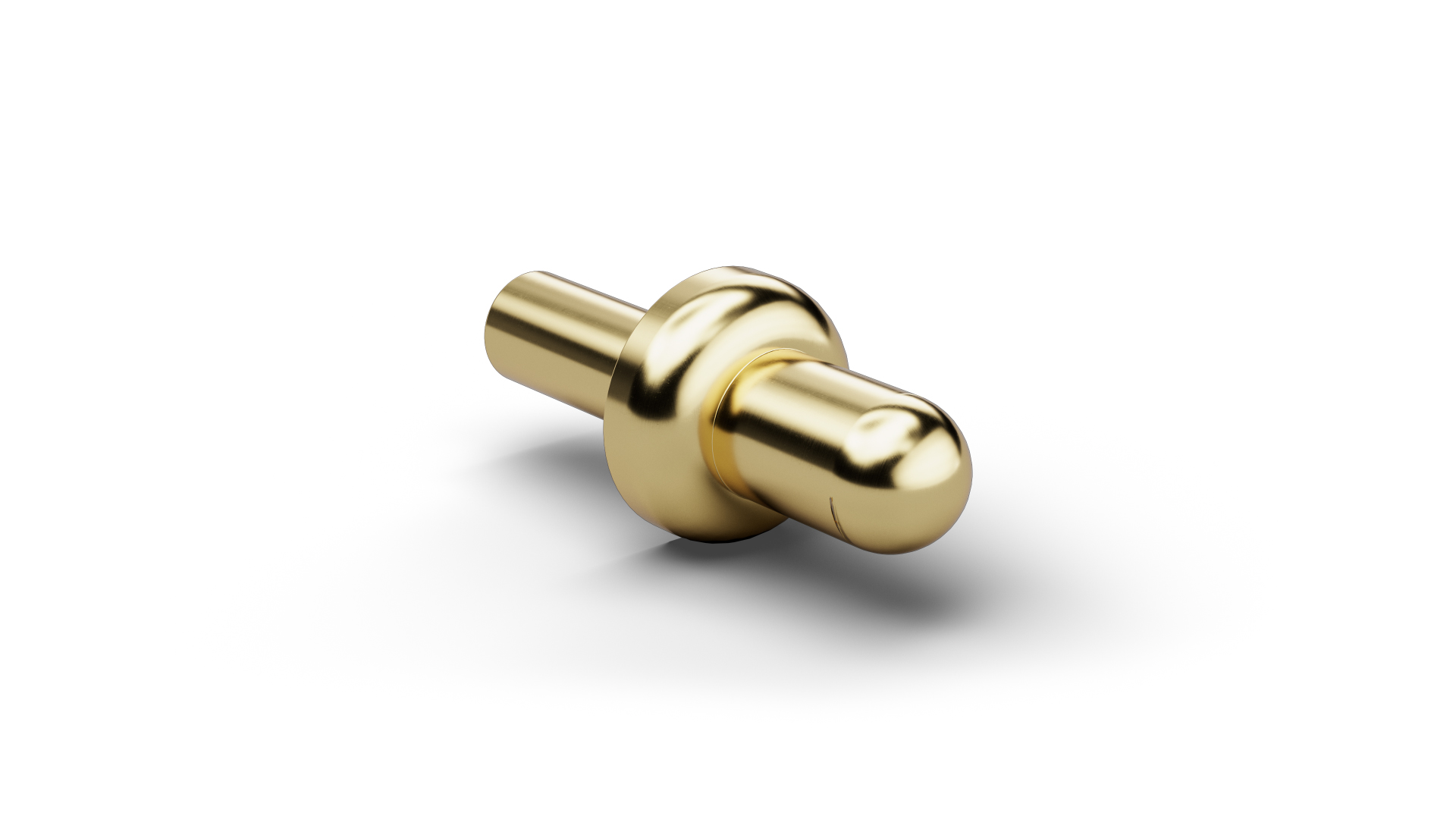

F73012B0017G110SP (item number 1030754) belongs to the Step Probe range for electrical position and presence checks in wire-harness testing. On F73012B0017G110SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 0.5 mm, plate diameter 0.9 mm, pin length 4.2 mm. On F73012B0017G110SP, a pitch of 1.27 mm / 50 mil is combined with 110 cN spring force and 4 mm nominal travel. The continuous-current rating of F73012B0017G110SP is 3 A. The plunger in F73012B0017G110SP is made of beryllium copper and is gold-plated.
