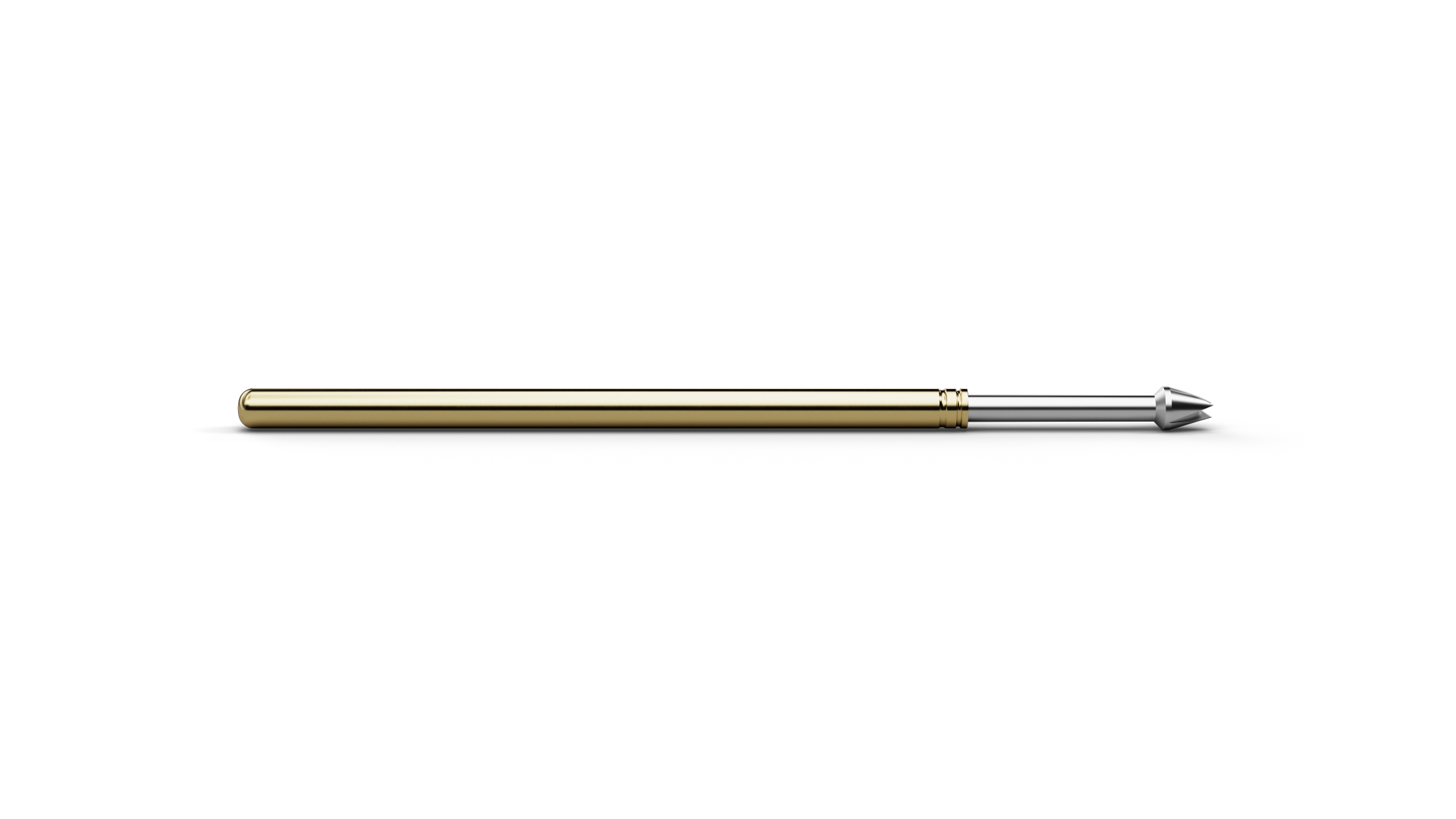

The Basic Contact Probe F10035S150P300 (item number 1036218) is a spring-loaded probe for temporary electrical contact with test points. With tip style 35 (3-point crown stepped (self-cleaning)), F10035S150P300 combines ICT/FCT use with a geometry intended for solder pads and vias. F10035S150P300 combines a pitch of 2.54 mm / 100 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10035S150P300 operates with 300 cN spring force and 4.3 mm nominal travel. F10035S150P300 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10035S150P300 is made of steel and uses Progressive Coating.
