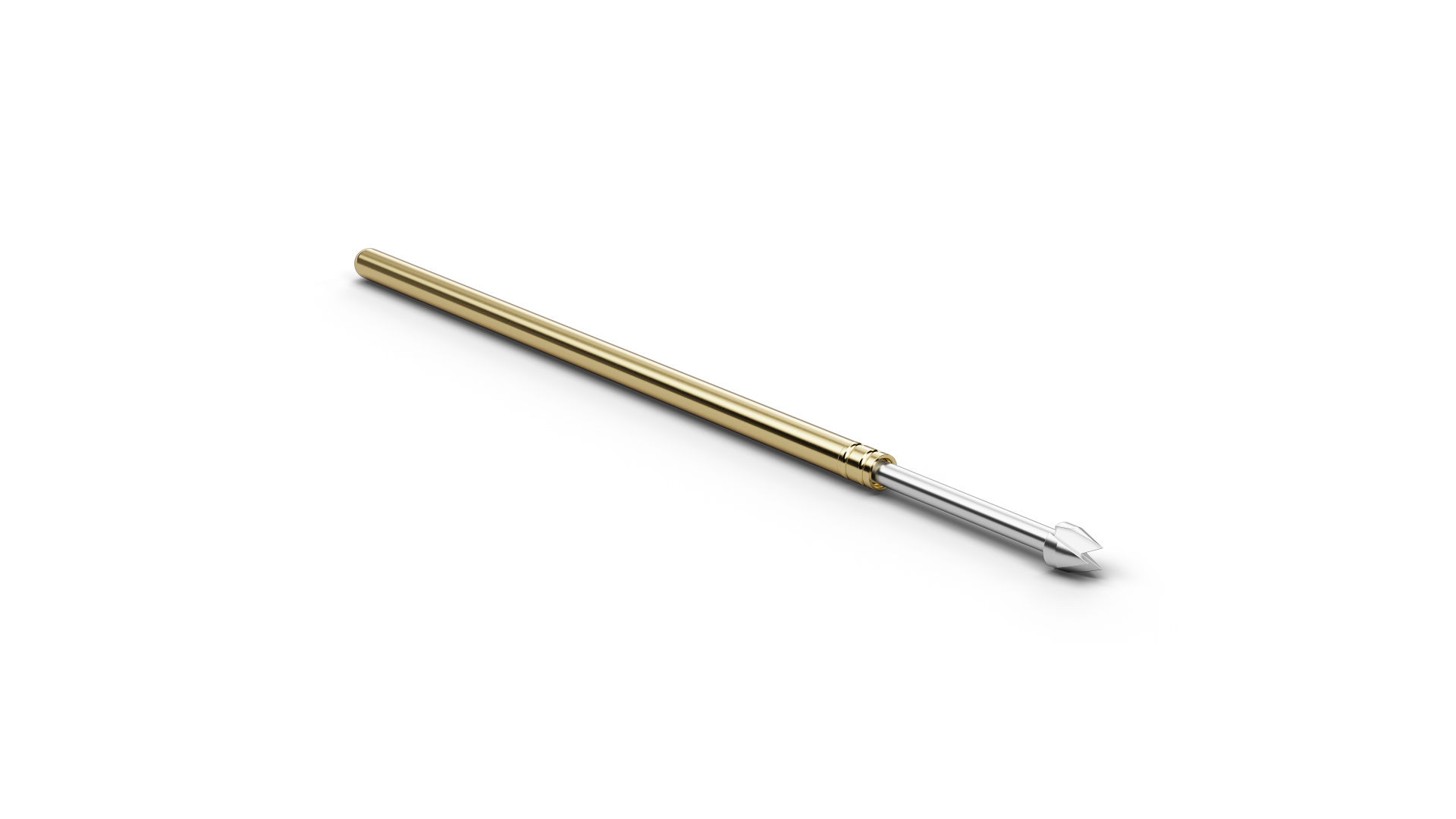

F07535S120P280 (item number 1036926) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 35 (3-point crown stepped (self-cleaning)), F07535S120P280 combines ICT/FCT use with a geometry intended for solder pads and vias. F07535S120P280 combines a pitch of 1.9 mm / 75 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. Spring force is 110 cN at a nominal travel of 4.3 mm. F07535S120P280 is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. The plunger in F07535S120P280 is made of steel and uses Progressive Coating.
