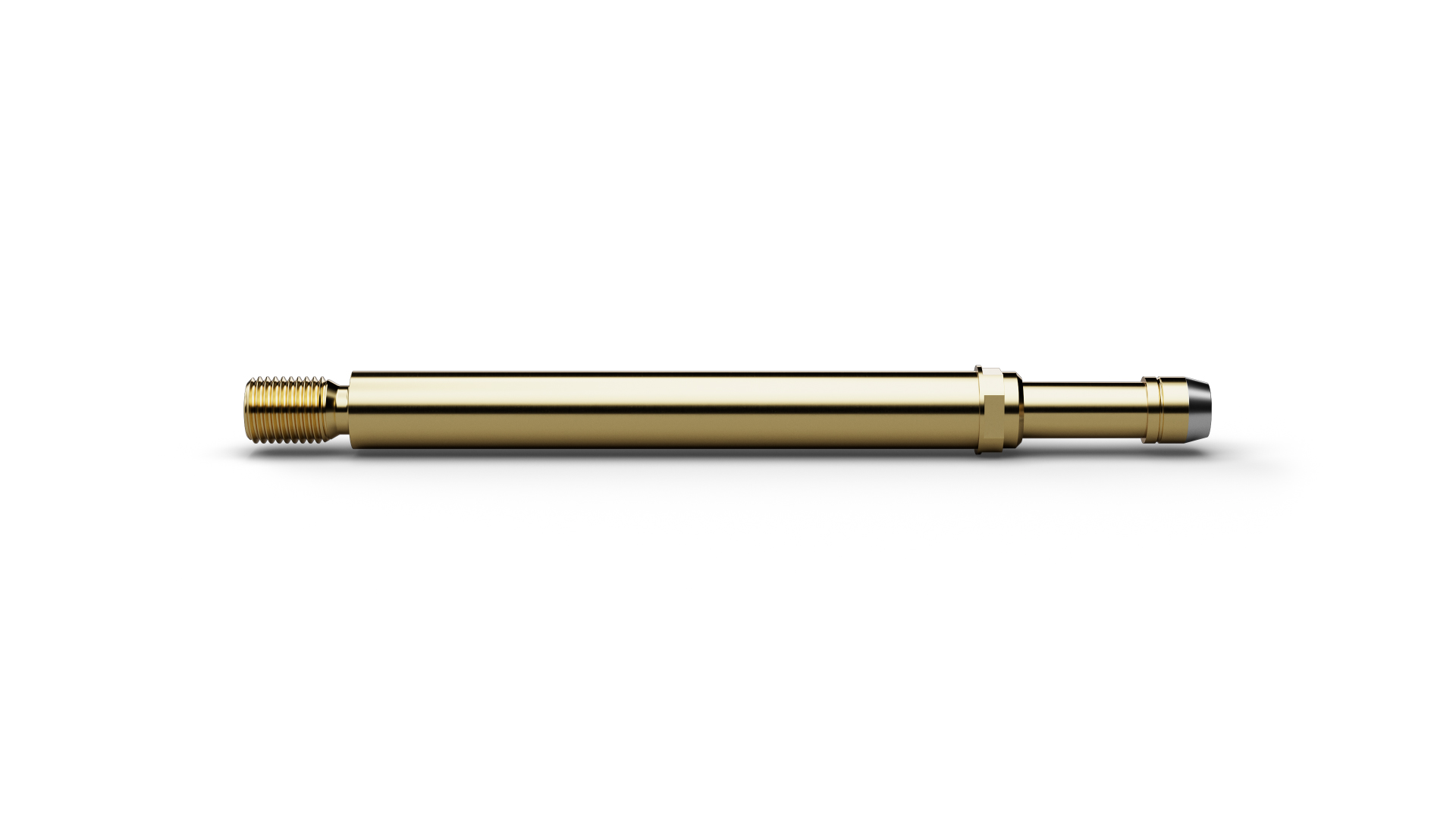

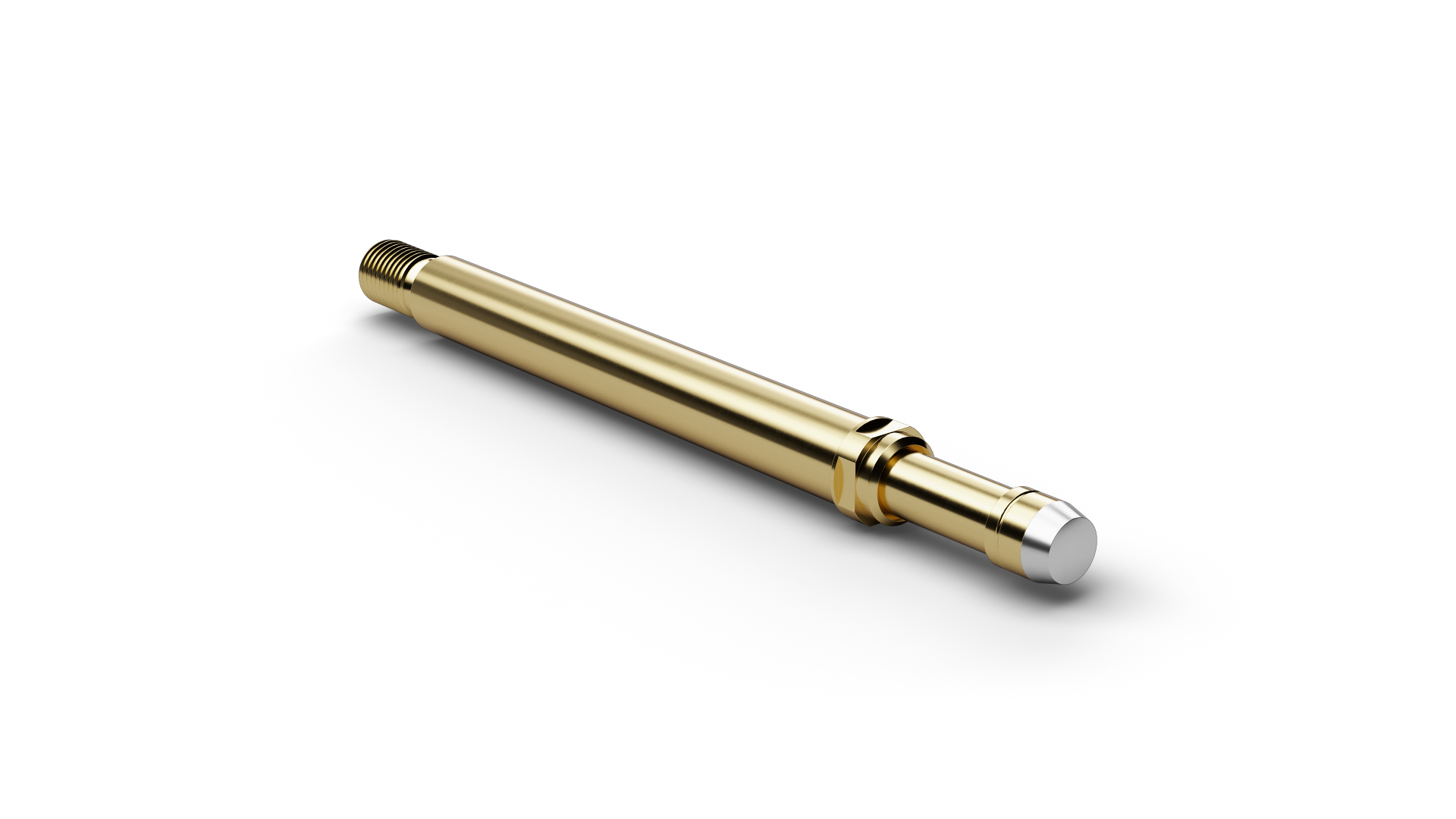

The High Current Probe HCF73512A300U1000 (item number 1044962) is designed for safe transmission of high electrical currents in test and contacting applications. HCF73512A300U1000 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF73512A300U1000, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF73512A300U1000 includes battery and power-electronics testing. The electrical rating of HCF73512A300U1000 combines 50 A continuous current with 5 mΩ typical contact resistance. For HCF73512A300U1000, spring force is 1000 cN at a nominal travel of 4.4 mm.
