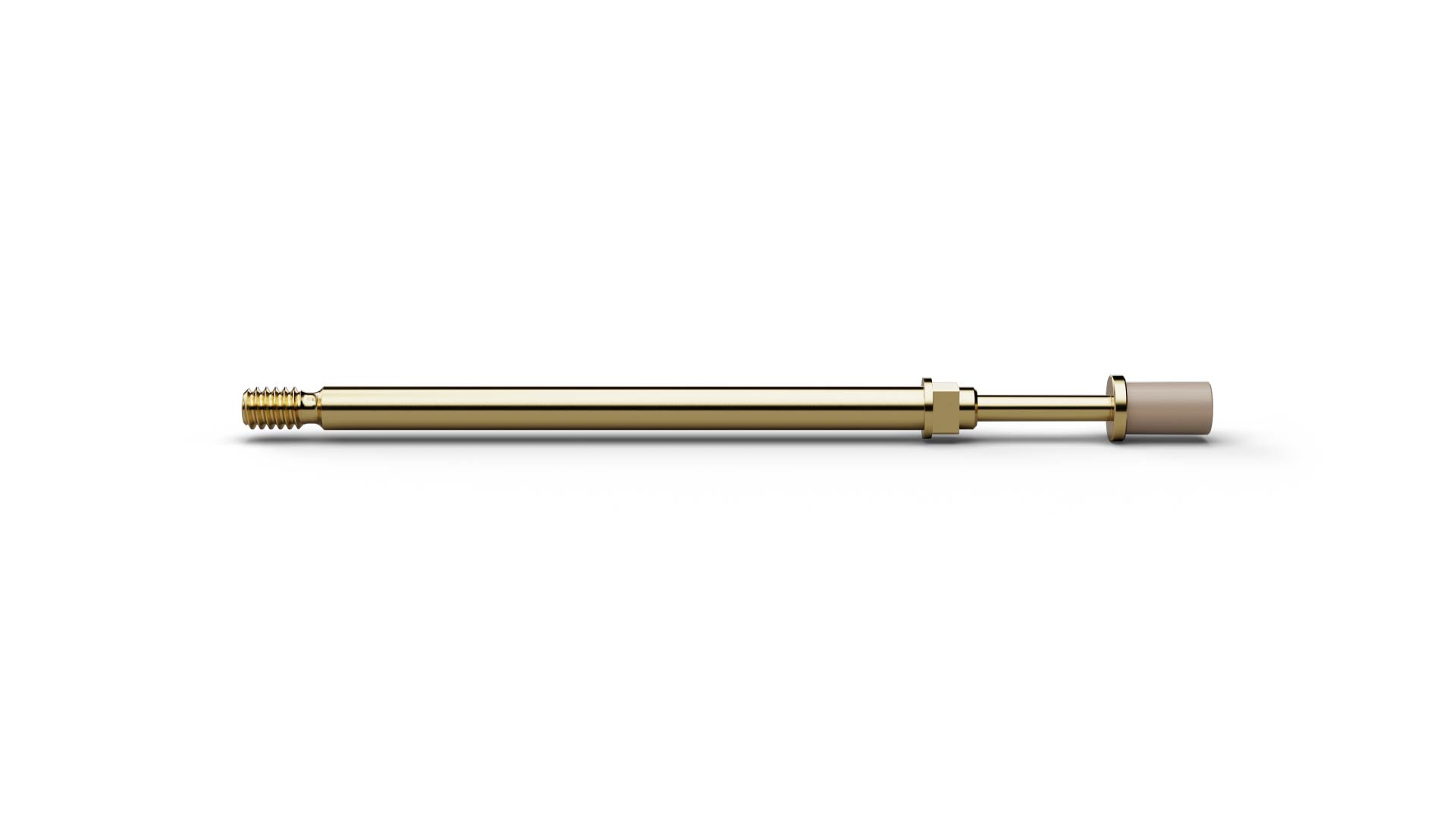

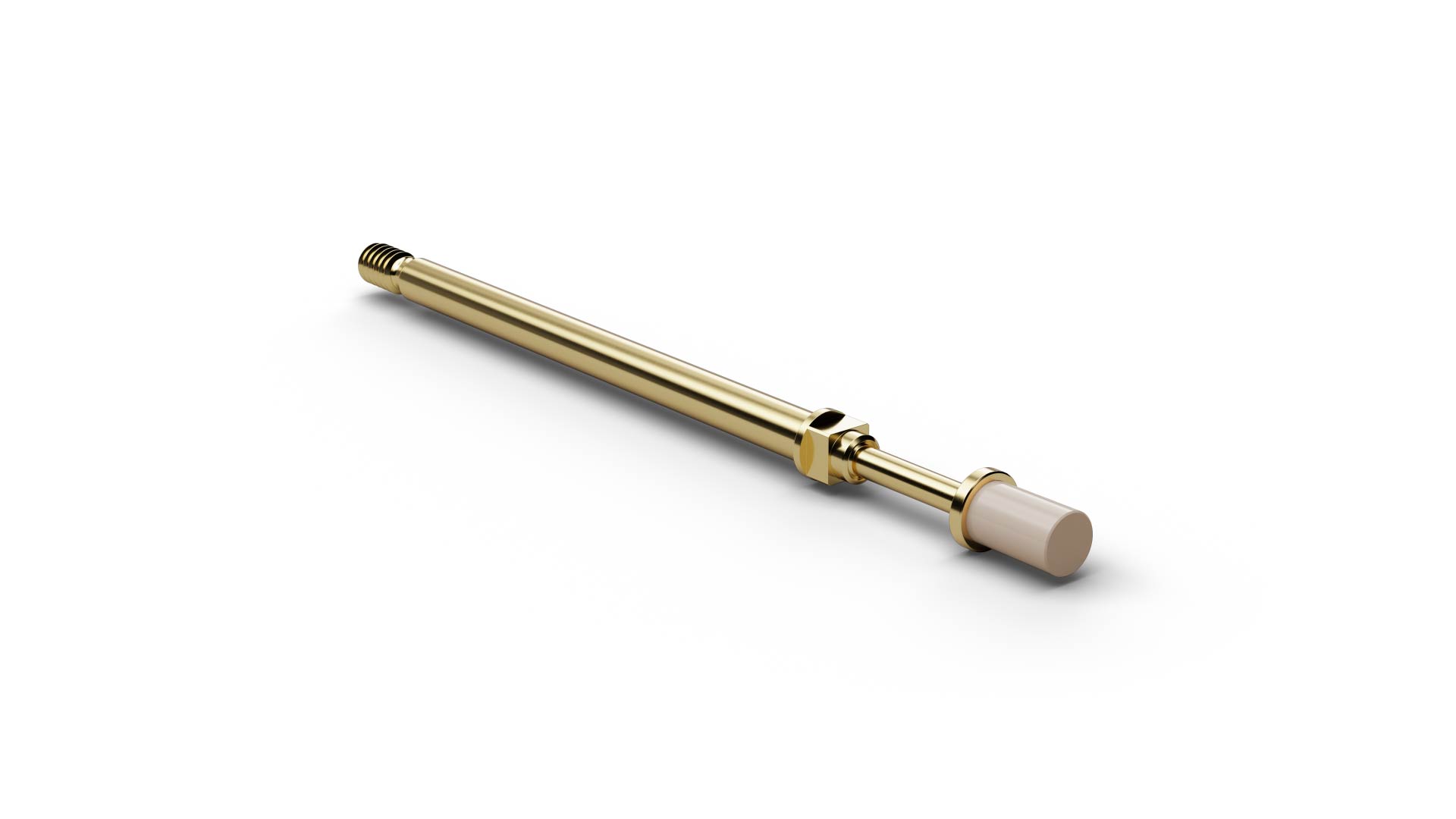

The Step Probe F73216B4090G150SP (item number 1053988) is designed for position and presence checks on contacts located in connector housings, recesses or other difficult-to-access areas. On F73216B4090G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. The design combines a pitch of 254 mm / 100 mil with tip style 16SP and a tip diameter of 2 mm. For F73216B4090G150SP, spring force is 150 cN at a nominal travel of 4 mm. For F73216B4090G150SP, the specified continuous current is 5 A.
