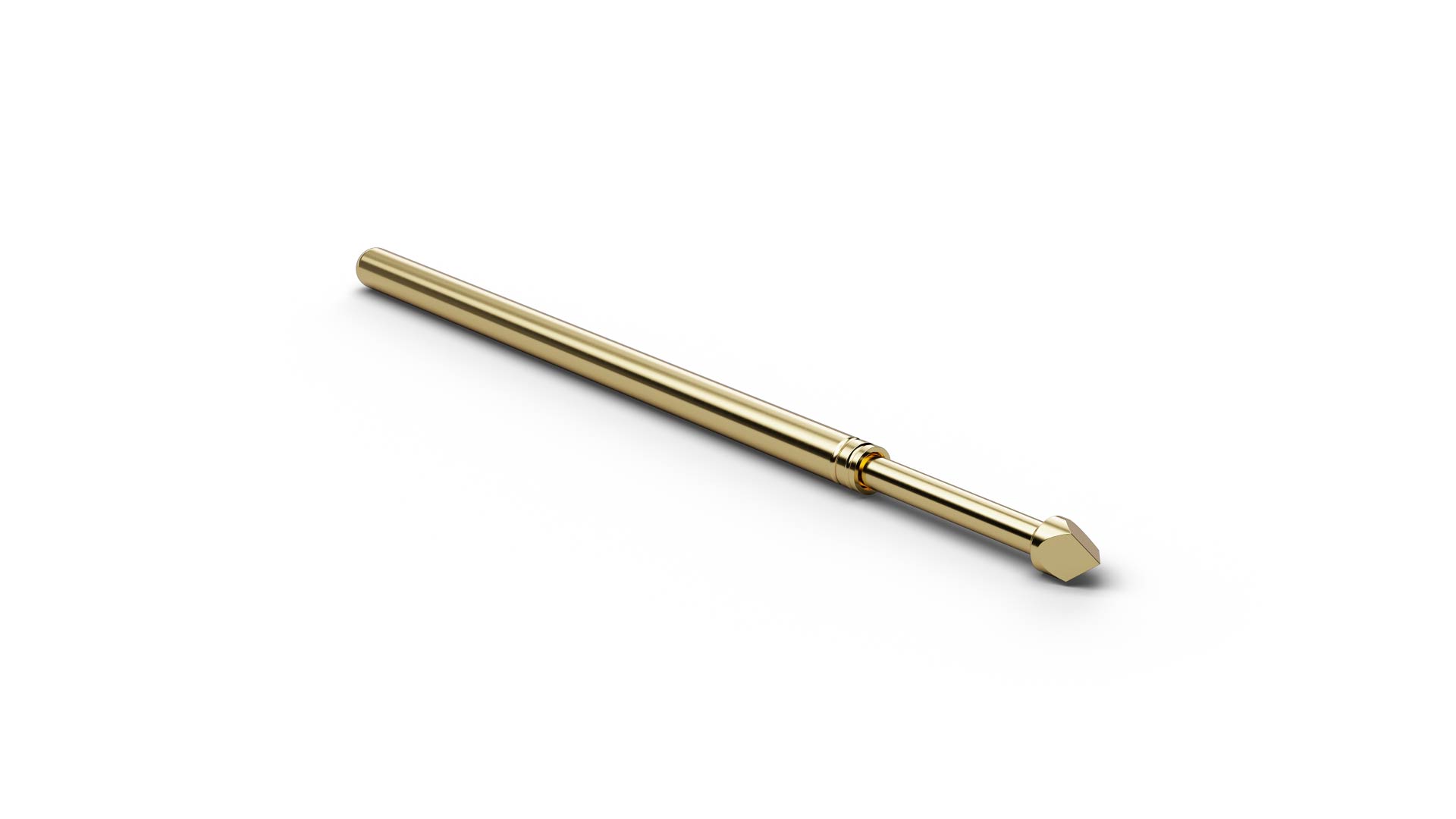

As a Basic Contact Probe, F10015B150G225 (item number 1092040) establishes a spring-loaded electrical connection to the test point. With tip style 15 (Triangular 45° stepped), F10015B150G225 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10015B150G225 combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 1.5 mm. For F10015B150G225, spring force is 225 cN at a nominal travel of 4.3 mm. F10015B150G225 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10015B150G225 is made of beryllium copper and is gold-plated.
