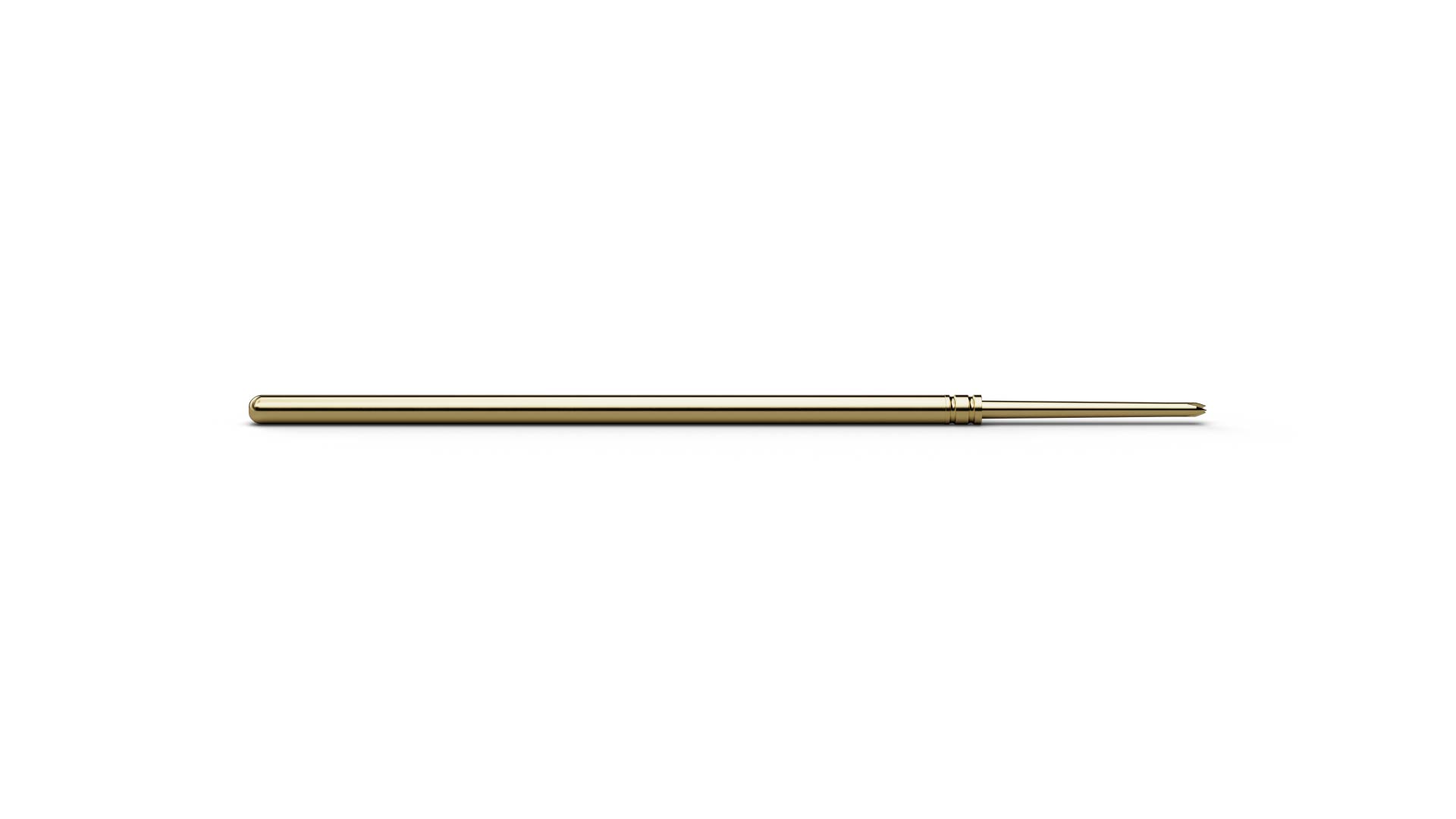

The Basic Contact Probe F07535S050L280 (item number 1092210) is a spring-loaded probe for temporary electrical contact with test points. With tip style 35 (3-point crown stepped (self-cleaning)), F07535S050L280 combines ICT/FCT use with a geometry intended for solder pads and vias. F07535S050L280 combines a pitch of 1.9 mm / 75 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 0.5 mm. F07535S050L280 operates with 280 cN spring force and 4.3 mm nominal travel. F07535S050L280 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07535S050L280 is made of steel and uses Longtime Gold plating.
