技術データ
| 一般的な事項 | |
|---|---|
| タイプ/ファミリー | H875 |
| ピッチ (mm/mil) | 3,50 / 138 |
| 寸法 | |
|---|---|
| 全長 (mm) | 16 |
| プレスリング径 (mm) | 2.8 |
| 外径 (mm) | 2.8 |
| カラー高さ (mm) | 0.2 |
| 材料および表面 | |
|---|---|
| 材料, コーティング | Plastic, Uncoated |

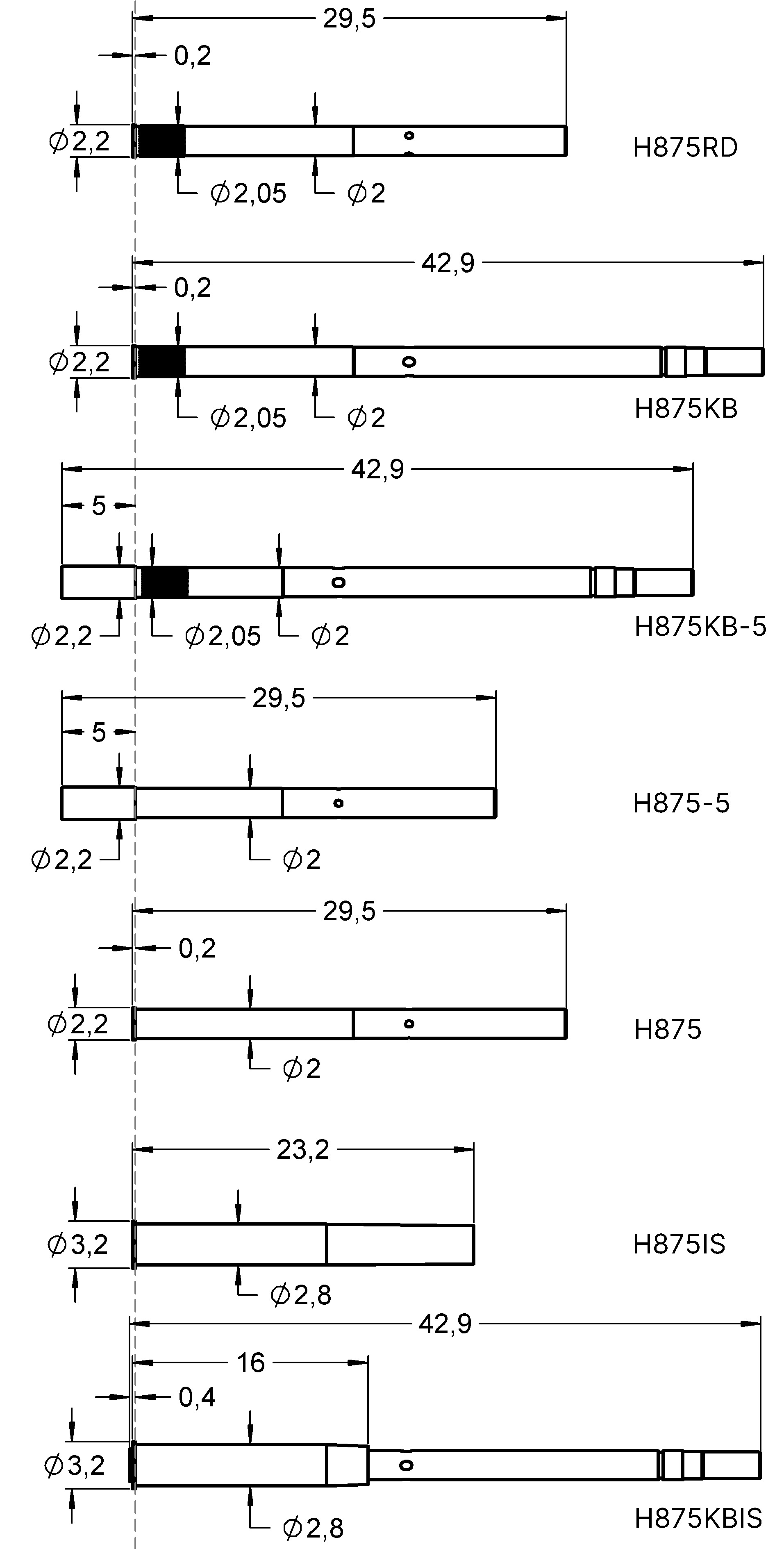

グラフィック
Beschreibung des Produkts

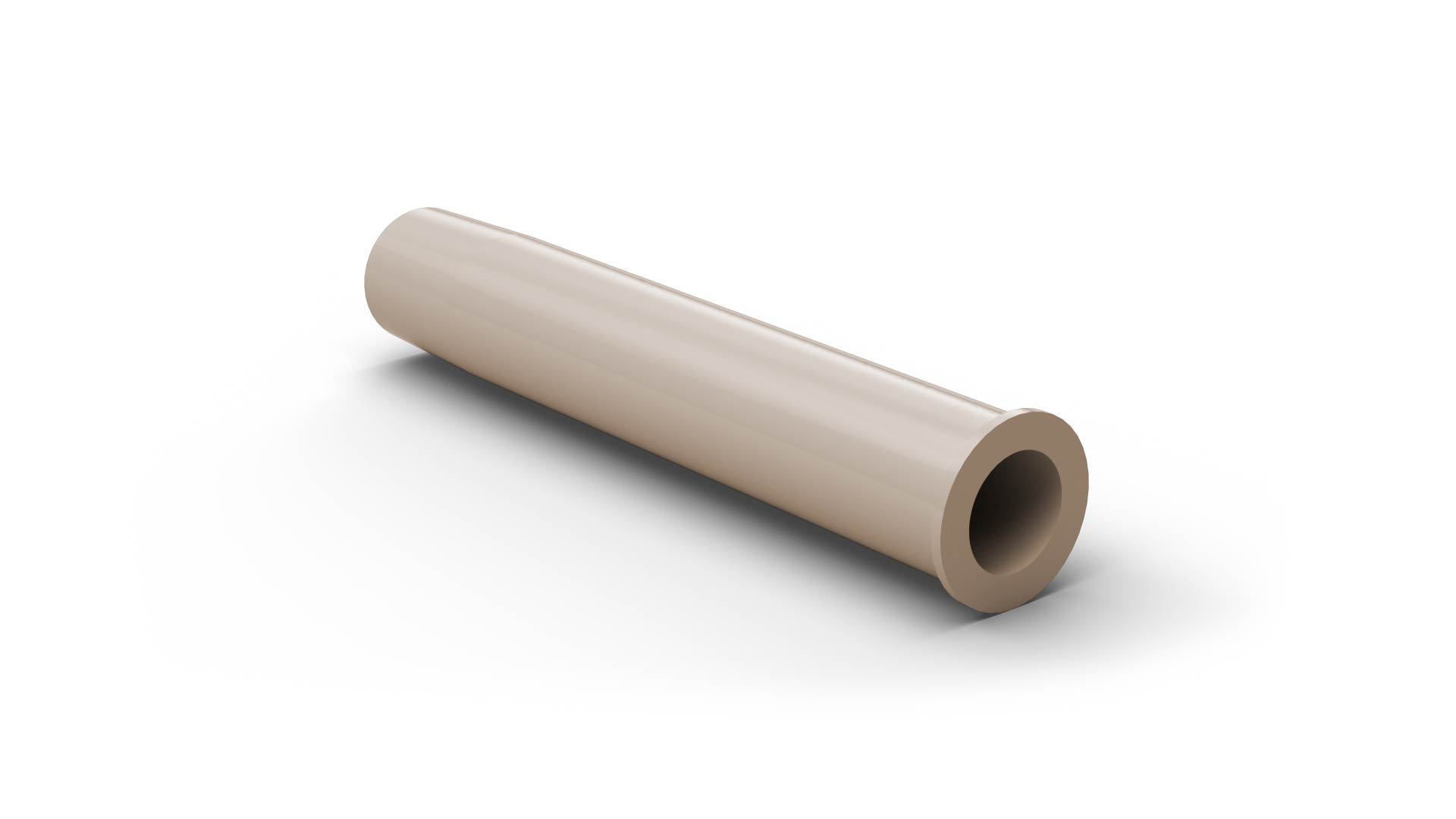

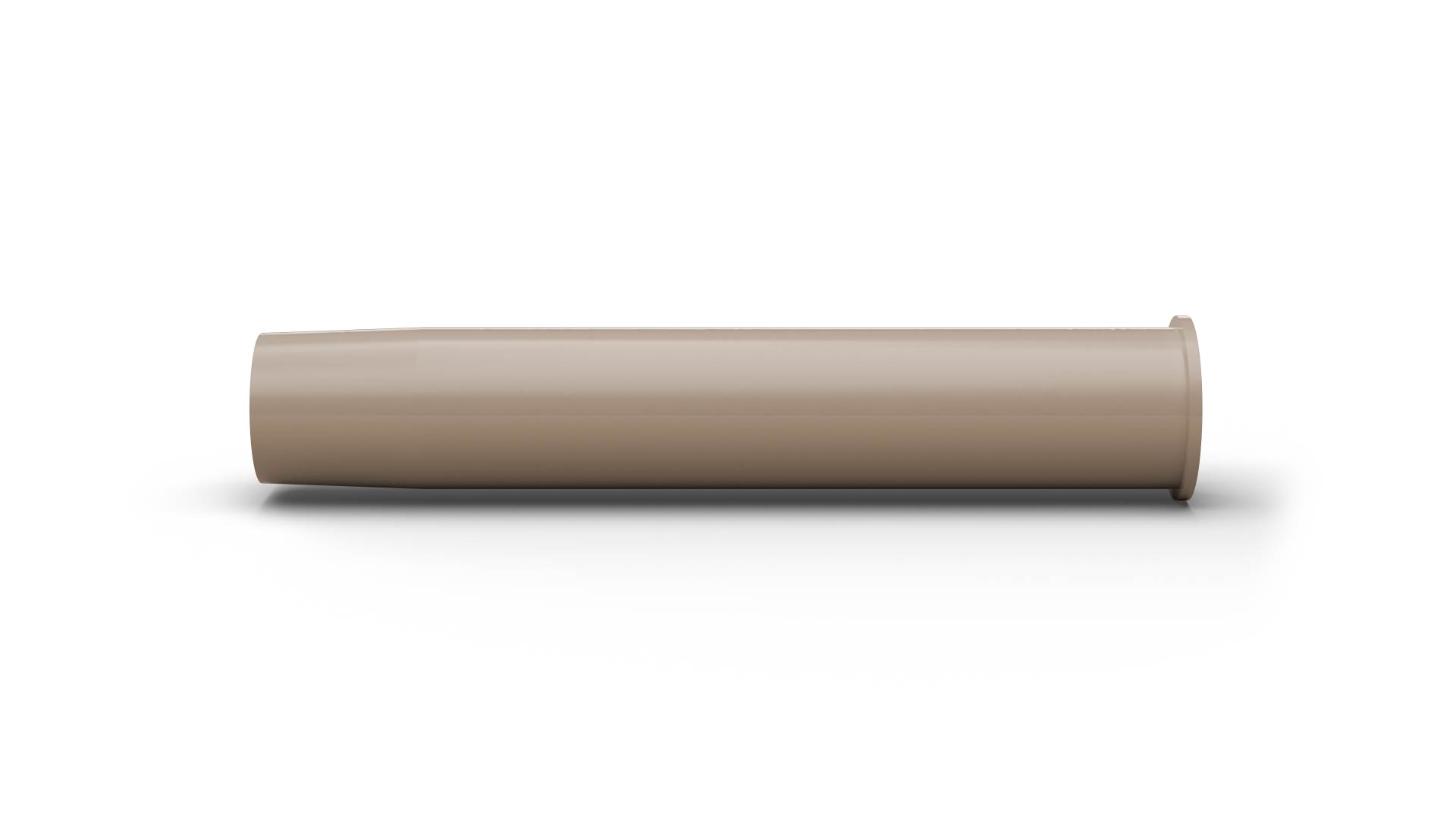

The receptacle H875IS-16 (item number 1103230) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H875IS-16 guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H875IS-16, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
