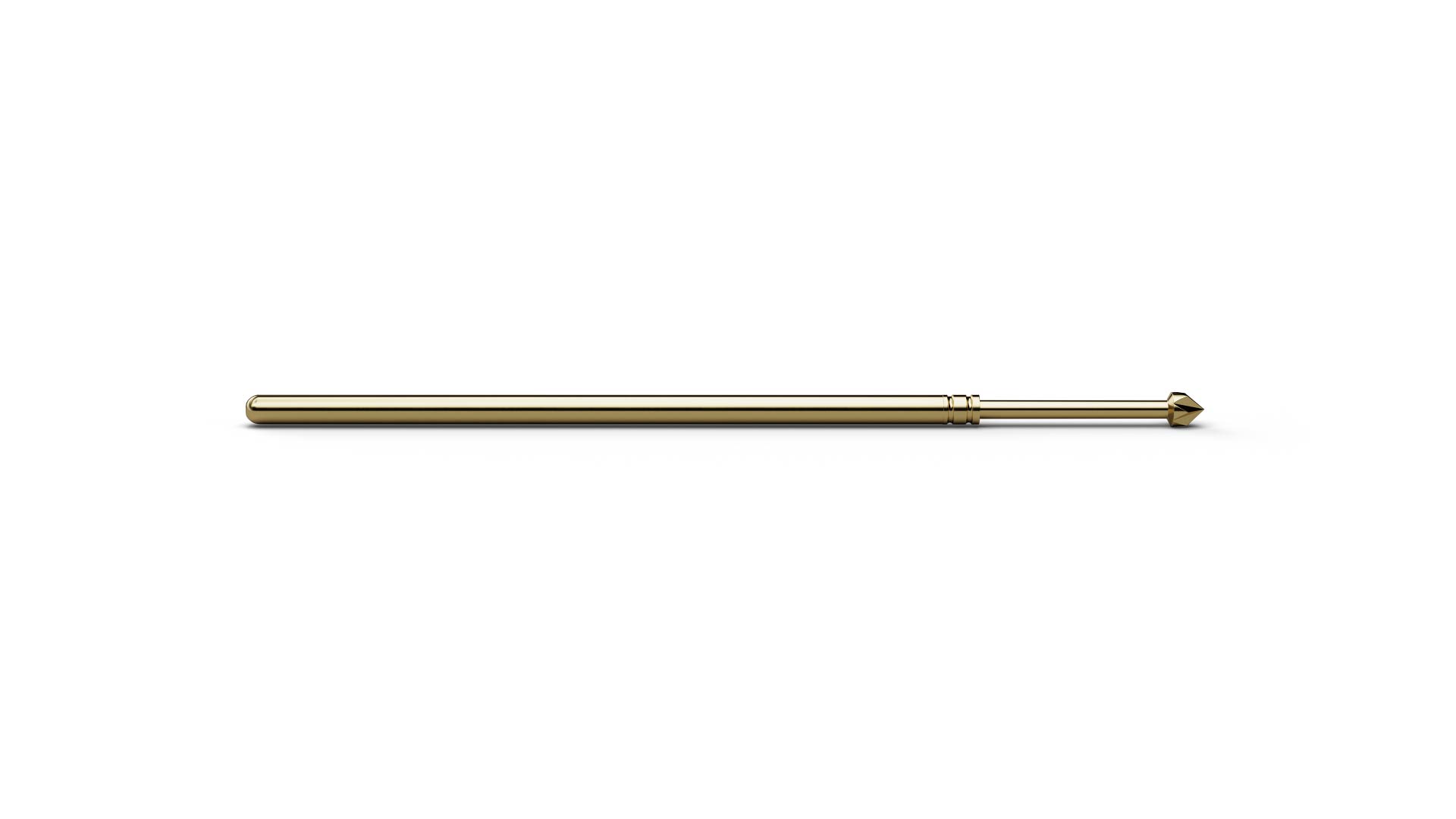

The Basic Contact Probe F07507S120L200H (item number 1112258) is a spring-loaded probe for temporary electrical contact with test points. With tip style 07 (Hexagonal 90° stepped), F07507S120L200H combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. F07507S120L200H combines a pitch of 1.9 mm / 75 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.2 mm. F07507S120L200H operates with 200 cN spring force and 4.3 mm nominal travel. F07507S120L200H is rated for 4 A continuous current with a typical contact resistance of 50 mΩ. The plunger in F07507S120L200H is made of steel and uses Longtime Gold plating. As an H version, F07507S120L200H extends the operating range to high-temperature applications up to 200 °C.
