技術データ
| 一般的な事項 | |
|---|---|
| 構成 | Coaxial Probe |
| タイプ/ファミリー | HC200 |
| ピッチ (mm/mil) | 25,0 / 984 |
| 温度 | -45°C...+200°C |
| 追加の定義 | B |
| 寸法 | |
|---|---|
| 全長 (mm) | 54.8 |
| 突出高さ (mm) | 23.5 |
| 先端形状直径 (mm) | 20 |
| バレル径 (mm) | 22 |
| カラー径 (mm) | 44 |
| 先端形状直径 (mm) 2 | 0.76 |
| 材料および表面 | |
|---|---|
| 先端形状 | 06 |
| 先端形状 2 | 21 |
| 先端形状材質 | Beryllium copper |
| 先端形状めっき | Gold |
| プランジャー材質 | Brass |
| プランジャーめっき | Silver |
| バレル材質 | Plastic |
| バレルめっき | Uncoated |
| バネ材質 | High-grade steel |
| バネめっき | Uncoated |
| プランジャー材質 2 | Beryllium copper |
| プランジャーめっき 2 | Longtime Gold |
| バネ材質 2 | High-grade steel |
| バネめっき 2 | Uncoated |
| 機械的仕様 | |
|---|---|
| 予圧 (cN) | 3500 |
| バネ圧 (cN) | 7150 |
| 推奨ストローク (mm) | 5.6 |
| 最大ストローク (mm) | 7 |
| ねじ | M10 |
| 工具サイズ (mm) | 17 |
| 電気的仕様 | |
|---|---|
| 連続電流 (A) | 300 |
| 接触抵抗Typ. (mOhm) | 0.2 |
| 連続電流 (A) 2 | 5 |
| 接触抵抗Typ. (mOhm) 2 | 20 |
| 内部接点仕様 | |
|---|---|
| 予圧 (cN) 2 | 60 |
| バネ圧 (cN) 2 | 150 |
グラフィック
Beschreibung des Produkts

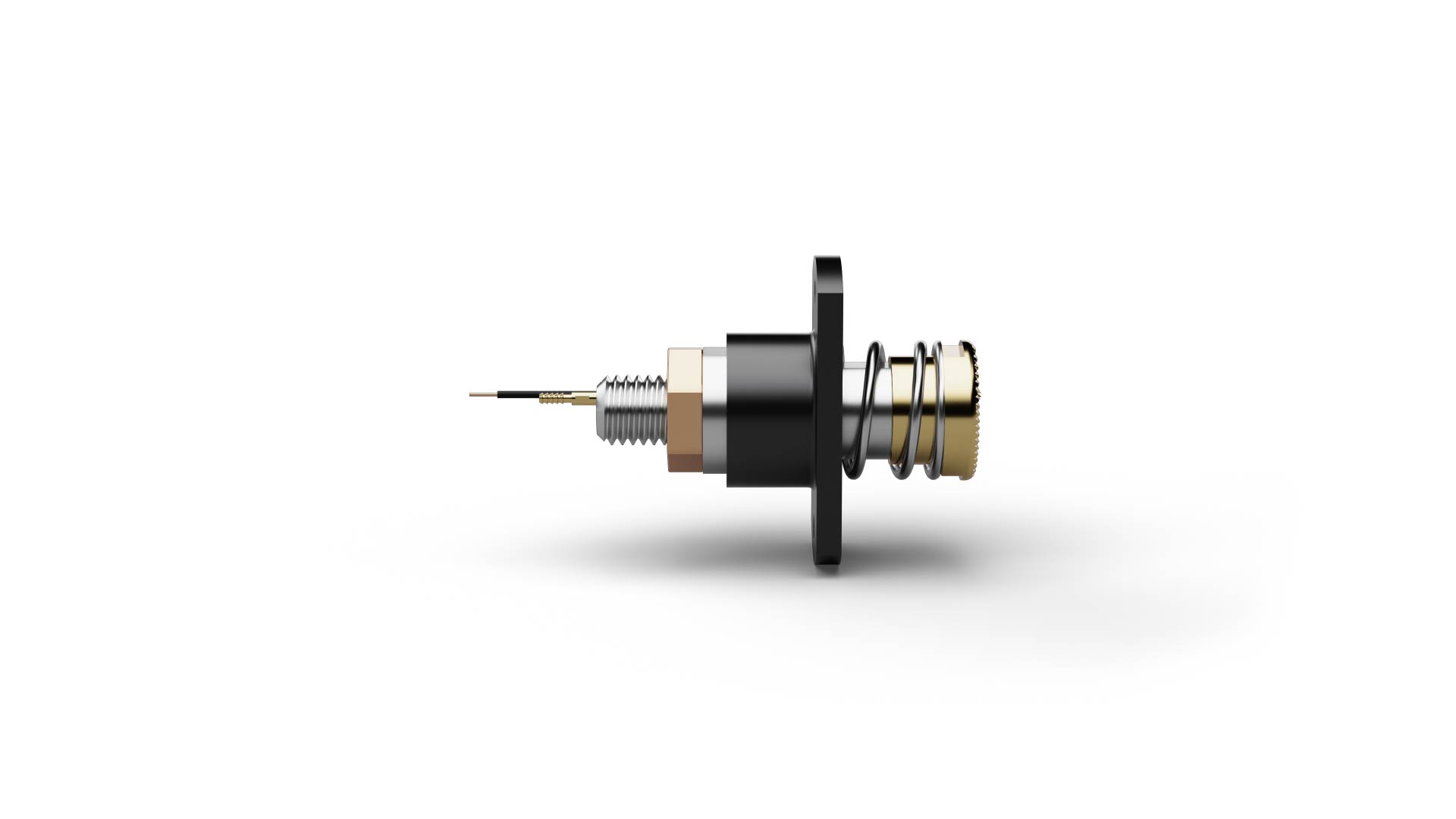

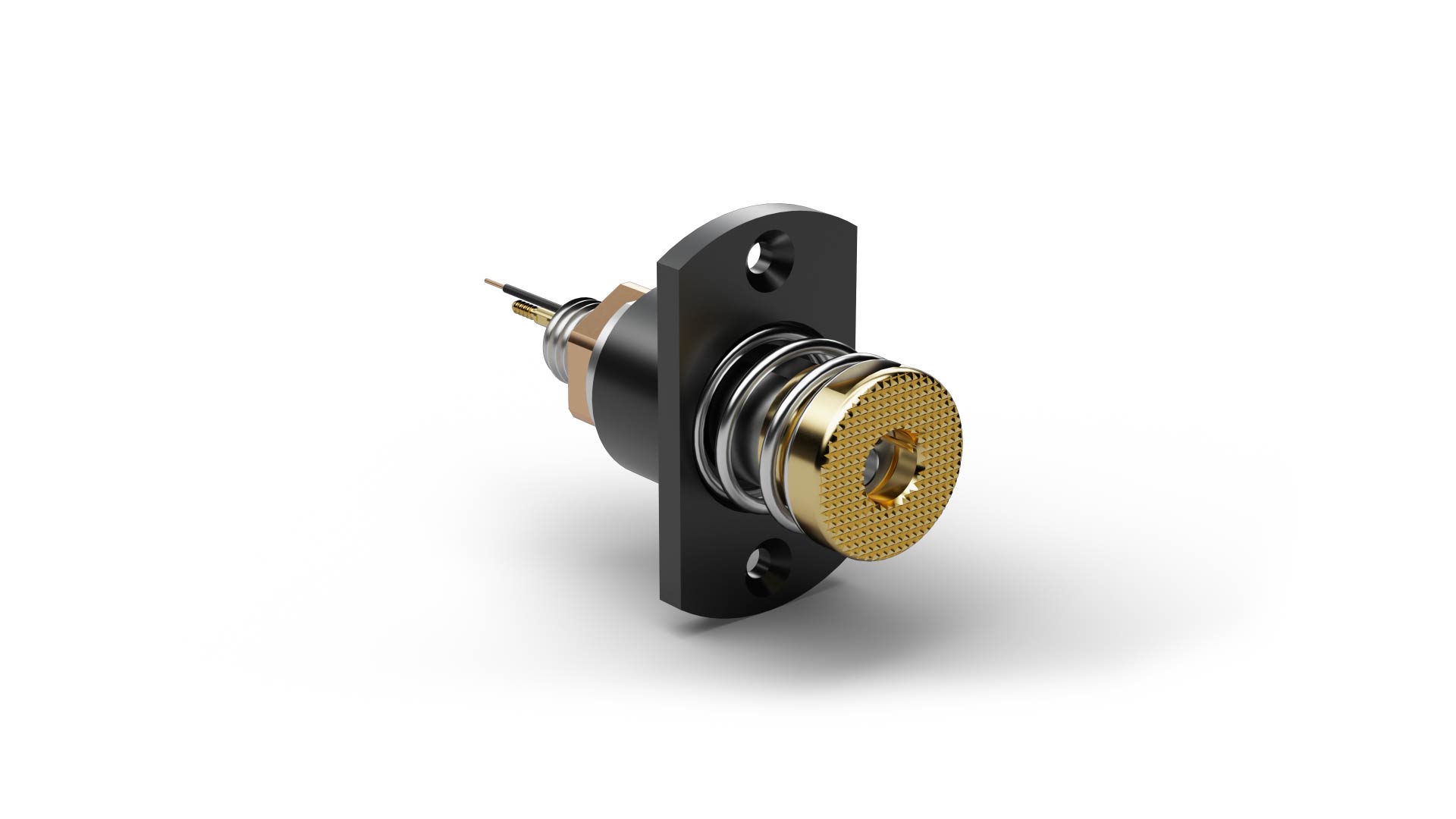

The Coaxial High Current Probe HC200B06G71CF (item number 1120150) is designed for safe transmission of high electrical currents in test and contacting applications. HC200B06G71CF focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HC200B06G71CF, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HC200B06G71CF includes battery contacting. HC200B06G71CF is rated for 300 A continuous current with a typical contact resistance of 0.2 mΩ. HC200B06G71CF operates with 7150 cN spring force and 5.6 mm nominal travel.
