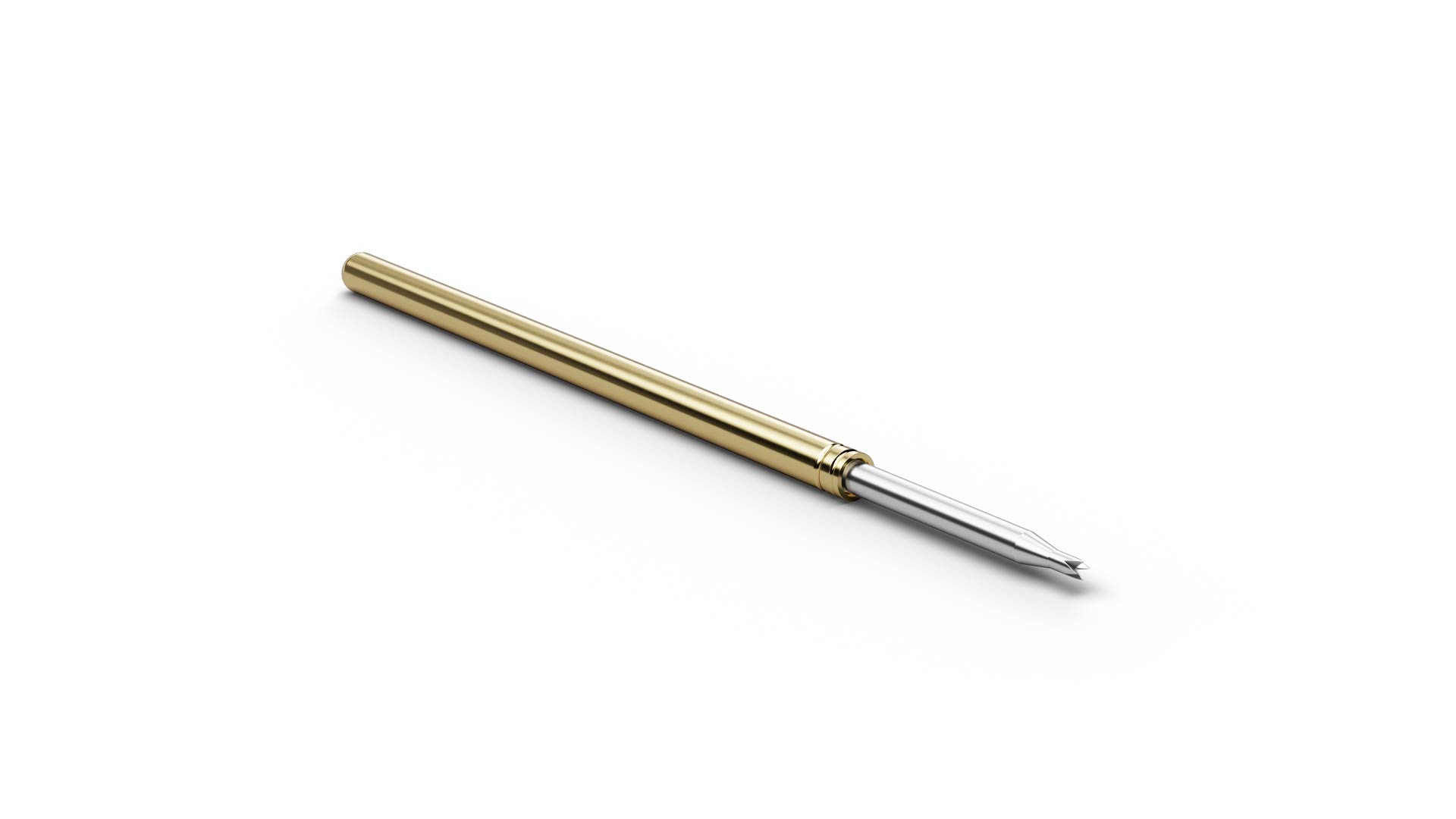

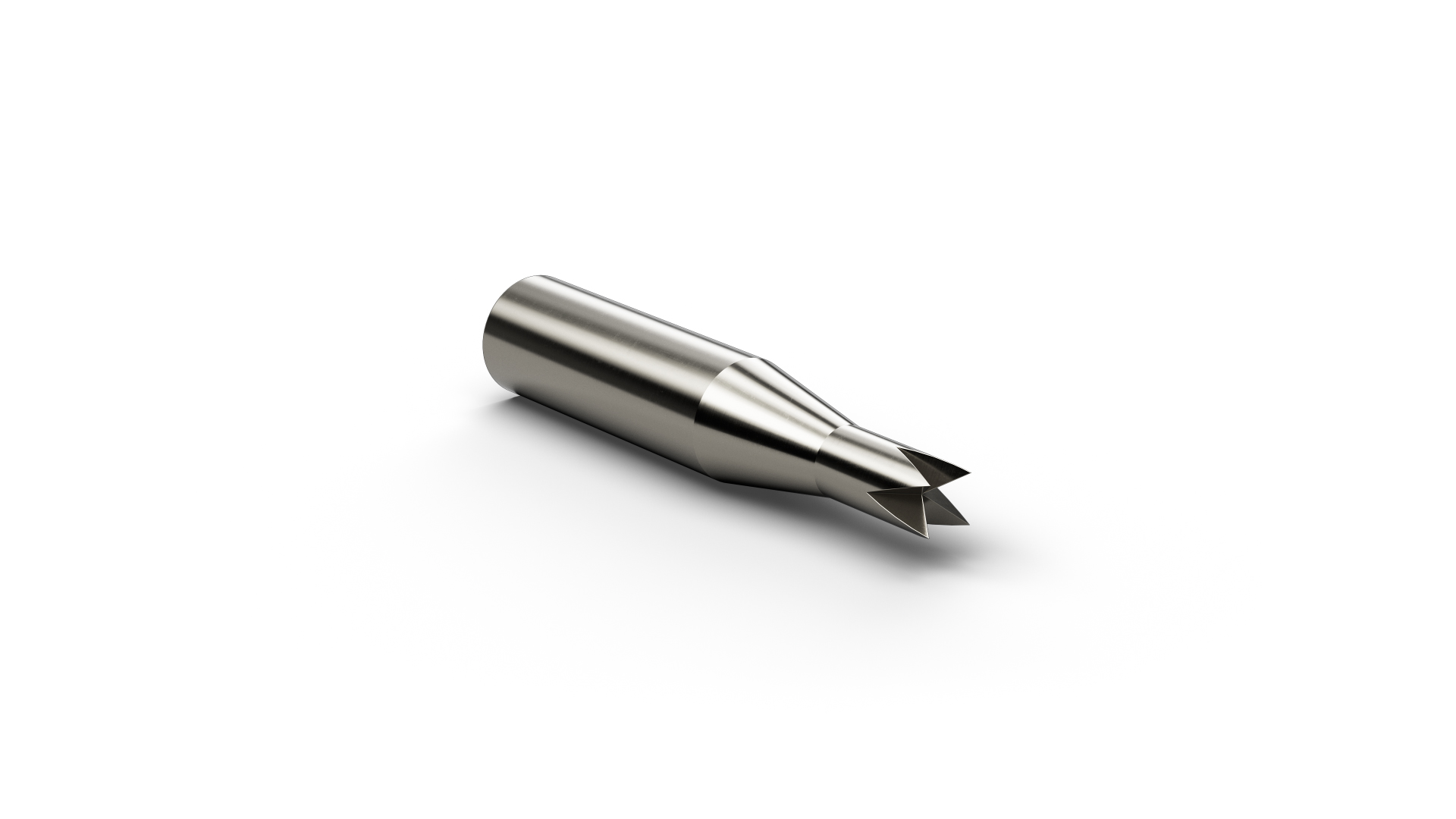

F10037S050P200HP (item number 1142415) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 37 (4-point crown stepped), F10037S050P200HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10037S050P200HP combines a pitch of 2.54 mm / 100 mil with tip style 37 (4-point crown stepped) and a tip diameter of 0.5 mm. For F10037S050P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. F10037S050P200HP is rated for 5 A continuous current with a typical contact resistance of 40 mΩ. The combination of P-Coating and HP spring preload makes F10037S050P200HP a version for contact points where residues or hard surface layers can make electrical contacting more demanding.
