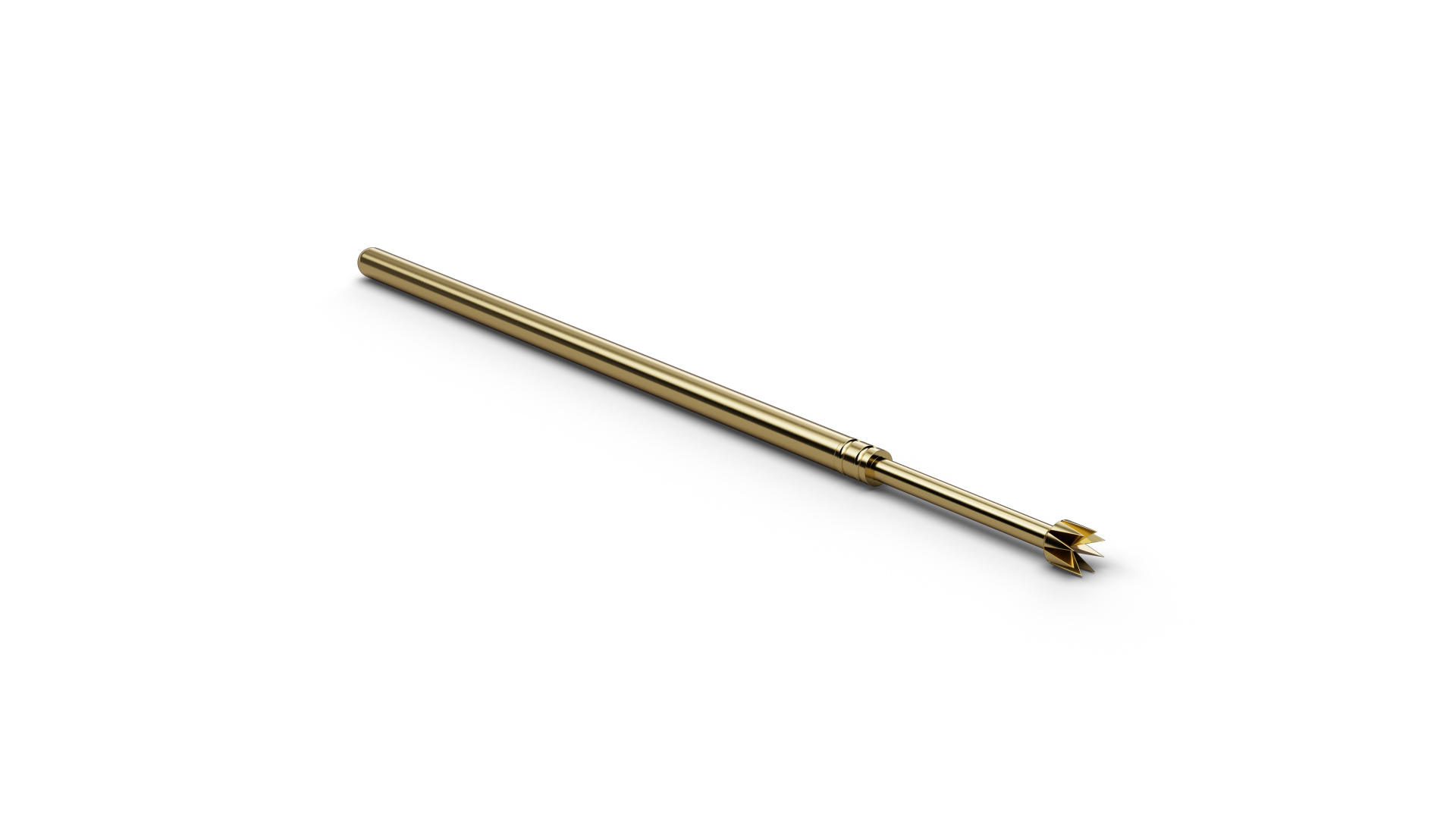

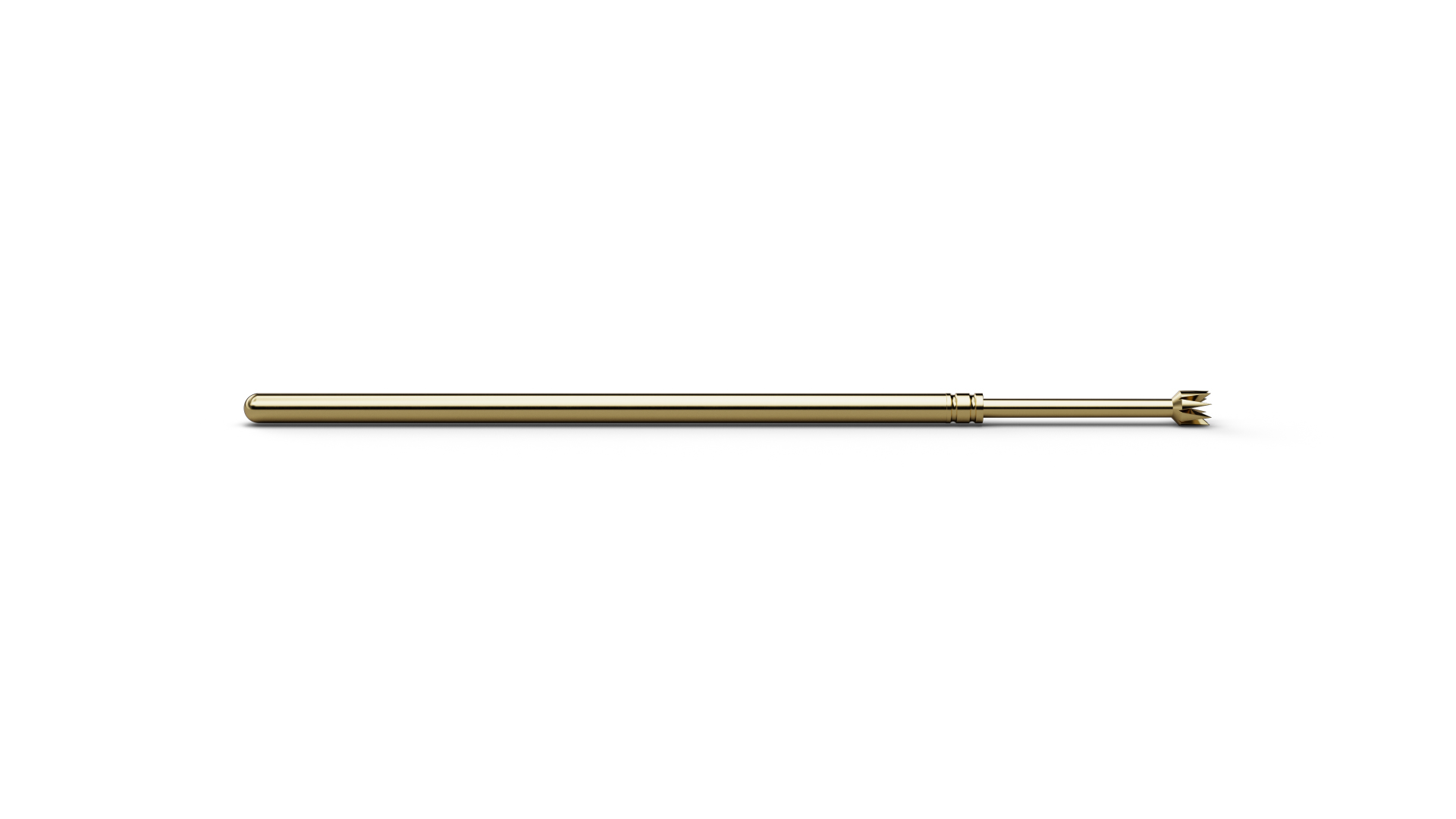

The Basic Contact Probe F07563S120P250HP (item number 1146203) is a spring-loaded probe for temporary electrical contact with test points. With tip style 63 (8-point crown stepped (self-cleaning)), F07563S120P250HP combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F07563S120P250HP combines a pitch of 1.9 mm / 75 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. For F07563S120P250HP, spring force is 250 cN at a nominal travel of 4.3 mm. F07563S120P250HP is rated for 4 A continuous current with a typical contact resistance of 40 mΩ. On F07563S120P250HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
