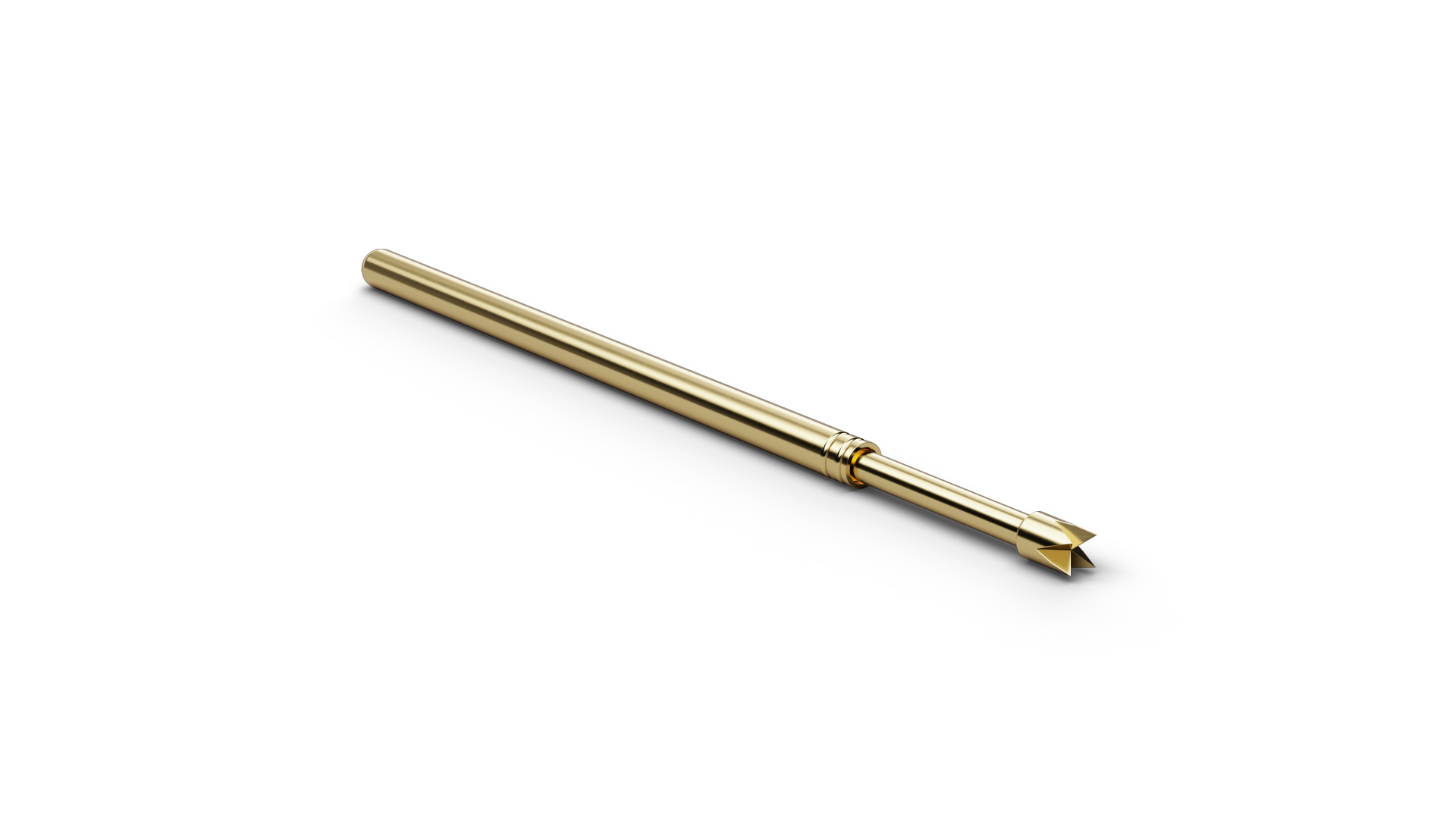

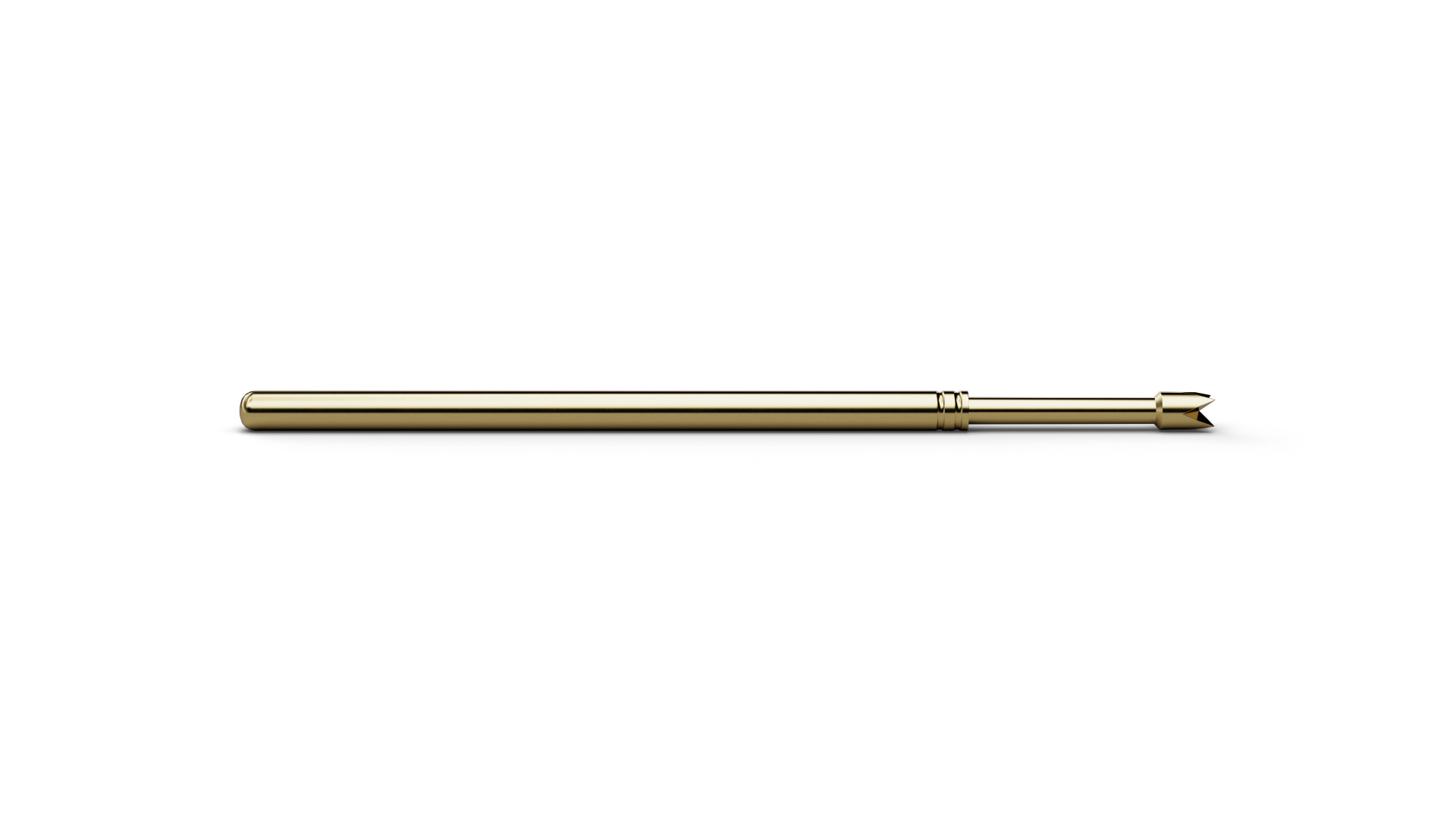

F10014S130L300HP (item number 1167843) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S130L300HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S130L300HP combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.3 mm. Spring force is 312 cN at a nominal travel of 4.3 mm. For F10014S130L300HP, the specified continuous current is 5 A.
